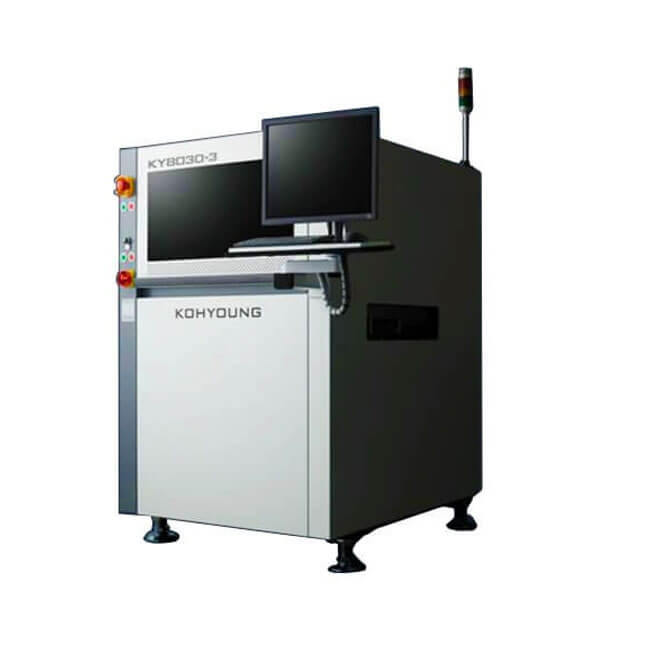

KOH YOUNG KY8030-3 3D SPI Machine
World-Fastest Full 3D Solder Paste Inspection
The industry’s fastest full 3D measuring inspection solution- Solves shadow problems by utilizing 2-way projection- Full 3D foreign material inspection for the entire PCB- Provides accurate inspection data with real-time PCB warp compensation·Full 3D data-based process optimization solution: Realization of industry 4.0 / smart factory- Realizes real-time process optimization through powerful SPC analytics- Provides a powerful printing process optimization tool·Leading model for high-speed mass production line
Must-check Requirements of 3D SPI System
Requirements
Solutions
Solution to Shadow Problem
3D Shadow Free Moiré Technology &DualProjection
Real Time PCB Warp Compensation(2D+3D Solution)
Warp Compensation(Pad Referencing+Z-tracking)
Operator User-friendliness
Renewal GUI,Real Color 3D Image
Inspection Range
Up to 2mm(optional)
Foreign Material Inspection
3D Foreign Material Inspection(optional)
Inspection Items
Metrology Capability
Volume,Area,Height,Offset,Bridging,Shape Deformity,Coplanarity
Types of Defects
Insufficient/Excessive/Missing Paste,Bridging,Shape Deformity, PasteOffset, Coplanarity
Inspection performance
Camera Resolution
10μm
15μm
20μm
FOV Size
20×20mm(0.79×0.79 inch)
30×30mm(1.18×1.18 inch)
40×40mm(1.57×1.57 inch)
Full 3D InspectionSpeed
13.7~43.5cm²/sec(Inspectionspeed varies by PCB and inspection condition.)
With High Speed Option
16.2~50.8 cm²/sec(Inspection speed varies by PCB and inspection condition.)
Min.Distance between Paste Deposit
100μm(3.94 mils)
150μm(5.91 mils)
200μm(7.87 mils)
Camera
4M Pixel Camera
Illumination
IR-RGB LED Dome Styled Illumination
Z Resolution
0.37μm
HeightAccuracy(on KY Calibration Target)
1μm
X,YAccuracy
2.5 nano meter(PZT Accuracy)
01005 Inspection Capacity Gage R&R(±50%tolerance)
< 10% at 6
Max.Inspection Size
10×10mm
0.39×0.39inch
Max.Inspection Height
400μm(2mm optional)
15.75 mils (78.74 mils optional)
Min Distance between PADs
100μm(150μm paste height)
3.94 mils(5.91 mils paste height)
Various colored PCB Inspection
Possible
M
L
DL
XL
Max.PCBSize
330X330mm
(13X13inch)
510X510mm
(20X20 inch)
Dual:510X320mm
(20X12.6inch)
Single:510X580mm
(20X22.8inch)
850X690mm
(33.4X27.1 inch)
Min.PCB Size
50X50mm
(1.97X1.97inch)
70X70mm
(2.7X2.7inch)
PCBThickness
0.4~5mm
(0.015-0.20 inch)
0.5~8mm
(0.02-0.31 inch)
Max.PCB Weight
Standard:2kg,Heavy Weight Option:5kg
10Kg(22 bs)
Machine Weght
550Kg(1212Ibs)
600Kg(1322 bs)
700Kg(1543Ibs)
850Kg(1874Ibs)
Bottom Side Cearance
50mm(1.97 inch)
Supplies
200~240VAC,50/60Hz Single Phase,5Kgf/cm²
W
820mm(32.2inch)
1000mm(39.3inch)
1350mm(53.1 inch)
D
1265mm(49.8inch)
1265mm(49.8inch)
1445mm(56.9inch)
1445mm(56.9inch)
H
1627mm(64 inch)
F
985mm(38.7 inch)
1165mm(45.8inch)
