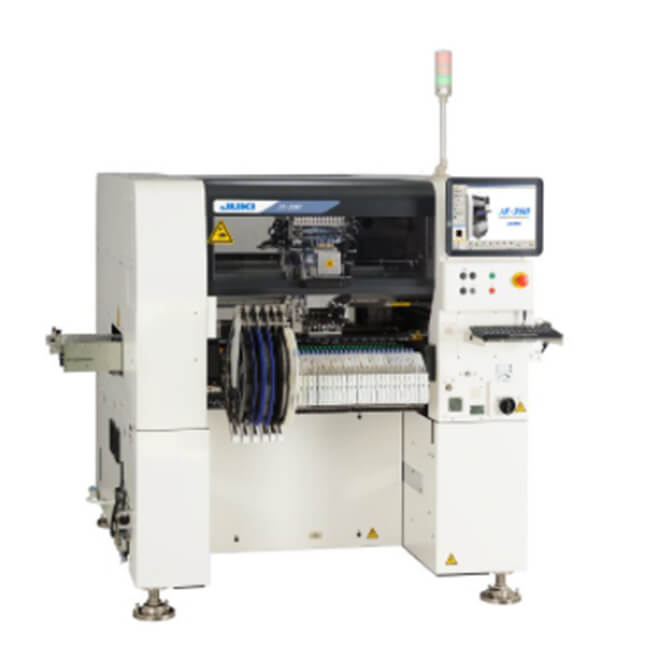

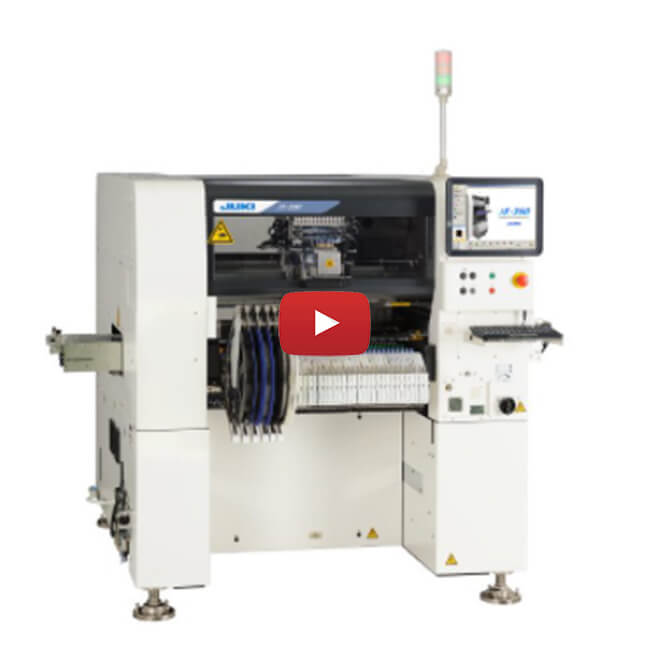

JUKI KE-3020 KE-3020R Pick and place machine

Placement Speed : 20,900 CPH
Applicable PCB :410*360mm
Applicable Part : 0402 mm (01005 inch)～□33.5 mm
Accuracy: ±0.05mm（Cpk≧1）

BASIC INFO

JUKI KE-3020 KE-3020R Pick and place machine

Flexible Mounter that Employs the Industry’s First Hybrid Feeder Specification

t is possible to jointly use electronic and mechanical tape feeders in batch exchange trolley units. Since the batch exchange trolleys and mechanical tape feeders of previous machines can be used, existing equipment assets can be effectively utilized without waste, resulting in outstanding investment efficiency.

Inherits the Flexibility of the KE Series

Due to the support for a wide range of component sizes, from 0402 chips (minimum chip component size of 0.4 x 0.2 mm) to 74 mm square components and large-sized components up to 50 x 150 mm in size, the machines can be flexibly utilized to great effect in production lines.
The chip component placement speed is 20,900CPH (0.172 sec./chip: optimum conditions), (17,100CPH conforming to IPC9850)
The IC component placement speed is 2,200CPH (an approximately 19% improvement over previous machines), (5,800CPH when using the MNVC option)

Outstanding Operability

Intuitive operation will be possible using the fully graphical operation screen and the large-sized touch panel.
Program Support Function: Allows work confirmation while displaying and checking the program work in order up to the start of production.
General Purpose Vision Teaching Function: Shows guidance of component data creation procedures for odd-shaped components in an easily understood manner.

Wide Range of Support Capabilities

With the newly added XL size circuit board specification which also enables support for large-sized LCD (liquid crystal display monitor) manufacturing, support is provided for circuit board sizes up to a maximum of 610 x 560 mm.
Flux transfer is supported. (Option)

New Options that Maintain and Improve the Manufactured Product Quality

Component Verification Function: Before production or when exchanging components, this prevents placement errors beforehand by inspecting the component capacitor sizes, resistance values, and polarities. Because six components can be checked simultaneously, this will contribute to the shortening of the time period when changing programs.
Ionizer: Neutralizes static electricity inside the mounter, and eliminates static electricity in circuit boards and components.

Energy Conservation

The electric power consumption has been greatly reduced (Approximately 25% reduction compared to previous machines).

* The KE-3020R model also incorporates a laser sensor in the IC head. This enables high-speed recognition of small-sized components using the IC head, allowing support for a wider range of components.

Board size	L size (410×360 mm)		○
	L-Wide size (510×360 mm)*1		○
	XL size (610×560 mm)		○
Component size	Laser recognition		0402 mm (01005 inch)～□33.5 mm
	Vision recognition		1.0×0.5 mm～□74 mm or 50×150 mm
Placement speed	Chip	Optimum	20,900ＣＰＨ
		IPC9850	17,100CPH
	IC		5,800CPH *2
			2,200CPH
Placement accuracy	Laser recognition		±0.05mm（Cpk≧1）
	Vision recognition		±0.03mm（Cpk≧1）
Feeder inputs			Max.80 on 8 mmT/F
