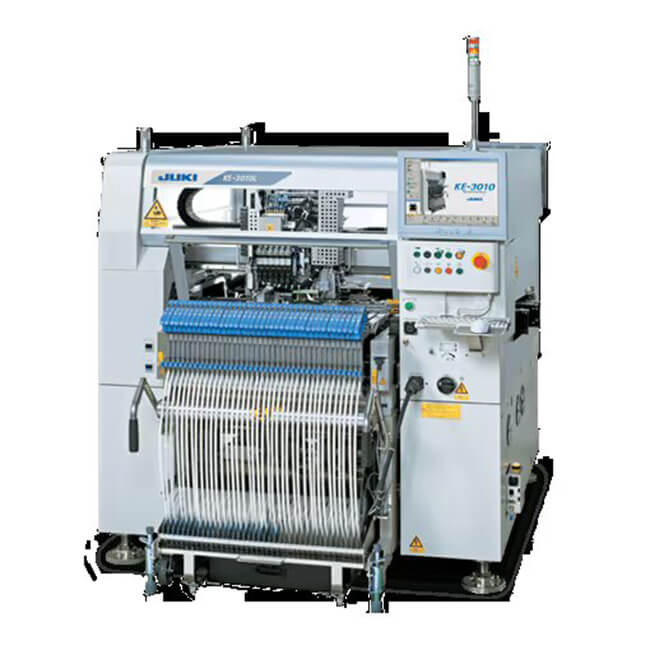

JUKI KE-3010 KE-3010A KE-3010L Pick and place machine
|
Chip |
23,500CPH chip (Laser centering / Optimum) |
|
IC |
9,000CPH (Vision centering / MNVC option) |
From 0402(01005) to 33.5mm square components
One multi-nozzle laser head (6 nozzles)
The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
High-speed, on-the-fly vision centering
(When using both high-resolution camera and MNVC. (option))
Longer sized PWB in X axis (option)
| oard size | M size (330×250mm) | yes | |
| L size (4FFF10×360mm) | yes | ||
| L-Wide size (510×360mm) *1 | yes | ||
| XL size (610×560mm) | yes | ||
| Applicability to long PWB (M size)*2 | 650×250mm | ||
| Applicability to long PWB (L size)*2 | 800×360mm | ||
| Applicability to long PWB (L-Wide size)*2 | 1,010×360mm | ||
| Applicability to long PWB (XL size)*2 | 1,210×560mm | ||
| Component height | 6mm | yes | |
| 12mm | yes | ||
| Component size | Laser recognition | 0402(01005) ~ □33.5mm | |
| Vision recognition | Standard camera |
 3mm*3 ~ □33.5mm
|
|
| High-resolution camera |
 1.0×0.5mm*4 ~ □20mm
|
||
| Placement speed | Chip | Optimum | 23,500CPH |
| IPC9850 | 18,500CPH | ||
| IC *5 |
 9,000CPH *6
|
||
| Placement accuracy | Laser recognition | ±0.05 mm (±3σ) | |
| Vision recognition | ±0.04mm | ||
| Feeder inputs | Max.160 in case of 8mm tape | ||
| (on a Electric double tape feeder)*7 | |||
*2 Applicability to long PWB is optional.
*3 When using MNVC. (option)
*4 KE-3010A ： When using both high-resolution camera and MNVC. (option)
*5 Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
*6 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
MNVC is option in the KE-3010A.
*7 When using Electric double tape feeder EF08HD.
* PWB size XL will be KE-3010
