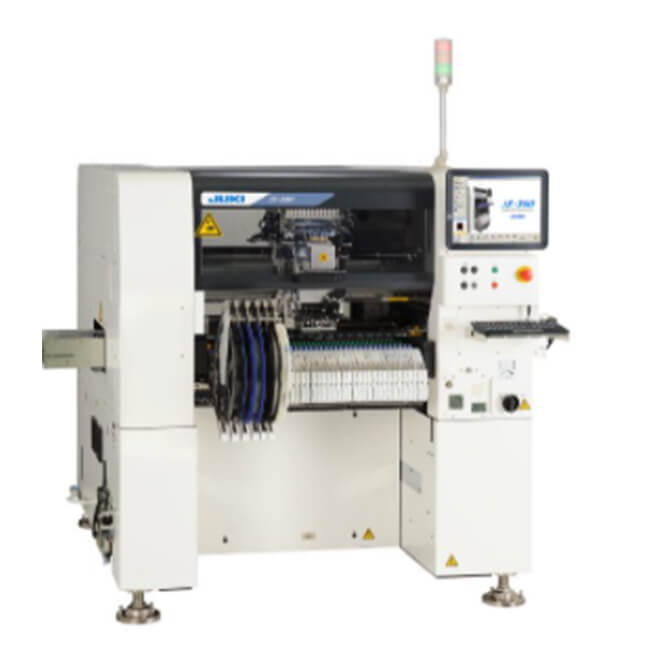

JUKI KE-2080E Pick and place machine

Placement Speed :20,200 CPH
Applicable PCB :510*460mm
Applicable Part : 0402(01005) ~ □33.5mm
Accuracy: ±0.05mm（Cpk≧1）

BASIC INFO

JUKI KE-2080E Pick and place machine

The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form,all at industry leading accuracy and speed.

Chip
20,200CPH（laser centering/Optimum）（0.178Sec./chip)
16,700CPH（laser centering/IPC9850）

IC
1,850CPH (vision centering / effective tact)
4,860CPH with MNVC option.

One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)

From 0402 (01005) to 74mm square components or 50×150mm

Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)

※1 Actual throughput may vary.
※2 Please download brochure for details.

Board size	M size (330×250mm)		○
	L size (410×360mm)		○
	L-Wide size(510×360mm) (option)		○
	E size (510×460mm)*1		○
Component size	Laser recognition		0402 (01005)～33.5mm
	Vision recognition	Standard camera	□3mm～□74mm or 50×150mm
		High-resolution camera (option)	1.0×0.5mm*3～□48mm or 24×72mm
Placement speed	Chip	Optimum	0.178Sec./chip(20,200CPH)
		IPC9850	16,700CPH
	IC*4		1,850CPH
			4,860CPH*5
Placement accuracy	Laser recognition		±0.05mm（Cpk≧1）
	Vision recognition		±0.03mm (±0.04mm when using MNVC)
Feeder inputs			Max. 80 on 8mm T/F*6

*1 Please ask for details on E size board.

*2 When using MNVC. (option)

*3 When using high-resolution camera. (option)

*4 Effective tact: The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board.
(CPH=number of components placed for one hour)

*5 Estimated value when using MNVC (option) and picking up components simultaneous with all nozzles.

*6 Including matrix tray changer, max 110.
