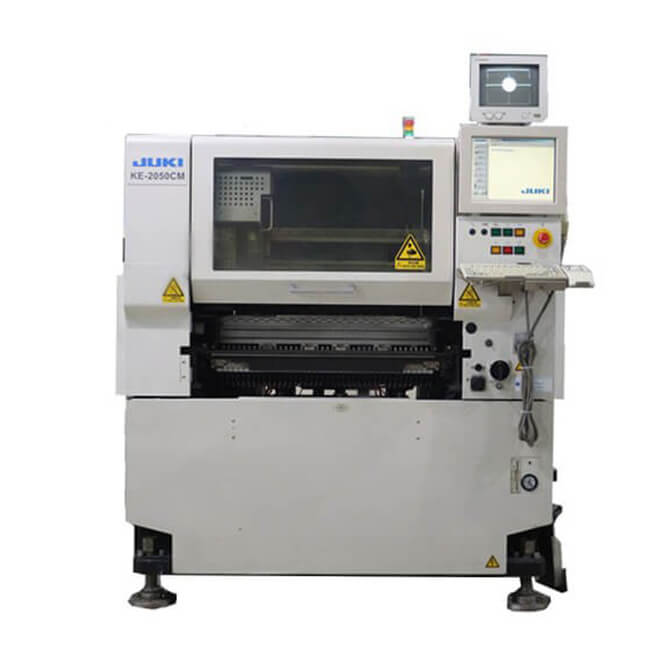

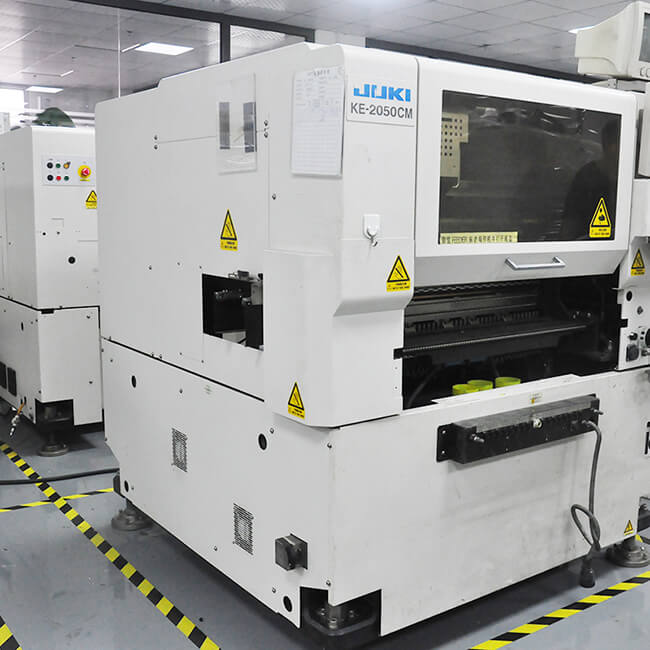

JUKI KE-2050M Pick and place machine
- The best system for high-speed placement of small components. As part of a “modular concept”, the KE-2050 can be the base of a flexible placement system line designed specifically to meet the required production volume.
- 13,200CPH; chip (effective tact)
- 1 multi-nozzle laser head (4 nozzles)
- from 0603(0201) to 26.5 × 11mm or 20mm square component 0402(01005) option factory installed.
|
Model |
KE 2050M |
|
Board size |
(330×250mm) |
|
Component height |
6MM |
|
Laser recognition |
0603(0201) ~20×20mm or 26.5×11mm |
|
Placement speed |
13200CPH |
|
Direction |
Left to Right |
|
Feeder inputs |
Max. 80 on 8mmT/F(※7) |
|
Power supply |
200 to 415 VAC, 3-phase |
|
Apparent power |
3kVA |
|
Operating air pressure |
0.49±0.05Mpa |
|
Air consumption |
403L/min (Opt.:Vacuum Pump 50L/min) |
|
Component package |
Tape (8, 12, 16, 24, 32, 32(adhesive), 44, 56, 72mm) / Stick / Bulk / Tray |
|
Weight |
1,400kg |
|
Air consumption (in the standard condition) |
230L/min. |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
