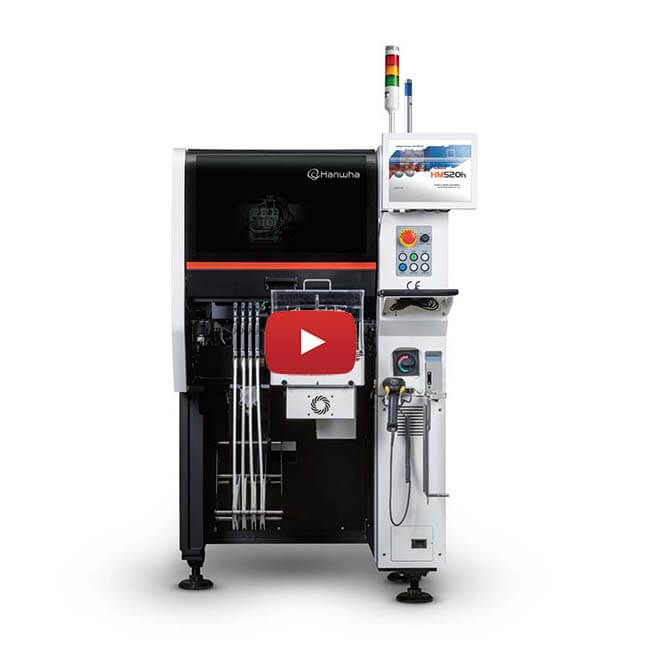

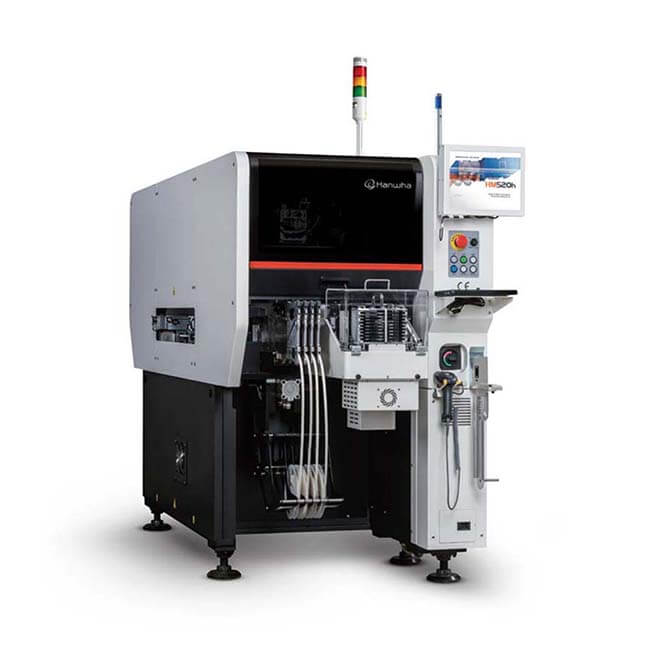

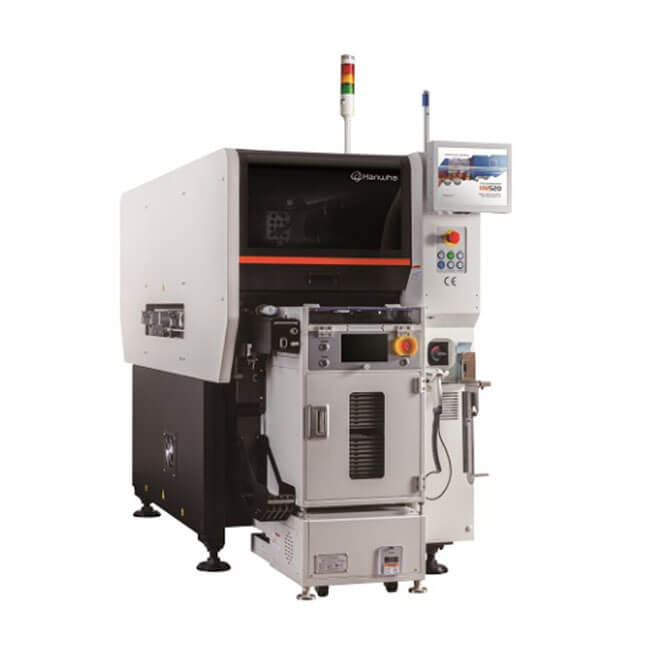

Hanwha HM520 MF Pick and Place Machine
Number of Heads：Double Gantry 6 Heads (12 total)
Placement Speed：60,000 CPH (Vision Optimum)
Placement Accuracy：Chip: ±25µm Cpk ≥ 1.0/IC：±30µm Cpk ≥ 1.0 Chip
Dimensione：0402 - 55m
Max Height：15mm
PCB Dimension (mm)-Single：- 50 x 40 - 510 x 580mm (Standard)/- 50 x 40 - 750 x 580mm (Option)
PCB Dimension (mm)-Double：- 510 x 310mm (Standard)/- 750x330mm (Option)
PCB Thickness (mm)：0.3 - 4.2
Feeder Capacity (8mm standard)：80ea (8mm Docking Cart)
Power：AC200/208/220/240/380/41SV±10% 3phase S0/60Hz
Weight：1,605kg
External Dimension (LxDxH mm)：890x2,312x1,921
| MACHINE TYPE | High Speed Machine | LED Machine | Multi Function Machin |
| THE NUMBER OF SPINDLES | 20 spindles x 2 Gantry | 20 spindles x 2 Gantry | 6 spindles x 2 Gantry |
| (Rotary Type) | (Rotary Type) | (Piano Type) | |
| PLACEMENT SPEED | 80,000 CPH (Optimum) | 80,000 CPH (Optimum) | 60,000 CPH (Optimum) |
| PLACEMENT | ±25 μm @ Cpk ≥ 1.0 (Chip) | ±25 μm @ Cpk ≥ 1.0 (Chip) | ±40 μm @ Cpk ≥ 1.0 (Chip) |
| ACCURACY | ±30 μm @ Cpk ≥ 1.0 (IC) | ||
| COMPONENT RANGE | 0201 ~ □ 6 mm (H2mm) | 0201 ~ □ 6 mm(H2mm) | 0201 ~ □ 6 mm (H15mm) |
| PCB SIZE (MM) | 510 x 580(Single Lane) | 510 x 580(Single Lane) | 510 x 580(Single Lane) |
| 510 x 310(Dual Lane) | 510 x 310(Dual Lane) | 510 x 310(Dual Lane) | |
| Max. 750 x 580,750 x 310 (Option) | Max. 750 x 580,750 x 310 (Option) | Max. 750 x 580,750 x 310 (Option) | |
| PCB THICKNESS (MM) | 0.3 ~ 4.2 | 1.0 ~ 4.2 | 0.3 ~ 4.2 |
| FEEDER CAPACITY | 80 ea (Docking Cart) | 8 ea (Fixed Base) | 80 ea (Docking Cart) |
| (8 MM STANDARD) | |||
| WEIGHT (KG) | Approx. 1,605 | Approx. 1,605 | Approx. 1,605 |
| EXTERNAL DIMENSION (MM) | L890 x D2,312 x H1,921 | L890 x D2,312 x H1,921 | L890 x D2,312 x H1,921 |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
