Hanwha Decan S2 Pick and place machine

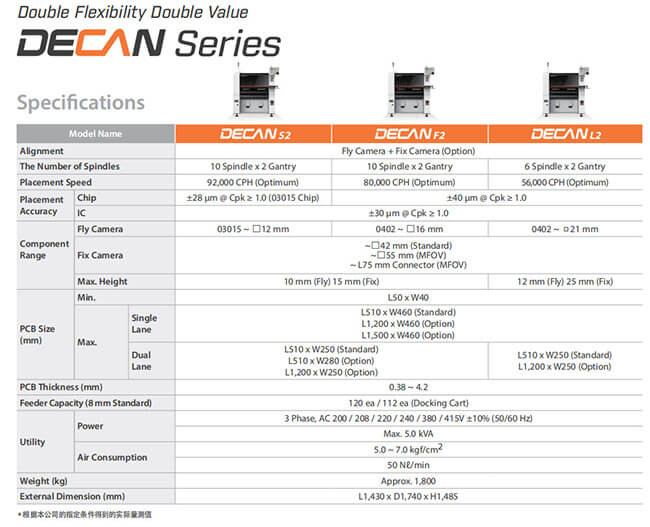

Alignment：Fly Camera, Fix Camera
Spindle & Speed：2 Gantry * 10 Spindle / 92,000 CPH
Accuracy：±28 μm @ Cpk ≥ 1.0 (03015 Chip) / ±25 μm @ Cpk ≥ 1.0(IC)
Component Range：Fly: 03015 ~ □12 mm / Fix: ~□42 mm (Standard) / ~□55 mm (MFOV) / ~ L75 mm Connector

BASIC INFO

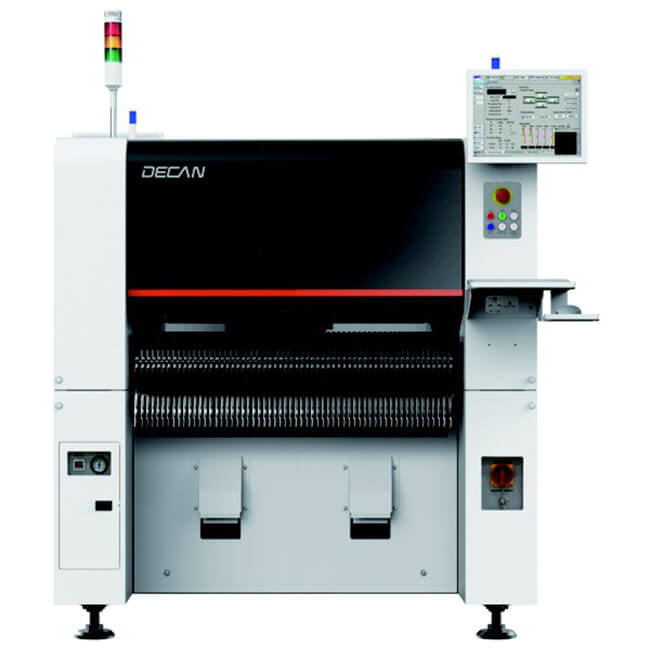

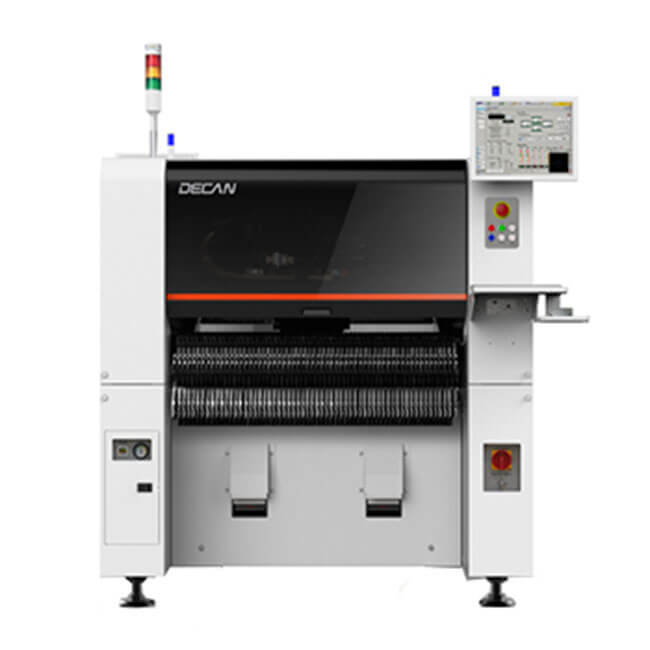

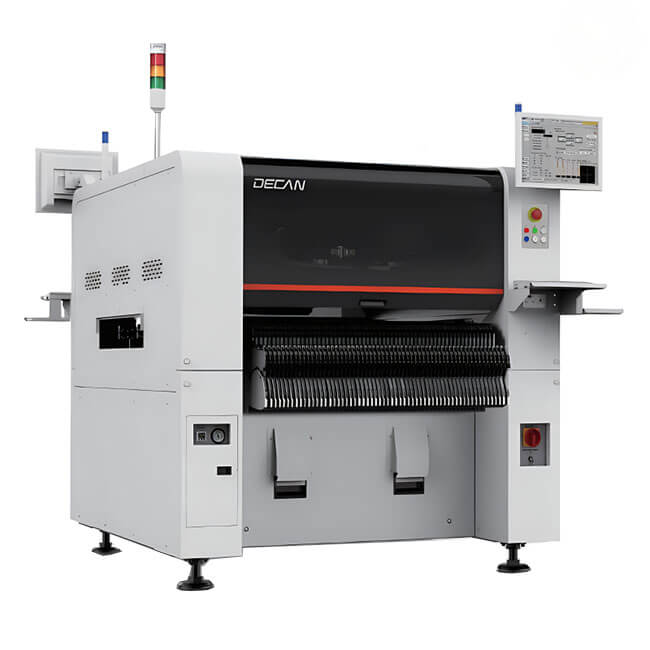

Hanwha Decan S2 Pick and place machine

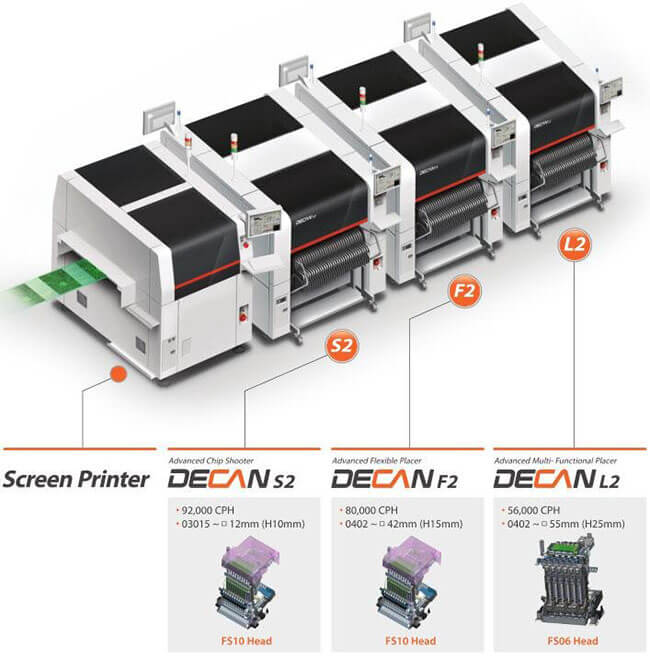

The Hanwha DECAN S2 Pick and place machineis a new model in the DECAN range from Hanwha Techwin. Due to todays technology getting smaller and more compact, the demand for more accurate and repeatable machines has driven the development of the NEW DECAN S2

Capable of placing 03015 components with Placement Accuracy of ±25µ@3σ/QFP, ±28µ@3σ/03015 Chip

Another development is the conveyor option improvements allowing placement of PCB's up to 1200mm x 460mm (optional)

Features:

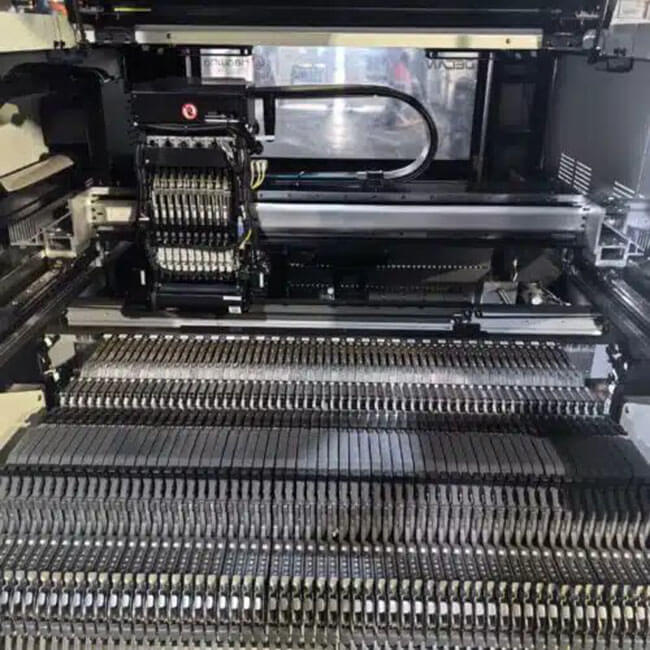

Fast Electric Feeders which automatically adjust their pocket positions for ultimate synchronised picking
Front and back operation as standard
Large PCB Size of up to 1200mm x 460mm
03015 component recognition as standard
120 x 8mm Feeder Capacity
High Accuracy ±25µ@3σ/QFP, ±28µ@3σ/03015 Chip
Small Footprint of just 1430mm x 1740mm x 1485mm
5KVA Max Power
