  •  Hanwha SM471 PLUS Pick and place machine
  •  Hanwha SM471 PLUS Pick and place machine
  •  Hanwha SM471 PLUS Pick and place machine
Hanwha SM471 PLUS Pick and place machine  Hanwha SM471 PLUS Pick and place machine  Hanwha SM471 PLUS Pick and place machine

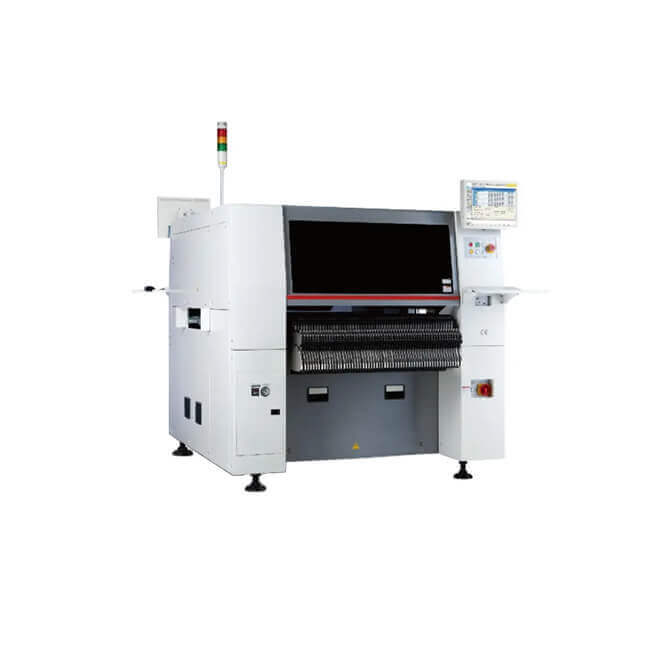

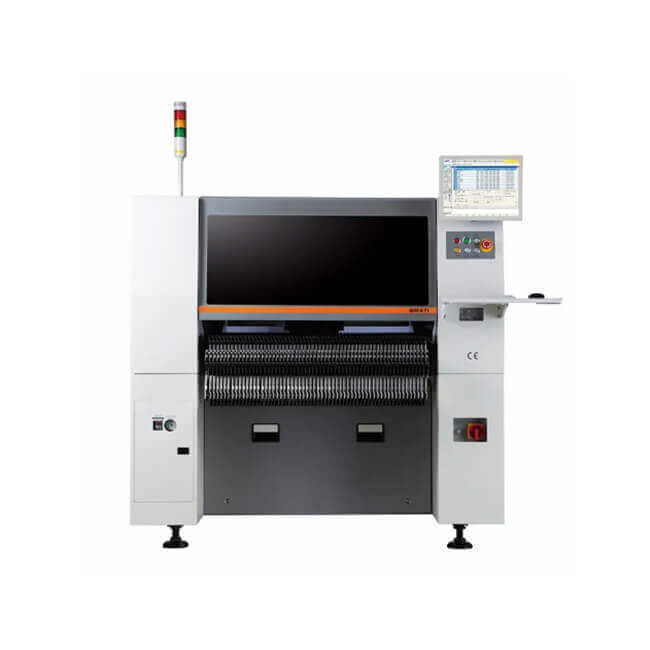

Hanwha SM471 PLUS Pick and place machine

  • Placement Speed : 78,000 CPH
  • Applicable PCB : 510*460mm
  • Applicable Part : 0402 (01005 inch)~14mm (H12mm)
  • Feede : 120*8mm Feeder Capacity
BASIC INFO

Hanwha SM471 PLUS Pick and place machine

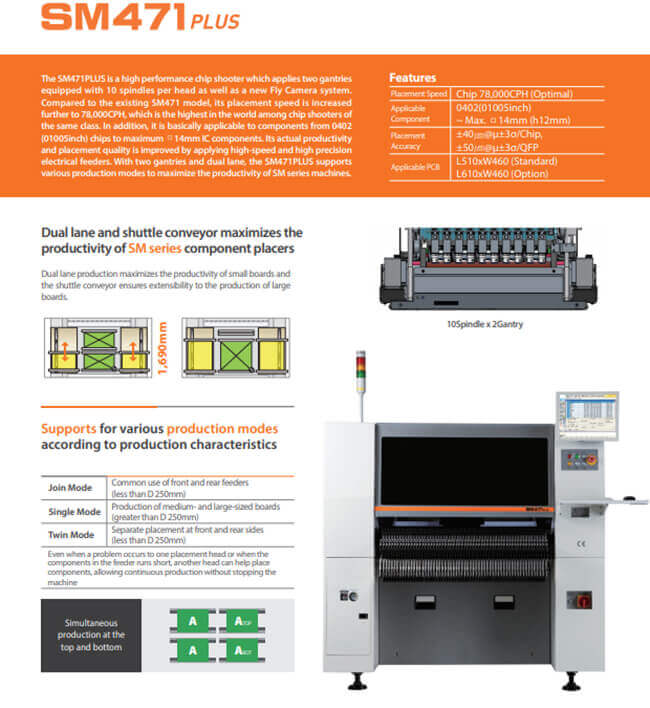

The SM471 PLUS is a high performance chip shooter which applies two gantries equipped with 10 spindles per head as well as a new Fly Camera system.

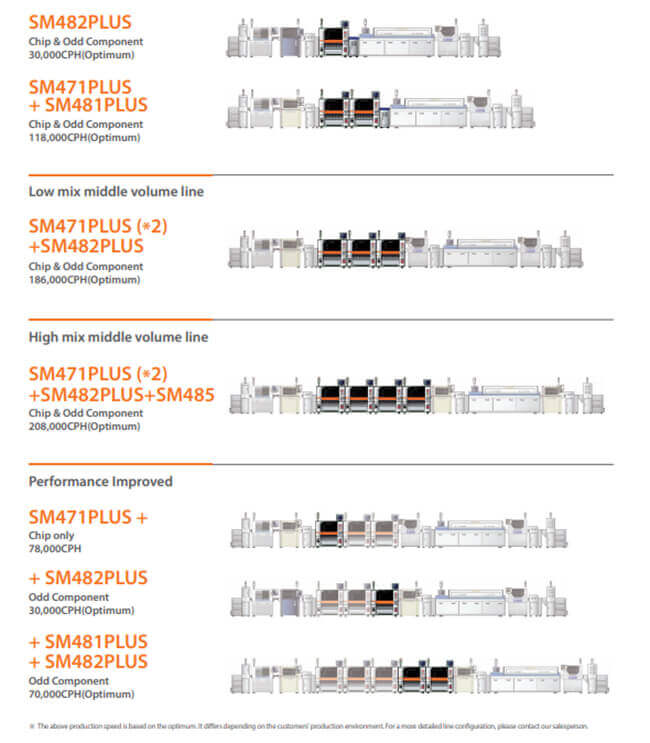

Compared to the existing SM471 model, its placement speed is increased further to 78,000CPH, which is the highest in the world among chip shooters of the same class. In addition, it is basically applicable to components from 0402 (01005inch) chips to maximum □14mm IC components. Its actual productivity and placement quality is improved by applying high-speed and high precision electrical feeders. With two gantries and dual lane, the SM471PLUS supports various production modes to maximize the productivity of SM series machines.

Model SM471PLUS SM481PLUS SM482PLUS
Numbers of Spindles 10 Spindles × 2 Gantry 10 Spindles × 1 Gantry 6 Spindles × 1 Gantry
Placement Speed 78000CPH(Optimum) 40000CPH(Optimum) 30000CPH(Optimum)
Placement Accuracy ±50μm@μ±3σ ±30μm@μ±3σ ±30μm@μ±3σ
Applicable Parts 0402 ~ 14mm(H 12mm) 0402 ~ 42mm(H15mm) 0402 ~ 55mm(H 15mm)
Applicable PCB Max. 510(L) x 460(W)(Standard) Max. 460(L) x400(W)(Standard) Max. 460(L) x400(W)(Standard)
Max. 610(L) x 460(W)(Option) Max. 1500(L) x 460(W)(Option) Max. 1200(L) x 510(W)(Option)
Dimension(mm) 1650×1690×1458 1650×1680×1530 1650×1680×1458

SMT Pick and place machine Brand

Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production LineSMT Pick and place machineSMT Stencil PrinterSMT Inspection equipmentSMT Weling equipmentSMT Intelligent Storage SystemSMT Automatic Insertion MachineSMT Peripheral EquipmentSMT FeedersSMT NozzlesSMT Spare Parts etc any kind SMT machines you may need, please contact us for more information:  WeChat: +8613714564591  Email: sales@efsmt.com

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free training,There are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first,  and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
