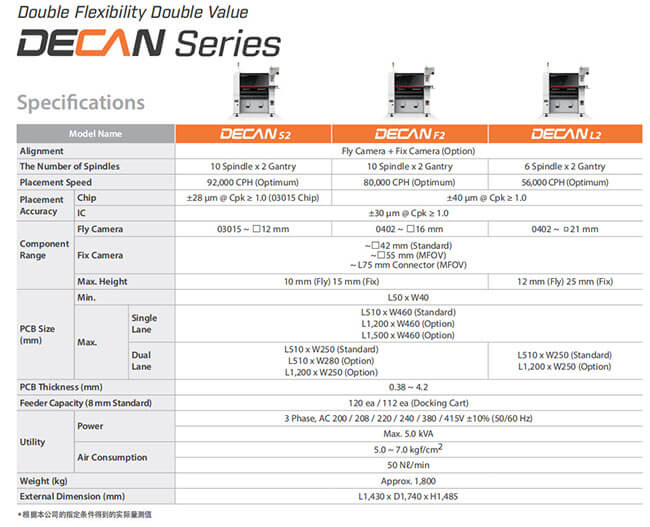

▶ Speed : 56,000 CPH (Optimum)
▶ Structure : 2 Gantry x 6 Spindles/Head
▶ Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
                     ±30μm Cpk≥1.0 (IC)
▶ Parts Size : 0402~□55mm, L75 (H25mm)
▶ PCB Size : L510xW460mm (Standard)
                     L1,200xW460mm (Option)
▶ Wide Part Handling Capability
▶ Various PCB Transfer Systems
▶ Verified Production History Management Solution

 High Speed Placement

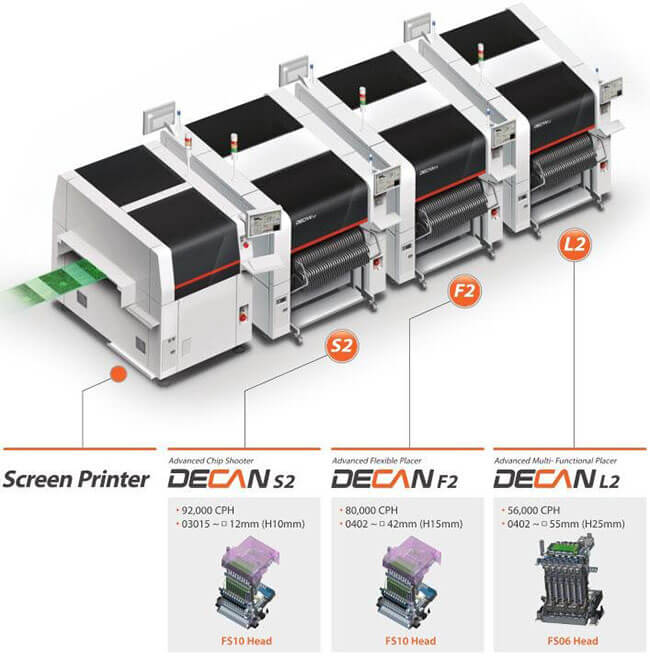

■ Optimal line configuration from chips to uniquely-shaped components according to options setup

Equipment capable of responding to large-scale PCBs, which can be remodeled on site

    ■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling

     – Responsive to a maximum 1,200 x 460mm PCB

Responsive to uniquely-shaped components (including tray components)

    ■ Responsive to a maximum 52mm(H25mm) IC when the stage vision option is applied

    ■ LED & LED lens placement with LED flipped & lens protrusions cognition

EASY OPERATION

Strengthened equipment software operation convenience

    ■ Convenient production and editing of work programs with built-in equipment optimization software

    ■ Provision of a range of work data and information on a large-scale LCD screen

High-precision, convenient electric feeder

    ■ Calibration and maintenance-free electric feeder

    ■ Improved work convenience with a single reel bank mounted feeder

    ■ Improved productivity through the provision of  automatic parts pick-up position alignment between feeders

Reduced work load through parts connection automation (smart feeder)

    ■ Automatic loading and splicing capabilities implemented as an industry first

     – Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually

    ■ Zero consumables costs for parts connection attained

 ■ Optimal line configuration from chips to uniquely-shaped components according to options setup

Equipment capable of responding to large-scale PCBs, which can be remodeled on site

    ■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling

     – Responsive to a maximum 1,200 x 460mm PCB

Responsive to uniquely-shaped components (including tray components)

    ■ Responsive to a maximum 52mm(H25mm) IC when the stage vision option is applied

    ■ LED & LED lens placement with LED flipped & lens protrusions cognition

EASY OPERATION

Strengthened equipment software operation convenience

    ■ Convenient production and editing of work programs with built-in equipment optimization software

    ■ Provision of a range of work data and information on a large-scale LCD screen

High-precision, convenient electric feeder

    ■ Calibration and maintenance-free electric feeder

    ■ Improved work convenience with a single reel bank mounted feeder

    ■ Improved productivity through the provision of  automatic parts pick-up position alignment between feeders

Reduced work load through parts connection automation (smart feeder)

    ■ Automatic loading and splicing capabilities implemented as an industry first

     – Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually

    ■ Zero consumables costs for parts connection attained
