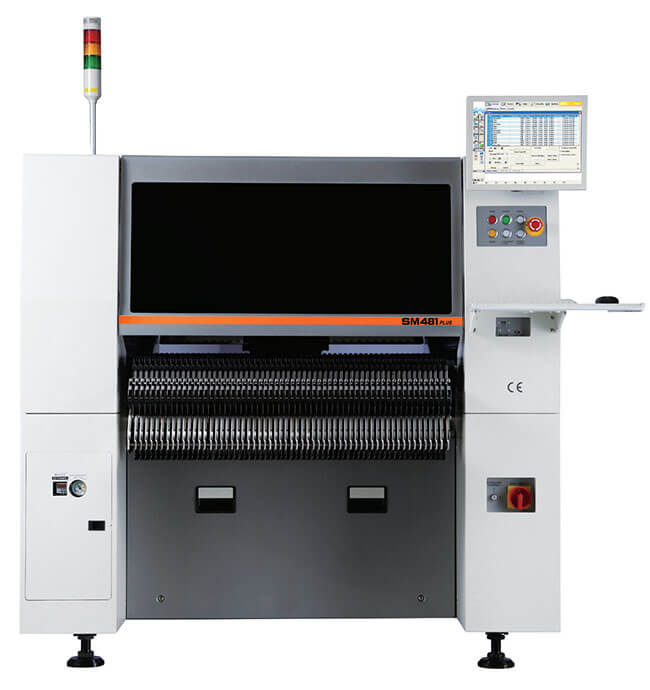

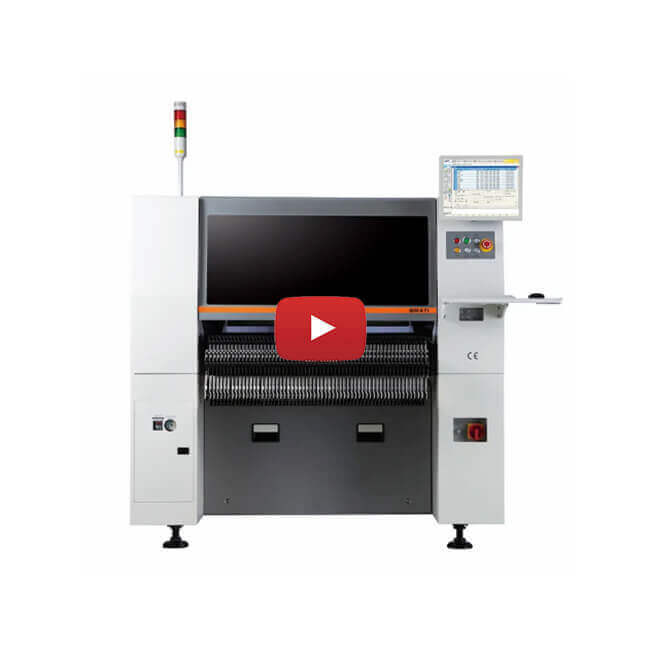

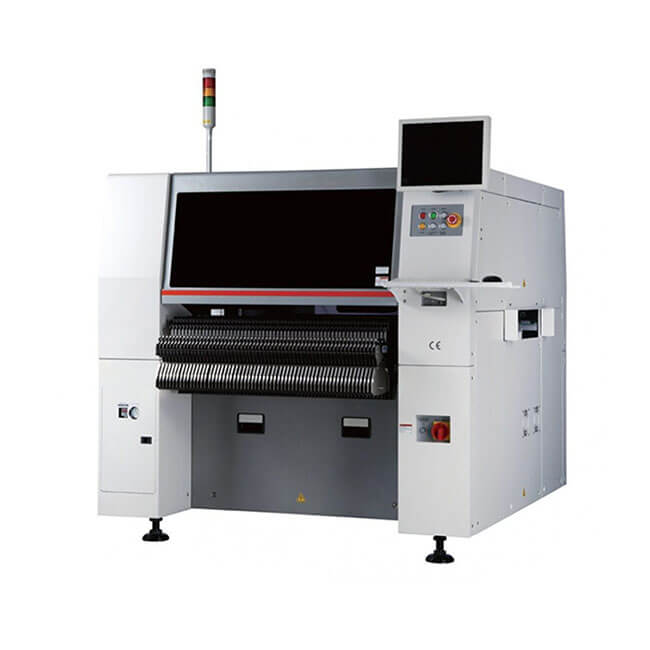

Hanwha SM481 Plus Pick and Place Machine

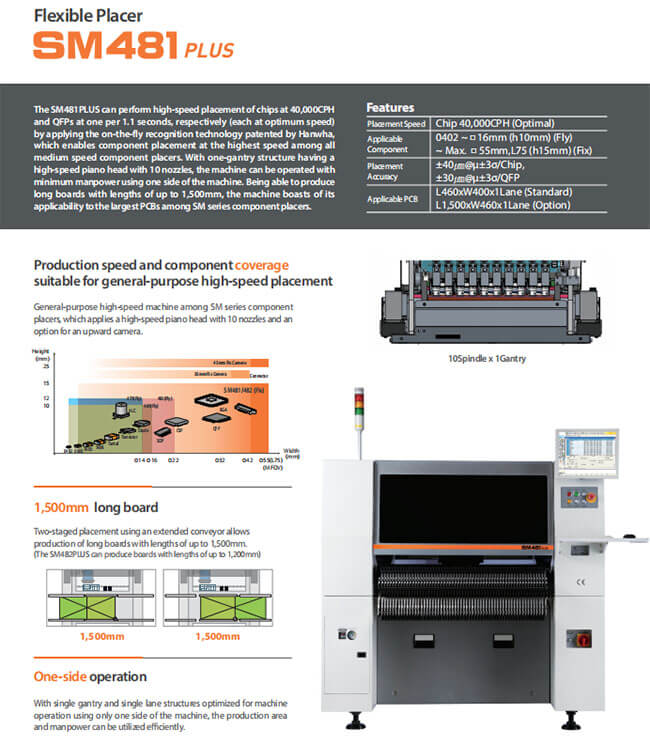

Features: New flying head structure and optimization of suction/placement actions for 10 Spindles
• Highest placement speed in its real class
• Placement accuracy correction system (suction position correction, head correction, track correction, etc.)
• Can mount 0402~□16mm (H=10mm), for the production of long boards for LEDs and displays
• Compatible with MAX.740(L)×460(W) PCB (option)
• NEW The vacuum system and suction/placement mode are optimized, and the function of automatic alignment of the suction position
• Through the vacuum pump, the suction is stable and the consumption of air pressure is minimized
• Applicable to electric feeder, improving actual productivity and placement quality
• And it can be shared with SM pneumatic feeder to solve customer's convenience

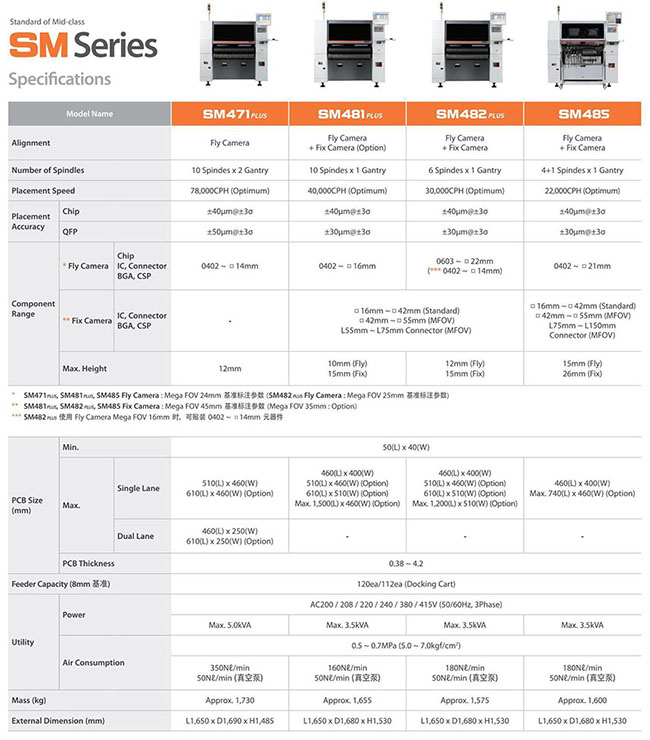

• Parameters: Up to 120 8mm feeders (Docking Cart) can be accommodated
10 Shaft*1 Cantilever
• Mounting speed: 40,000CPH (excellent conditions)
• Mounting accuracy: ±50um@u+3ò/Chip, ±30um@u+3ò/QFP
• Component size: Chip 0402~ 16mm IC(H 10mm)
• Substrate size (single rail): 50(L)*40(W)~460(L)*400(W)
• PCB thickness: 0.38mm~4.2mm
• Power supply: AC200/208/220/240/380/415V(50/60Hz,3Phase)Max.4.7kva
• Air pressure: 0.5~0.7Mpa (5-7kgf/c㎡) 160nl/min
• Weight: about 1655KG
• Equipment size: 1650(L)*1680(D)*1530(H)
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: + 8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
