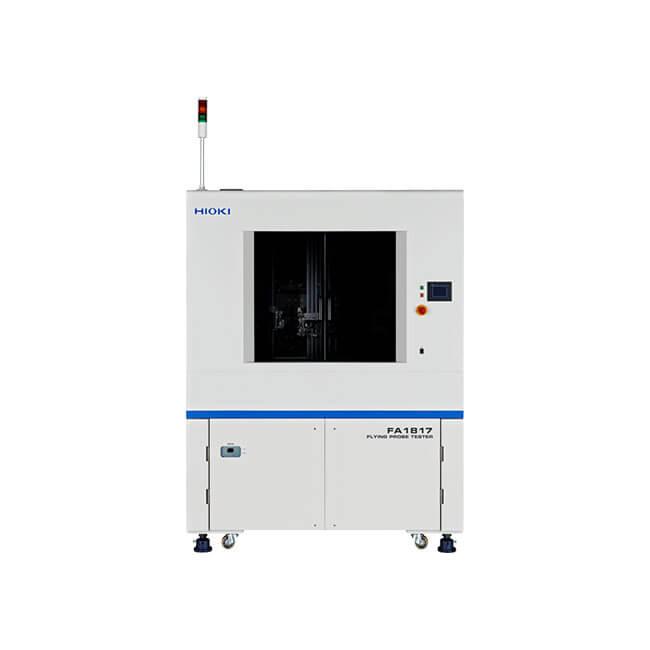

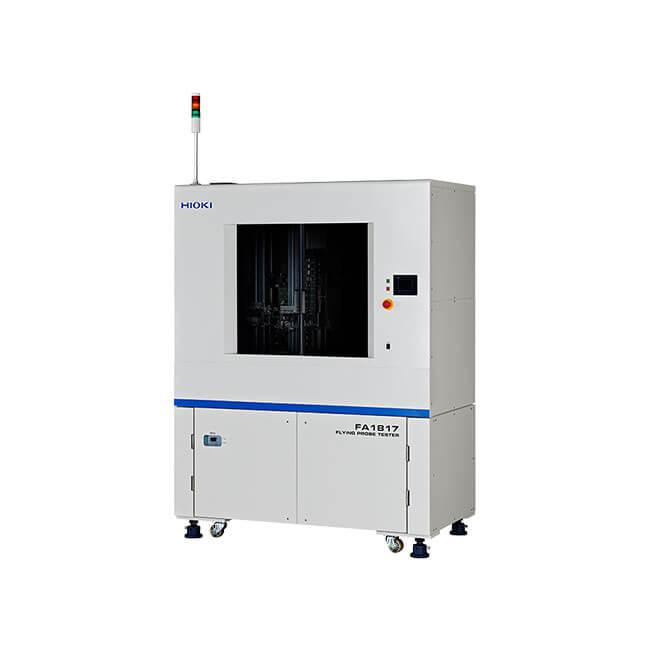

HIOKI FA1817 Flying Probe Tester

Number of test steps：999,999 steps
Judgment range：-99.9% to +999.9% or absolute value
Measurement speed：Max. 67 points/sec. (0.15 mm movements, 4-arm simultaneous probing, capacitance measurement)
Minimum pad pitch：45 μm (with CP1075-09)

BASIC INFO

HIOKI FA1817 Flying Probe Tester

Detect Latent Defects on High-Density Printed Wiring Boards with Absolute Reliability

The FA1817 is a fixtureless, dual-sided, bare board tester that provides superior cost performance and quick inspection yield thanks to advanced probe movement technology. Using a total of four arms, two in front and two in back, it is capable of simultaneously testing both sides of the board, provides open via detection via low resistance testing.

Never Miss Out on Latent Defects on High Density Printed Wiring Boards

With a dedicated board and proprietary 4-wire probes, you can now quickly and accurately detect minute resistances characteristic of open vias. To measure high insulation resistance, use the newly developed 100GΩ/250V super megohm board that minimizes stress from high applied voltage to deliver damage-free, rapid results. In addition, the built-in “Process Analyzer” lets you batch load accumulated inspection results to easily create statistical reports out of the data. Present data trends and view histograms from the results captured with each inspection step, make distribution maps, and draw other charts to visually data graphically in order to analyze defects and provide feedback to upstream design and manufacturing processes, ultimately helping to improve the quality and yield of PWBs.

Key Features

Optimization of probe movement reduces inspection time by up to 20%

Reduce probe marks in combination with the latest probes

Latent defect detection using newly developed statistical processing software

Specifications Overview

Number of arms	4 (front × 2, rear × 2)
Compatible probes	1172 series, CP1072 series
Number of test steps	999,999 steps
Test parameters and measurement ranges	Resistance measurement :	40.00 μΩ to 40.00 MΩ
	Insulation measurement :	1.000 kΩ to 100.0 GΩ
	Capacitance measurement :	100.0 fF to 10.00 μF
	Leakage current measurement :	1.000 μA to 10.00 mA
	High-voltage resistance measurement :	1.000 kΩ to 100.0 GΩ
	Capacitor insulation measurement :	1.000 kΩ to 10.00 MΩ
	Open measurement :	4.000 Ω to 4.000 MΩ
	Short measurement :	400.0 mΩ to 40.00 kΩ
Judgment range	-99.9% to +999.9% or absolute value
Minimum pad pitch	45 μm (with CP1075-09)
Minimum pad size	15 μm (with CP1075-09)
Measurement speed	Max. 67 points/sec. (0.15 mm movements, 4-arm simultaneous probing, capacitance measurement)
Testable boards	Standard specification: 50 mm (1.97 in) W × 50 mm (1.97 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness 1.0 mm (0.04 in) to 3.2 mm (0.13 in)
	Pneumatic board clamp (option): 50 mm (1.97 in) W × 70 mm (2.76 in) H to 610 mm (24.02 in) W × 510 mm (20.08 in) H, Thickness: 0.6 mm (0.02 in) to 6.0 mm (0.24 in)
Maximum testable area	604 mm (23.78 in) W × 504 mm (19.84 in) H
Power supply	200 V, 220 V, 230 V, 240 V AC single-phase (specify at time of order),
	50 Hz/ 60 Hz, Maximum power consumption: 3 kVA
Dimensions and mass	1485 mm (58.46 in) W × 1950 mm (76.77 in) H × 800 mm (31.50 in) D, (excluding protruding parts), 1070 kg (37742.5 oz)
