HIOKI FA1816 Flying Probe Tester
Top share of printed circuit boards (PCBs) inspection system "capacitive measurement method" models

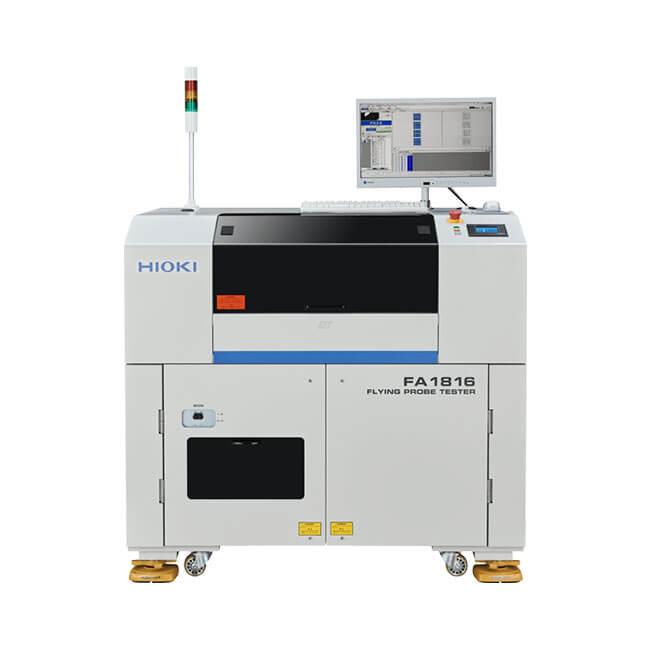

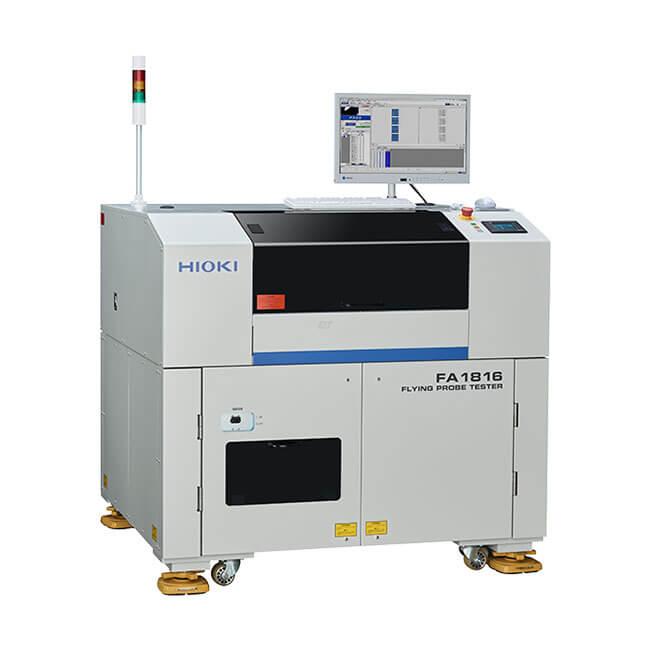

Hioki PCB and substrate inspection equipment leverages our core competency in high precision component testing. The FA1816 is a horizontal-loading, single-side flying probe tester with a rapid 100 times/second test speed.
Latent defects on HDI & substrate. Definitely detect out each FAIL. Hi-speed test by capacitance measurement. Much fewer steps than resistance testing.
Significantly improved operability
Screens: Important information has been consolidated on a single screen, and a graphical interface allows intuitive operation.
Control: A workflow menu is now available to streamline the test data creation process.
Master data creation: Previously, operators had to carry out a variety of steps, including acquiring basic data and qualifying a sample board as a reference master, in order to create the master data that serves as the standard for pass/fail judgment. The FA1816 automates this process so that the operator need only click a single button, shortening control time and reducing operator workload.
Key Features
High-speed pattern testing using the capacitive measurement method - Max. 100 points/sec.
Reduce probe marks in combination with the latest probes
Significantly improved operability
Specifications Overview
|
Number of arms |
2 (top surface × 2) |
|
|
Compatible probes |
1172 series, CP1072 series |
|
|
Number of test steps |
999,999 steps |
|
|
Test parameters and measurement ranges |
Resistance measurement : |
40.00 μΩ to 40.00 MΩ |
|
|
Insulation measurement : |
1.000 kΩ to 500.0 MΩ |
|
|
Capacitance measurement : |
100.0 fF to 10.00 μF |
|
|
Leakage current measurement : |
1.000 μA to 10.00 mA |
|
|
High-voltage resistance measurement : |
1.000 kΩ to 500.0 MΩ |
|
|
Capacitor insulation measurement : |
1.000 kΩ to 10.00 MΩ |
|
|
Open measurement : |
4.000 Ω to 4.000 MΩ |
|
|
Short measurement : |
400.0 mΩ to 40.00 kΩ |
|
Judgment range |
-99.9% to +999.9% or absolute value |
|
|
Minimum pad pitch |
40 μm (with CP1075-09) |
|
|
Minimum pad size |
10 μm (with CP1075-09) |
|
|
Measurement speed |
Max. 100 points/sec. (0.1 mm movements, 2-arm simultaneous probing, capacitance measurement) |
|
|
Testable boards |
50 mm (1.97 in) W × 50 mm (1.97 in) D to 610 mm (24.02 in) W × 510 mm (20.08 in) D, Thickness 0.1 mm (0.004 in) to 3.2 mm (0.13 in) |
|
|
Maximum testable area |
610 mm (24.02 in) W × 510 mm (20.08 in) D |
|
|
Power supply |
200 V, 220 V, 230 V, 240 V AC single phase (specify at time of order), |
|
|
50 Hz/ 60 Hz, Maximum power consumption: 3 kVA |
||
|
Dimensions and mass |
1303 mm (51.30 in) W × 1194 mm (47.01 in) H × 1167 mm (45.94 in) D (excluding protruding parts), 900 kg (31746 oz) |
|
