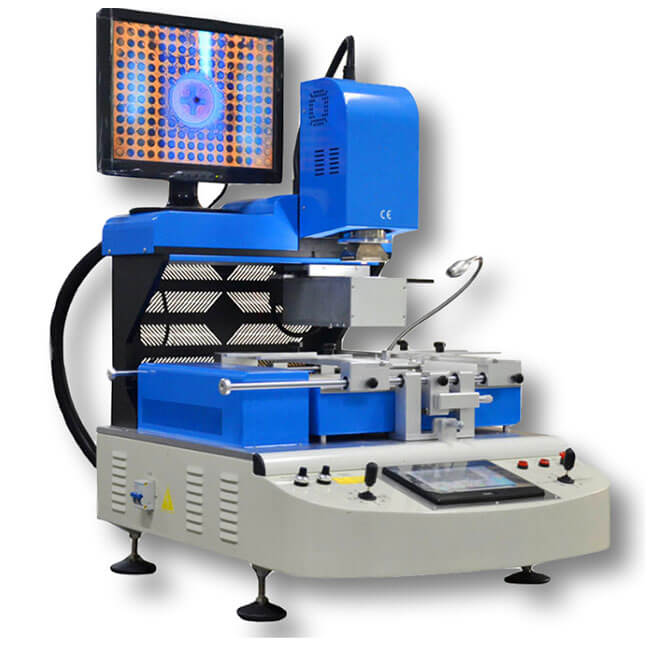

SD-750 BGA Rework Station

Maximum PCB size：550*450mm
Mounting accuracy：±0.01mm
Total Power：6800W
Power Supply： Single Phase AC 220V±10 50Hz

BASIC INFO

SD-750 BGA Rework Station

Operating System Control

●The machine is equipped with both manual and automatic modes.

●Automatic soldering, removal, placement and chip replacement.

●Panasonic PLC control.

Independent three temperature zone temperature control system

●Panasonic PLC control, real-time display of temperature curve, display of set curve and actual curve, and analysis of temperature curve.

●Infrared heating plate, 3 independent heating zones, each heating zone can set heating temperature, heating time, heating speed; 6 heating cycles, simulate reflow soldering heating mode, set as preheating, heat preservation, heating, welding, reflow ,cool down.

●Using high-precision k-type thermocouple closed-loop control imported from the United States, and a unique heating method to ensure that the welding temperature accuracy is controlled within ±1°C.

●4 independent temperature measuring ports to accurately detect the temperature of the chip tin point to ensure the success rate of soldering.

Precision Optical Alignment System

●Adjustable CCD color optical alignment system, with the functions of distinguishing vision, zooming in, zooming out and auto focus, equipped with pixel detection device, brightness adjustment device operation, adjustable image resolution.

●Automatic disassembly of chips. Automatic feeding system.

Superior Security Protection System

●CE certification

●Emergency button and automatic power-off protection device, when the temperature is abnormal and misoperation, double protection device.

●The temperature curve has a password-protected authority to prevent non-operators from modifying it at will.

Specification

Total Power	6800W
Upper Heating Power	1200W
Lower Heating Power	1200W
Lower Infrared Heating Power	4200W (2400W controlled)
Optical Alignment Camera	Industrial 5MP HDMI HD Camera
Power Supply	Single Phase AC 220V±10 50Hz
Positioning Method	Optical lens + V-shaped card slot + laser positioning light for quick positioning
Temperature Control	High-precision K-type thermocouple (K Sensor) closed-loop control, independent temperature measurement up and down, temperature accuracy can reach plus or minus 1 degree
Electrical material selection	Screen pass touch screen + Panasonic PLC + Dalian University of Technology temperature control module + servo driver
Z axis lifting control system	Servo motor plus screw, high-speed rotation, to ensure alignment accuracy
Maximum PCB size	550*450mm
Minimum PCB size	10*10mm
Number of temperature measurement interfaces	4
Chip magnification	2-30 times
PCB thickness	0.5-8mm
Applicable chips	0.30.6mm-8080mm
Applicable chip minimum pitch	0.15mm
Mounting maximum load	500G
Mounting accuracy	±0.01mm
Dimensions	L670×W780×H900mm
Optical Alignment Lens	The electric drive can move back and forth, left and right, and eliminate the dead angle of absolute alignment
Machine Weight	Net weight about 90kg
