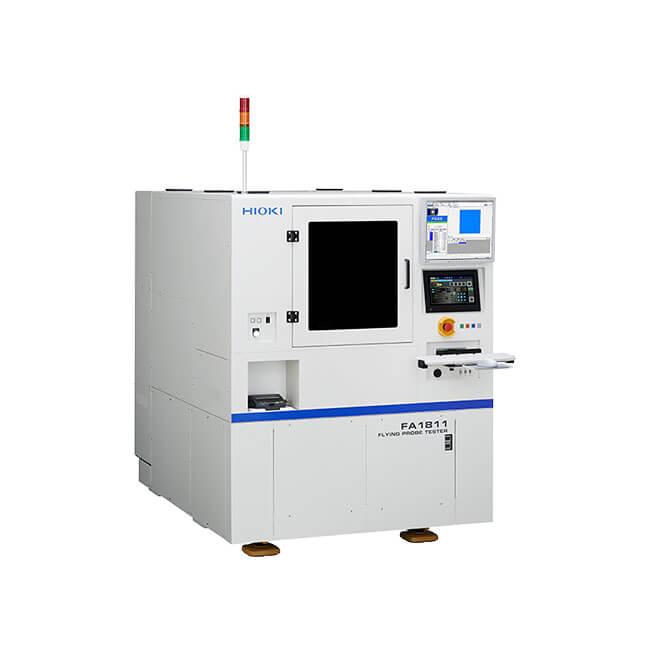

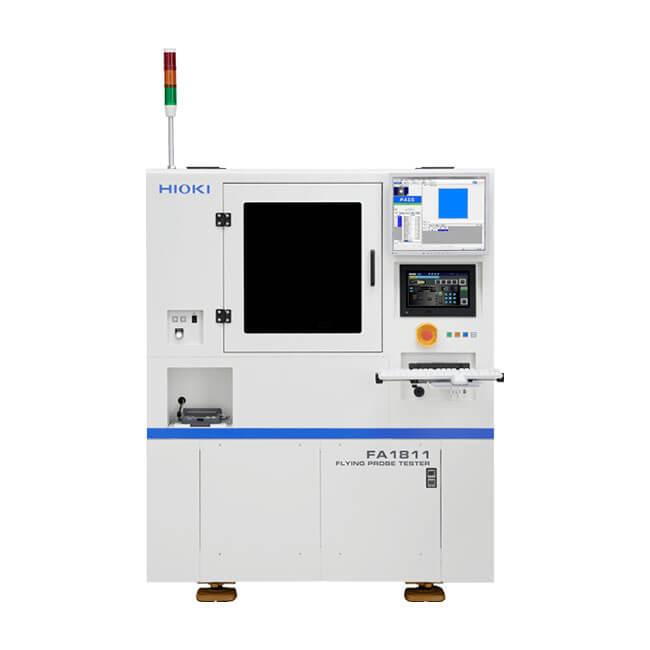

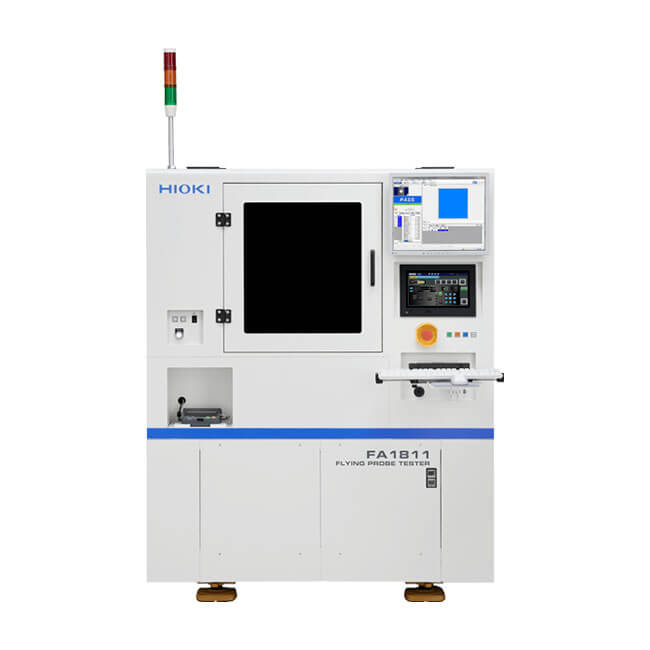

HIOKI FA1811 Flying Probe Tester
Meeting Ever Increasing Demands for Greater Analytical Power,
Faster Testing Speeds and Reduced Costs
Designed specifically for package board testing, the FA1811 achieves both high-precision contact with a total probing precision of 10 μm, and a testing speed rivaling generic flying probe testers to meet ever increasing demands for greater analytical power, faster testing speeds and reduced costs.
Key Features
Achieve both high precision contact and high-speed probing in a space of 10 μm.
Double test method delivers an operation rate of 100%.
Full-net insulation continuity test using resistance: x10 max. speed*
High-speed test using capacitance: x2 max. speed*
Specifications Overview
|
Number of arms |
2 (Upper: 2) |
|
|
Mountable probes |
CP1073 series |
|
|
Measurement parameters and measurement ranges |
Resistance measurement : |
400.0 μΩ to 40.00 MΩ |
|
4.000 Ω to 4.000 MΩ (T) |
||
|
|
Capacitance measurement : |
100.0 fF to 10.00 μF |
|
|
MLCC measurement : |
100.0 nF to 100.0 μF |
|
|
Insulation measurement : |
1.000 kΩ to 100.0 GΩ |
|
1.000 kΩ to 250.0 MΩ (T) |
||
|
|
Capacitor insulation measurement : |
1.000 kΩ to 10.00 MΩ |
|
|
High-voltage resistance measurement : |
1.000 kΩ to 100.0 GΩ |
|
1.000 kΩ to 250.0 MΩ (T) |
||
|
|
Leak current measurement : |
1.000 μA to 10.00 mA |
|
|
Continuity : |
400 mΩ to 1.000 kΩ |
|
|
Open measurement : |
4.000 Ω to 4.000 MΩ |
|
|
Short measurement : |
400.0 mΩ to 40.00 kΩ |
|
|
(T): When measuring via the TEST FIXTURE |
|
|
Judgment range |
-99.9% to +999.9% or absolute value |
|
|
Total probing precision |
10 μm (Square) |
|
|
Probing pitch |
Min. 40 μm (when using CP1073-01) |
|
|
Supported range of board thicknesses for clamping |
Follow option on BGA side |
|
|
Probing area |
75 mm (2.95 in) × 75 mm (2.95 in) |
|
|
Power supply |
200 V AC ±10% (three phase) 50/60 Hz (200 V, 220 V AC: specified upon order) |
|
|
Maximum power consumption: 5 kVA |
||
|
Dimensions and mass |
1300 mm (51.18 in) W × 1670 mm (65.75 in) H × 1700 mm (66.93 in) D (Excluding protruding parts), 2000 kg (70,546.7 oz) |
|
