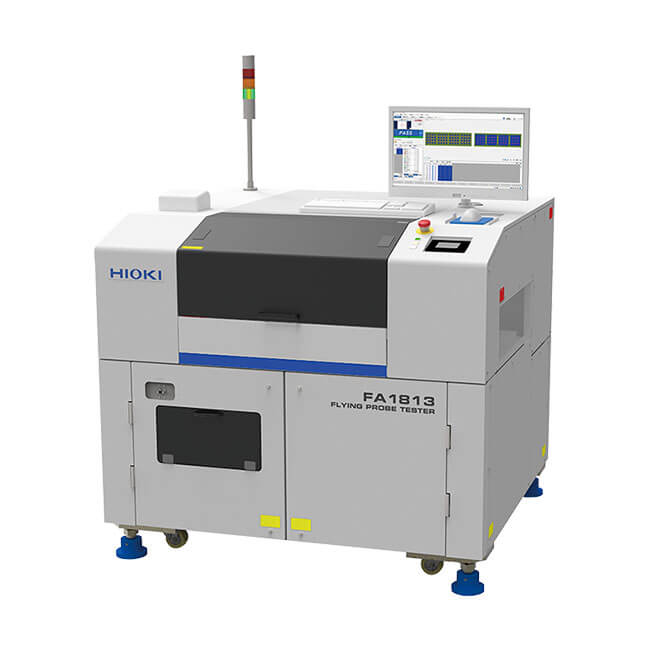

HIOKI FA1813 Flying Probe Tester

Number of test steps：Max. 999,999 steps
Judgment range：-99.9% to +999.9% or absolute value
Measurement speed：Max. 76 points/ s (X-Y movements of 0.15 mm, 4-arm simultaneous probing, when capacitance measurement)
Minimum pad pitch： Top surface: 32 um (with CP1075-09) Bottom surface: 44 um (with CP1075-09)

BASIC INFO

HIOKI FA1813 Flying Probe Tester

Upper arm board alignment uses a high-resolution camera with twice the pixels as the previous model and a high-magnification lens (with 2× optical zoom) to help achieve accurate probing of the fine-pitch pads found on high-density package boards.

“Probe-down with contact check,” a new function, facilitates optimal probe stroke to minimize impact marks, reducing damage to pads.

Key Features

Four-terminal measurement of fine-pitch pads

Reduced impact marking when used with the latest probes

Defect analysis using Process Analyzer

Specifications Overview

Number of arms	4 (2 each, top and bottom)
Mountable probes	1172 series, 1072 series, 1073 series
Number of test steps	Max. 999,999 steps
Measurement parameters and measurement ranges
	Resistance :	40.00 μΩ to 100.0 MΩ
	Constant DC current continuity	400.0 m Ω to 1.000 k Ω
	measurement
	Constant DC current resistance	40.00 μ Ω to 400.0 K Ω
	value measurement
	Constant DC voltage resistance	4.000 Ω to 40.00 M Ω
	value measurement
	Insulation resistance :	1.000 kΩ to 100.0 GΩ
	Capacitance :	100.0 fF to 10.00 μF
	Leak current measurement :	100.0 μA to 10.00 mA
	High voltage resistance :	1.000 kΩ to 100.0 GΩ
	Capacitance Insulation resistance :	1.000 kΩ to 10.00 MΩ
	Open test :	4.000 Ω to 4.000 MΩ
	Short test :	400.0 mΩ to 40.00 kΩ
	LSI Connection test	0.000 V to 12.00 V
	Measuring resistance	10.00 Ω to 100.0 k Ω
	Measuring capacitance	10.00 p F to 100.0 μ F
	(For parts inspection)
	Inductance :	1.000 μH to 1.000 mH
Judgment range	-99.9% to +999.9% or absolute value
	Minimum resolution of XY movement	0.1 μm／pulse
	Minimum resolution of Z movement	1 μm／pulse
Minimum pad pitch	Top surface: 32 um (with CP1075-09)
	Bottom surface: 44 um (with CP1075-09)
Minimum pad size	Top surface: 2 um (with CP1075-09)
	Bottom surface: 14 um (with CP1075-09)
Measurement speed	Max. 76 points/ s (X-Y movements of 0.15 mm, 4-arm simultaneous probing, when capacitance measurement)
Testable board size	Thickness : 0.5 mm (0.02 in) to 2.5 mm (0.10 in)
	Outer dimensions : 50 mm (1.97 in) W × 50 mm (1.97 in) D to 400 mm (15.75 in) W × 330 mm (12.99 in) D
Maximum testable area	398 mm (15.67 in) W × 304 mm (11.97 in) D
Board clamping	Board 2-side chuck method (with tension function)
Power supply	200 V, 220 V, 230 V, 240 V AC single-phase (specify at time of order), 50/60 Hz, 5 kVA
Dimensions and mass	1355 mm (53.35 in) W × 1200 mm (47.25 in) H × 1265 mm (49.81 in) D, (Excluding protruding parts), 1,130 kg (39859.6 oz)
