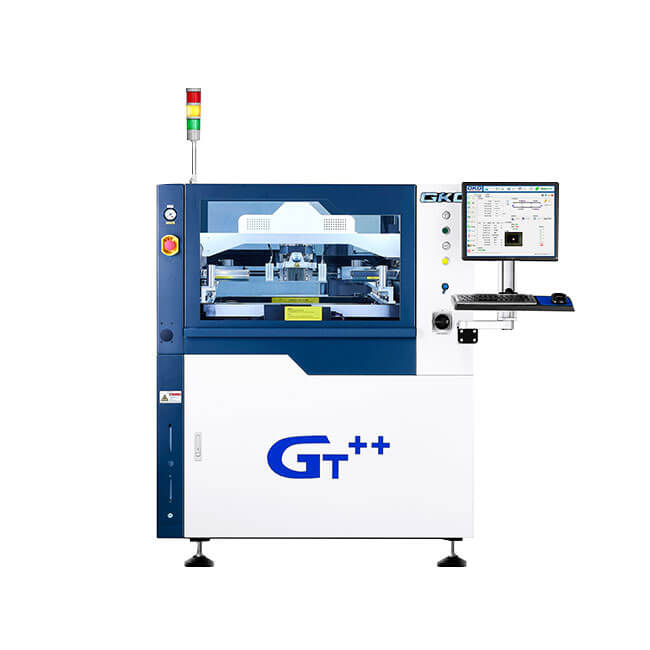

GKG GT++ Solder paste printer

PCB size：510mm x 510mm
size: 1240*1410*1500mm
Voltage: 220V
Weight:1100Kg

BASIC INFO

GKG GT++ Solder paste printer

GT++ is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

Specification ：
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~510mm x 510mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.
1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Specification

Model	GT++
Max PCB Size	510x510mm
Min PCB size	50x50mm
PCB thickness	0.4-6mm
Max board weight	5kg
Transport height	900 ± 40mm
Board edge gap	2.5mm
Board height	23mm
Transport direction	L-R,R-L
Transport speed	max 1500mm/s, program control
Transport method	One stage
PCB positioning (support method)	Magnetic pin/support block/auto up-down table
PCB clamping system	Patented over the top clamping
	Side clamping
	Adsorption function
Print snap-off	0-20mm
Print mode	one/twice
Print Speed	10-200mm/sec
Print Mode	One /Twice
Squeegee Type	Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
Print pressure	0.5-10kg
Template fram size	470370mm~737737mm(20-40thickness)
Cleaning System	Droops of rain type cleaning system
	Dry, wet vacuum three modes
	Back and forth cleaning
CCD FOV	10x8mm
Fiducial mark types	Standard Fiducial mark shape
	Pad
	Hole
Camera system	Look up/down optics structure
	CCD digital camera
	Geometry pattern match
