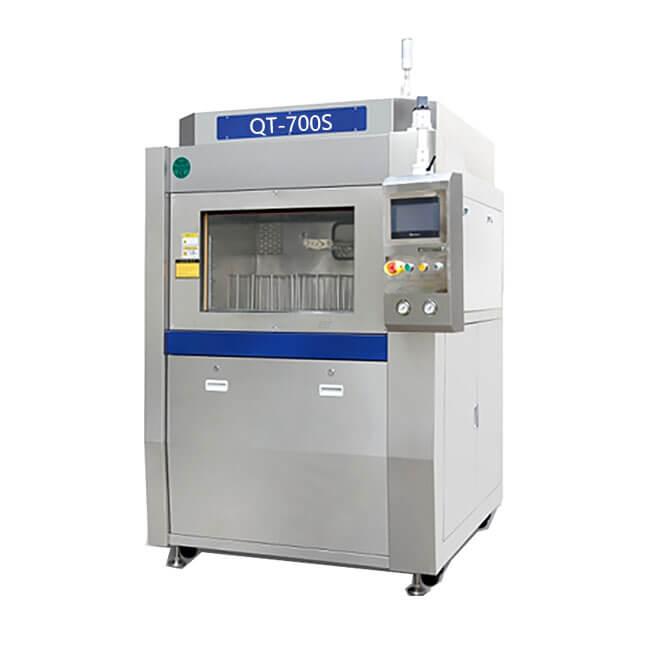

Fully Automatic SMT Stencil Cleaning System QT-700S

Cleaning area size: Ø1000mm ×550mm(H)
physical dimension: 1330mm(L) ×1750mm(W) × 1850mm(H)
Cleaning size range setting: 400—550mm
Drying time: 0~100 minutes (adjustable)

BASIC INFO

Fully Automatic SMT Stencil Cleaning System QT-700S

▶The cleaning tank, the original tank, and the spray tank are designed with liquid level sensor overflow alarm.
▶The opening of the front door is designed with photoelectric sensor protection. When the equipment is cleaning, if the front door is not closed, the cleaning will stop to prevent liquid or water from spraying out.
▶The air source, DI water inlet, and heating system all have PLC monitoring and alarm systems, and double protection is designed to ensure that any failure will not damage the equipment.
▶The main parts are imported parts and well-known brands in the industry, such as pumps from Ingersoll Rand, CKD solenoid valves, Panasonic PLC, German rails.
▶The operating mechanism adopts the cleaning object to be thrown up and down on the screen, imported guide rail + stepping drive, and the spray arm and air knife are fixed.

Fully Automatic SMT Stencil Cleaning System QT-700S
What is a stencil cleaning machine in SMT process?
A kind of machine equipment for cleaning stencil in SMT work, mainly used for cleaning residues such as solder paste, red glue and silica gel on the stencil after printing.
1. Fully automatic cleaning mode: The workpiece rotates with the cleaning basket, and the heated cleaning fluid is sprayed through the spray arm at high pressure, and the whole process of automatic cleaning, rinsing, and drying is automatic.
2. Visualization of the whole process: Visualization window and LED light device make the cleaning process clear at a glance.
3. Scientific nozzle design (patent): It adopts 8 spray arms in the upper, middle, and lower parts-completely solve the blind area of cleaning, and the spray arms and nozzles are detachable.
4. Visual nozzle pressure can be adjusted: It solves the collision and splashing problems of small workpiece size under high-pressure spray conditions during cleaning.
5. The viewing window and the entrance of the screen are protected by a safety grating to prevent the cleaning liquid from spilling out and ensure its safety.
6. Comprehensive cleaning system: the standard diluent tank\rinsing tank heating system improves the cleaning efficiency. The cleaning time is shortened, and it is compatible with running water washing or chemical cleaning. It is aimed at SMT; THT's PCBA surface residual rosin, solder paste and other organic, Inorganic pollutants are thoroughly and effectively cleaned.
7. Cleaning and rinsing adopt an online independent built-in filter system, independent electric pump, independent spray arm, independent nozzle, and the recycling of solvents to prevent the cleaning and rinsing from as little liquid as possible, which can increase the service life of the rinsing water and reduce The amount of solvent.
8. The quality of the fuselage: the overall 304 stainless steel fuselage, resistant to acid, alkaline, and other cleaning fluids.
9. There is an emergency stop button and leakage protection function when a solid obstacle occurs.
10. Lower operating cost: lower equipment investment cost, localized service, team, and sufficient spare parts supply.
QT-700S rotary spray cleaning machine:
Complete the cleaning, rinsing, and drying processes automatically, and visualize the cleaning process.
(Using a unique design of eight spray arms for cleaning and rinsing, three air knives for air cutting and drying, and online filtering for cleaning and rinsing to ensure cleanliness)
Application: Cleaning of SMT and DIP fixtures, cleaning of scrapers and condensers, cleaning of external surfaces of various workpieces, cleaning of various hardware parts after machining, cleaning of parts after equipment disassembly, auto parts, various shells, The contaminants remaining on the surface of the box and the hole wall.

Parameter

Cleaning area size:	Ø1000mm ×550mm(H)
physical dimension:	1330mm(L) ×1750mm(W) × 1850mm(H)
Nozzles in cleaning area:	28 nozzles, 304 stainless steel, fan-shaped 65°
Nozzles in rinsing zone:	28 nozzles, 304 stainless steel, fan-shaped 65°
Drying area:	3 air knives, 304 stainless steel
Cleaning size range setting:	400—550mm
Cleaning time:	0~100 minutes (adjustable)
Rinsing time:	0~100 minutes (adjustable)
Drying time:	0~100 minutes (adjustable)
Power/Air source:	Three-phase five-wire system, 380V/18Kw (rated power)/0.45Mpa-0.7Mpa
Weight:	650KG
