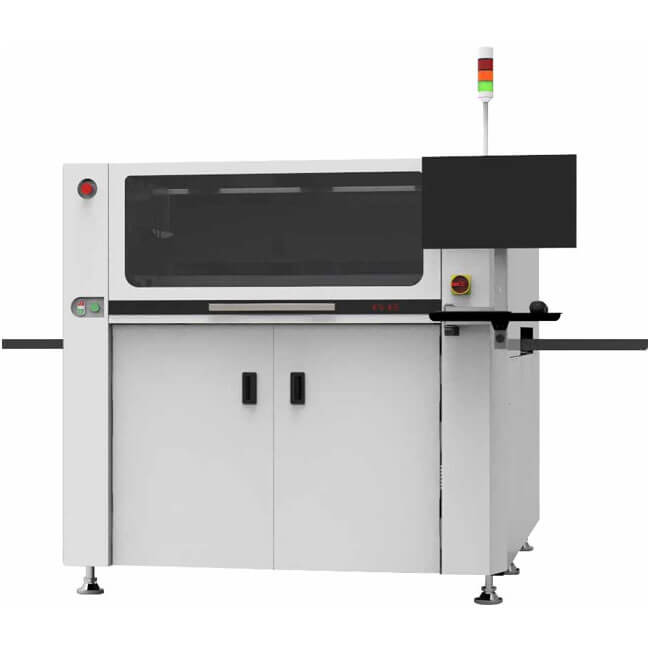

ESE ES-E8 Solder paste printer

SMT screen printers from ESE. Solder-paste screen printer model ES-E8 (formerly the 8500X) with advanced-design printing table for superior printing quality. All major components controlled by high-precision servo motors. Adjustable stencil rails and automatic motorized conveyor-width adjustment, for quick and easy changeovers. ESE US-X Series SMT screen printers are equipped with a fast, accurate vision system, with 2-D inspection standard.

Qualified professional large board up to 850mm

12 over enhanced standard program integrated

Much solid frame & Table

3 stages conveyor system

Auto stencil loading & Positioning

PCB Size

70㎜ x 70㎜ ~ 850㎜ x 610㎜

PCB Thickness

0.3㎜ ~ 6㎜

Stencil Mark Size

736㎜(29”), 800㎜, 850㎜, 980㎜, 1050㎜ x 850㎜

Cycle Time

17sec / under optimized condition

Alignment Accuracy

±12.5 ㎛ @ 6 sigma

Printing Repeatability

±25 ㎛ @ 6 sigma , Cmk ≥2.0
