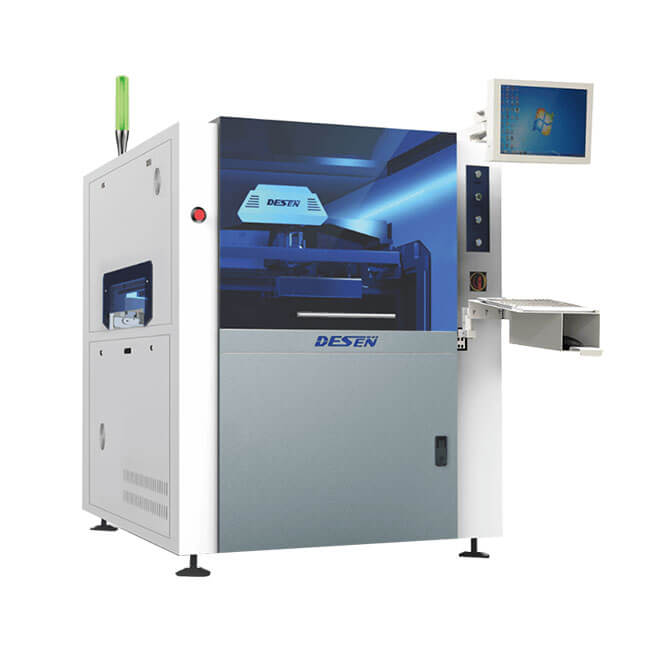

DESEN DGHP Solder paste printer
Automatic stencil positioning system
Automatic platform calibration system
Vaccum adsorption of substrate
Vaccum adsorption of stencil
Adjustable size of stencil frame
Maxim Printing size 510*510mm(option to 610*510mm)
Application Scenario
5G
Semiconductor
3C Products
Photovoltaic Products
New Display
Automotive Electronics
Medical Treatment
New Energy
Product Advanced Options
Solder Paste Monitoring SystemThe sensor will detect the diameter of solder paste remained under the front squeegee to remind the opreator to supply paste.
Automatic Supply Solder Paste
It's controlled by electricity and also capable for supplying the solder paste atfixed times.
Stencil Aperture Inspection
Stencil aperture inspection can be programmed to be carried out automaticallyto detect clogging on stencil opening, eliminate poor printing from the begining.
Automatic Dispensing Unit
Attached on CCD Camera XY axis, the dispenser provides basic function of gluedotting using syringe type dispensing needle after solder paste printing.
UPS
It will keep the power supply to PC for 10 minutes after power off to protect theproduction data.
Temperature&Humidity Control System
There are 3 options for this function:
T&H both are controlled.
Temperature control&Humidity detect.
T&H both detect and display.
Industry 4.0
Customize the different communications modes of customers to realizeintelligent operation management.
Product output and manufacturing data analysis and statistics in real-time.
Intelligent alarm & prompt system and processing solution.
Bar-code recognition.
Product Parameter
|
Parameters |
Specification |
|
Model |
DGHP |
|
Screen Frame Size |
470mm x 370mm~737mm x 737mm |
|
Substrate Handling Size (minimum) |
50mm (X) x 50mm (Y) |
|
Substrate Handling Size (maximum) |
510mm (X) x510mm (Y) |
|
Options: 610mm(X)x510mm(Y) |
|
|
|
|
|
Cycle Time |
7s |
|
Screen Frame Thickness |
20mm -40mm |
|
Substrate Thickness |
0.4mm -6mm |
|
Print Pressure |
0kg -20kg |
|
Print Speed |
1 -200mm/s |
|
Print Gap |
0mm -20mm |
|
Substrate Separation |
Speed:0.1-20mm/sec |
|
Distance:0mm - 20mm |
|
|
Apply paste option |
Solder paste，Printing ink, Silver paste |
|
Voltage |
220Volts +/- 10%.Single phase 50/60Hz |
