Anda VP-3 Plasma Surface Treatment Machine

Effective Work Area: L 450 x W 450
Conveyor Height: 900 ± 20 mm
Conveyor Speed (XY): 2 - 13 m/min
Clearance Height: 3 - 15 mm

BASIC INFO

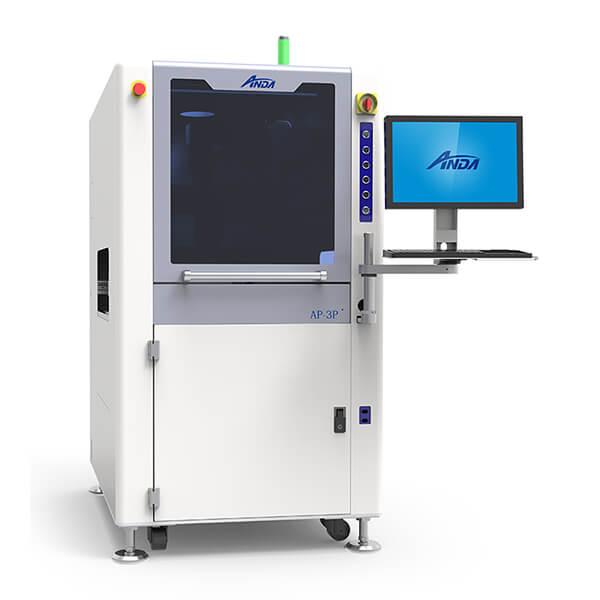

Anda VP-3 Plasma Surface Treatment Machine

The AP-3 Series are advanced atmospheric pressure plasma surface treatment machines that are equipped with servo motors and high speed ball screw linear actuators for accuracy. The standard machine AP-3P is equipped with a single nozzle situated above the substrate to plasma treat, clean and activate surfaces from the top side only. The AP-3DP utilizes dual plasma nozzles top and bottom (single nozzle above and single nozzle below substrate) synchronized for simultaneous treatment or operate each nozzle independently for maximized productivity.

Plasma Treatment removes static electricity and contaminants such as fine dust, oil, grease, microbial organisms, and both organic/inorganic compounds while also providing surface modification which facilitates adhesion of various coatings and/or adhesive materials. Additionally, plasma treatment promotes the flow of coatings for thin film coating without other mechanical or chemical treatments required.

Features

Inline Plasma Treatment: completely automated high production atmospheric plasma treatment processing

Atmospheric Pressure Plasma: generate plasma solely using compressed air without the need for carrier gases

Multi-functional: system can be used as standalone or placed inline with upstream or downstream operation processes

Environmentally Friendly: zero chemicals are used and no harmful substances are produced

Cleaning: remove fine dust, oil, grease, organic, inorganic and microbial contaminants

Activation: Increase surface energy to promote wetting and adhesion
VP-3 Specifications

Plasma Processing
Effective Work Area	L 450 x W 450 (L = 17.72” W = 17.72”)
Clearance Height	3 - 15 mm (0.12" - 0.59")
RF Power	500 W/1000 W/ 300 - 620 W
RF Frequency	20 - 25 kHz
Nitrogen Generator	Optional
Transmission System
Process Flow	L to R (Standard); R to L (Optional)
Conveyor Type	Chain
Conveyor Height	900 ± 20 mm (35.43” ± 0.79”)
Conveyor Speed (XY)	2 - 13 m/min
Conveyor Width Adjustment	Manual
XYZ Axes Configuration
Motor	Servo + Ball Screw Linear Actuator
Spray Nozzle	(AP-3P) Single plasma nozzle above (AP-3DP) Dual plasma nozzles - single above and single below
Max. Movement Speed	800mm/s
Working Speed	50 -100m m /s( Typical)
Effective Operating Height	3-1 S mm (0.12" - 0.59")
Repeated Accuracy	± 0.2 mm(± 0.007")
Facility
Standard footprint	L 900 x W 1300 x H 1627 mm (L 35.43” x W 51.18” x H 64.06”)
Weight	AP-3P: 530 kg (1168 lb)
Air source	0.4 Mpa
Extraction	5 m3/min
Input power	AC 220 V 50/ 60 Hz 1P
Interface
Controller	PLC with touch screen control
Software	Anda UI & Windows OS
Programming	File transfer, On-line vision programming with keyboard/mouse
Communication Protocols	SMEMA & IPC-CFX
