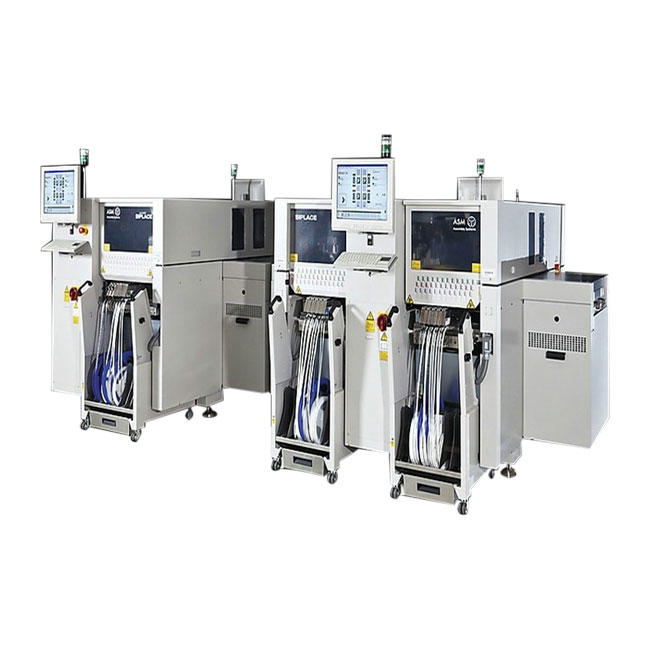

ASM SIPLACE D1 / D2 / D4 Pick and place machine

Machine Model : ASM SIPLACE D1 / D1i

- Siplace D1 is really comes into its own in flexibility production environment

- NPI can be implemented as fast as possible with SIPLACE Virtual product build

- 1-gantry placement machine for maximum output

- High-tech with an optimum price/performance ratio

- Placement machine with four gantries and four 12-nozzle Collect & Place heads.

- It is equipped as standard to place 0201 component

Model	ASM SIPLACE D1 / D1i
Number Of Gantry	1
Types of placement Head	C&P12 - 12-nozzle Collect&Place head
	C&P6 - 6-nozzle Collect&Place head
	P&P - SIPLACE Pick&Place head
		IPC Value	Benchmark value	Theoretical value
Placement head	C&P12	13000	15000	20000
configuration and	C&P6	8400	9800	11500
placement head ( CPH )	P&P	2600	2800	3500
PCB Size	Min. 50 X 50 mm Max. 610mm X 508mm.
PCB thikness	Standard 0.3 mm to 4.5 mm
PCB weight	Max. 3 kg
Clearance on PCB underside	25 mm ( max. 40 mm option)
	HEAD	Size	Height	Accuracy
Componet Size, Height & Accuracy	C&P 12	0201 - 18.7 x 18.7	6 mm	± 0.050 μm
	C&P 6	0201 - 27 x 27	8.5 mm	± 0.053 μm
	P&P	0402 - 200 x 125	19 mm	± 0.038 μm
Feeder Capacity	8 mm max 90 Feeders
Machine Weight	2240 Kg Approx.
machine Dimension	L 1587 x W 2285 x H 1812 mm

Machine Model : ASM SIPLACE D2 / D2i

- Fast and Flexible Dual gantry machine

- Flexible Head combination to meet every need.

- 2-gantry placement machine for maximum output

- High-tech with an optimum price/performance ratio

- Placement machine with four gantries and four 12-nozzle Collect & Place heads.

- It is equipped as standard to place 0201 component

Model	ASM SIPLACE D2 / D2i
Number Of Gantry	2
Types of placement Head	C&P12 - 12-nozzle Collect&Place head
	C&P6 - 6-nozzle Collect&Place head
		IPC Value	Benchmark value	Theoretical value
Placementhead	C&P12/C&P12	27200	31000	40500
configurationand	C&P12/C&P6	20900	23000	32000
placementhead(CPH)	C&P6/C&P6	16500	19500	23000
PCB Size	Min. 50 X 50 mm Max. 610mm X 508mm.
PCB thikness	Standard 0.3 mm to 4.5 mm
PCB weight	Max. 3 kg
Clearance on PCB underside	25 mm ( max. 40 mm option)
HEAD	Size	Height	Accuracy
C&P 12 / C&P 12	0201 - 18.7 x 18.7	6 mm	± 0.053 μm
C&P 12 / C&P6	0201 - 27 x 27	6 mm	± 0.053 μm
C&P6 / C&P6	0402 - 27 x 27	8.5 mm	± 0.050 μm
P&P	0402 - 200 x 125	19 mm	± 0.038 μm
Feeder Capacity	3*8 mm max 90 Feeders
Machine Weight	3320 Kg Approx.
machine Dimension	L 1587 x W 2285 x H 1812 mm

Machine Model : ASM SIPLACE D4 / D4i

- 4-gantry placement machine for maximum output

- High-tech with an optimum price/performance ratio

- Placement machine with four gantries and four 12-nozzle Collect & Place heads

- It is equipped as standard to 01005 component

Model	ASM SIPLACE D4 / D4i
Number Of Gantry	4
Types of placement Head	C&P12 - 12-nozzle Collect&Place head
		IPC Value	Benchmark value	Theoretical value
Placementhead	C&P12/C&P12
configurationand	C&P12/C&P12	57000	66000	81500
PCB Size	Min. 50 X 50 mm Max. 610mm X 508mm.
PCB thikness	Standard 0.3 mm to 4.5 mm
PCB weight	Max. 3 kg
Clearance on PCB underside	25 mm ( max. 40 mm option)
HEAD	Size	Height	Accuracy
C&P 12 / C&P 12	01005 - 16 x 16	6 mm	± 0.05 μm
C&P 12 / C&P12
Feeder Capacity	3*8 mm max 90 Feeders
Machine Weight	3980 Kg Approx.
machine Dimension	L 2850 x W 2565 x H 1812 mm
