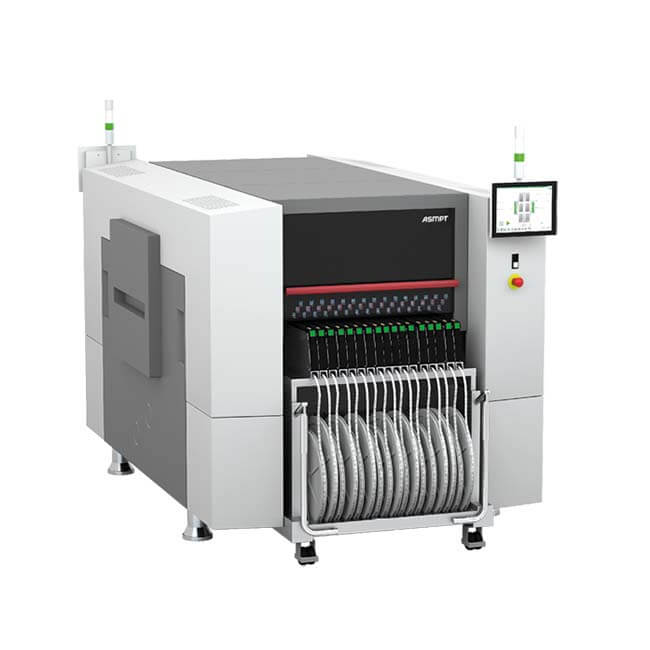

ASM SIPLACE SX series Pick and place machine

Placement Speed : 192,000 CPH
Applicable PCB : 50*50 - 1525*560mm
Applicable Part : 0201 - 55 x 45 mm
Accuracy: ±22 μm @ 3 σ

BASIC INFO

ASM SIPLACE SX series Pick and place machine

ASM SIPLACE SX series: the preferred placement solution for small batch and multi-variety SMT production

- The SIPLACESX series focuses on scalability and flexibility. Customers can quickly import new products, quickly change settings without stopping the line, and can produce products of any batch size, Increase availability and efficiency. Whether for automotive, automation, medical, telecommunications or for IT infrastructure – the SIPLACESX range meets quality, workmanship

- All requirements such as reliability and speed.

- The SMT production line can be expanded as required.

- SIPLACESX is the first placement solution that can be fully expanded as needed thanks to the unique exchangeable arms. Increase capacity when needed and reduce capacity when orders decrease.

With the SIPLACE SX we have made our most successful placement solution even better:

1. Capacity on Demand: Scale the performance of your SMT lines up or down as needed – quickly and easily

Increase performance:
You can increase the performance of your existing line in accordance with rising demand. For example, by adding a SIPLACE SX gantry you can double your performance by converting a SIPLACE SX1 into an SX2 in roughly 30 minutes – all without having to change the line configuration.

Transfer performance between lines:
Is one line struggling with its workload while another has capacity available? Simply transfer one or more SX gantries between lines – quickly, easily, and without having to change the configuration.

Increase feeder capacity:
Do you need more feeder slots, but the line’s performance is sufficient? Just buy a SIPLACE SX+, a SIPLACE SX without a gantry, and equip it with one of your existing SX gantries from the line. This lets you add more feeders without having to pay for additional performance you don’t need.

2. The SIPLACE Placement Head CP20 for high-speed and placement of components as small as 0201 (metric) with maximum precision

CP20 Head – for maximum accuracy and speed:
- For components ranging from 0.12 × 0.12 mm (L × W) to 8.2 mm × 8.2 mm and 4 mm (L × W × H)
- Speed: Up to 48,000 cph
- Accuracy: Up to ±25 μm @ 3 σ
- Placement force: 0.5 N to 4.5 N
- Perfect for the fast assembly of standard components at the head of the SMT line

3. SIPLACE Placement Head TWIN: The head for special tasks

Twin Head – for maximum force:
- Places components ranging from 0201 metric to 200 × 110 × 25 mm (L×W×H)
- Speed: Up to 5,500 cph
- Accuracy: Up to ±22 μm @ 3 σ
- Placement force: 1.0 N to 30 N
- Snap-in detection and 3D measurement in real time
- Perfectly suited for automated end-of-line placement of large and heavy components such as connectors, specialty components, and odd shapes

4. SIPLACE Placement Head CPP: Switches between placement modes on demand

CPP Head – for maximum flexibility:
- Switches as needed between pick-and-place, collect-and-place and mixed modes
- For components ranging from 01005 metric to 50 × 40 x 15.5 mm (L × W × H)
- Speed: Up to 25,500 cph
- Accuracy: Up to ±34 μm @ 3 σ
- For perfectly balanced line operation during quick product changeovers with no time-consuming configuration and head changes

5. Smart Transport Module: Process PCBs with lengths of up to 1.525 meters

- Automatic width adjustment programming with SIPLACE Pro

- SIPLACE user interface

- PCB dimensions: 50 mm x 50 mm up to 1525 mm x 560 mm

6. LED centering: Align components based on top-side features

- X/Y angle alignment of LEDs based on their center via top-side features

- Ideal for automotive LED lighting applications

7. Place critical components reliable with the SIPLACE OSC Package

With SIPLACE equipment, the perfect interaction between placement head and vision system makes it easy to master the challenges posed by OSCs.

- Placement forces of up to 100 N

- Snap-in recognition

- Real-time 3D measurement of contact pins

- Automatic placement speed optimization

- Automatic illumination setting for OSC components

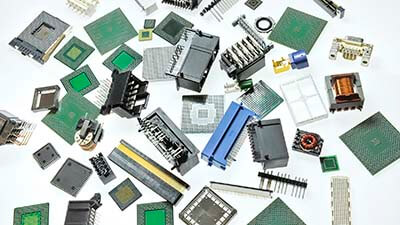

- Crack detection -Component cracks can be identified via the PCB camera inspection prior to pick - up as shown in the pictures (i.e. at bare dies)

- Component weight up to 300 g

- NEW: Measure moment of inertia

8. Touchless placement: Maximum placement quality for highly sensitive components

9. SIPLACE Placement Head CP20 and SIPLACE Placement Head CPP heads can operate jointly in the same placement area for more flexibility and performance.

10. Minimum placement force: 0.5 N

11. SIPLACE Smart Pin Support: Automated pin support for printed circuit boards

12. NEW: Up to 17% higher performance

Machine Type	SIPLACE SX1	SIPLACE SX2	SIPLACE SX3	SIPLACE SX4


Gantry	1	2	3	4
Theoretical speed	48,000 cph	96,000 cph	144,000 cph	192,000 cph
Machine Dimension	1.5 x 2.4 m	1.5 x 2.4 m	1.9 x 2.5 m	1.9 x 2.5 m
Placement Head	SpeedStar CP20, MultiStar (CPP), TwinStar (TH)
Component Range (mm)	03015 – 200 x 125 mm	03015 – 200 x 125 mm	0201″ – 200 x 125 mm	0201″ – 200 x 125 mm
Mounting Accuracy	± 41 μm/3σ	± 41 μm/3σ (C&P)	± 22 μm/3σ	± 22 μm/3σ
		± 34 μm/3σ (P&P)
Angle Accuracy	± 0.5°/3σ	± 0.4°/3σ(C&P)	± 0.05°/3σ	± 0.05°/3σ
		± 0.2°/3σ(P&P)
Conveyor Type	Single Conveyor, Flexible Dual Conveyor		Flexible Dual Conveyor, Quad Lane
Conveyor mode	Asynchronous, synchronous, I-Placement
PCB Size	50 x 50 mm – max. 850 x 560 mm		50 x 50 mm – max. 450 x 560 mm
PCB Thickness	0.3 – 6.5 mm		0.3 – 4.5 mm
PCB Weight	max. 2 kg (SX1/2)		max. 5 kg (SX3/4)
Feeder capacity	120 slots with 8 mm X feeders		148 slots with 8 mm X feeders
