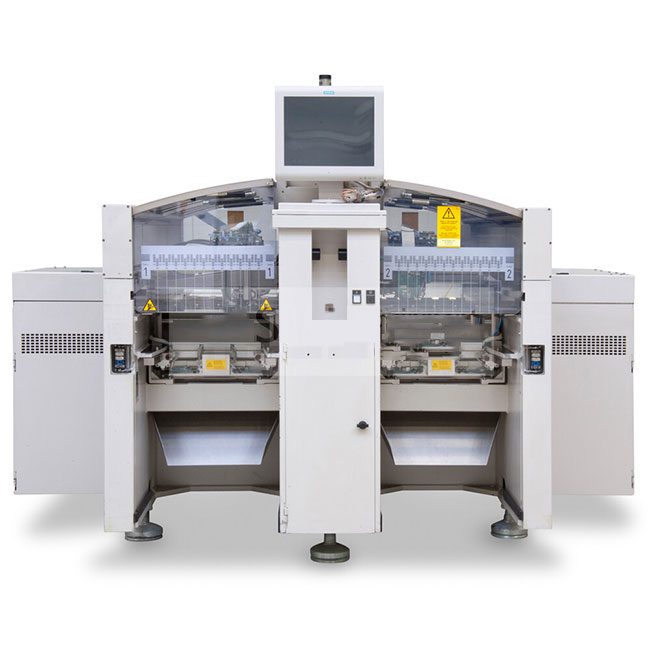

Siemens Siplace HS50 Pick and place machine

Placement Speed :50,000CPH
Applicable PCB : 50*50 - 510*460mm
Applicable Part :0603-18mm
Accuracy: ± 90μm

BASIC INFO

Siemens Siplace HS50 Pick and place machine

Siemens HS50 SMT machine is equipped with 4 XY main cantilevers. Each rack has a star-shaped 12-nozzle pick-and-place head. The placement head takes turns to pick up parts from the fixed feeder and place them on the fixed PCB board. Its features are as follows:

1. All sizes of parts tapes can be filled by joining the new tape behind the tape that is about to run out. This eliminates downtime caused by parts filling.

2. Fixed, shock-proof feeders ensure reliable picking, even for the smallest parts (such as 0201 and 0402 chips).

3. Due to the flexibility of the 12-nozzle placement head (its ideal nozzle setting and automatic assignment), the moving distance is reduced to a minimum, thereby optimizing the order of placement.

Technical parameters:

Component range: 0.6X0.3mm2(0201) to 18.7x18.7mm2

Higher placement accuracy: 90um (4sigma)

HS50 SMT circuit board size: (L * W)

Single rail 50X50mm2 to 368X216mm2 (2"X2" to 14.5"X18")

Double rail 50X50mm2 to 368X216mm2 (2"X2" to 14.5"X8.5")

Feeder capacity: 144 rails, 8mm strip

Feeding table: 4 sets

HS50 power: 4KW

Compressed air: 6.5-10bar, 950NI/min, pipe diameter 3/4"
