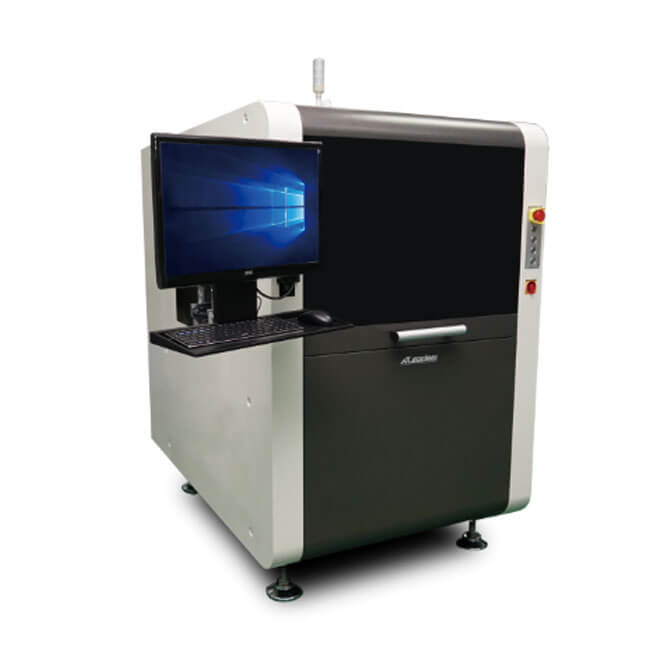

ALEADER ASR600i AOI Machine

PCB size range:50mm x 50mm (min) ~ 510mm x 460mm (max
Clamping system edge clearance:Top 3.5mm, Bottom 3.5mm
PCB weight:Up to 15kg
Min Component and Pitch:0402 chip, 0.5 IC pitch

BASIC INFO

ALEADER ASR600i AOI Machine

The ALeader ASR600I AOI system is specifically designed to inspect assembled PCB’s after the wave soldering process. Equipped with a unique optical head located under the conveyor, the ASR600I performs an optical inspection of the bottom side of the PCB with the high speed, accuracy and efficiency.

Using state-of-the-art i3D Technology and supported by powerful algorithms, the system is easy to program and delivers unprecedented high speed performance giving no escapes and extremely low FA rate on the most complicated and challenging of PCB assemblies.

Specially designed conveyor allows handling both PCB’s and heavy jigs (up to 15 kg).

System offers support for offline programming and debugging. Integrated barcode reading capability and various traceability options, software process control are available. Repair station delivers a clear image of the defect and a good sample allowing fast verification and preventing operator mistakes.

ASR600I– the Best Choice for Post Wave Optical Inspection

Special design for post wave application

Extremely low FA rate, high FPY and no escapes

100% inspection coverage

Fast and accurate inspection

Fast programming, intuitive user interface

Effective quality verification

Process control for defect prevention

High MTBF, low maintenance cost
