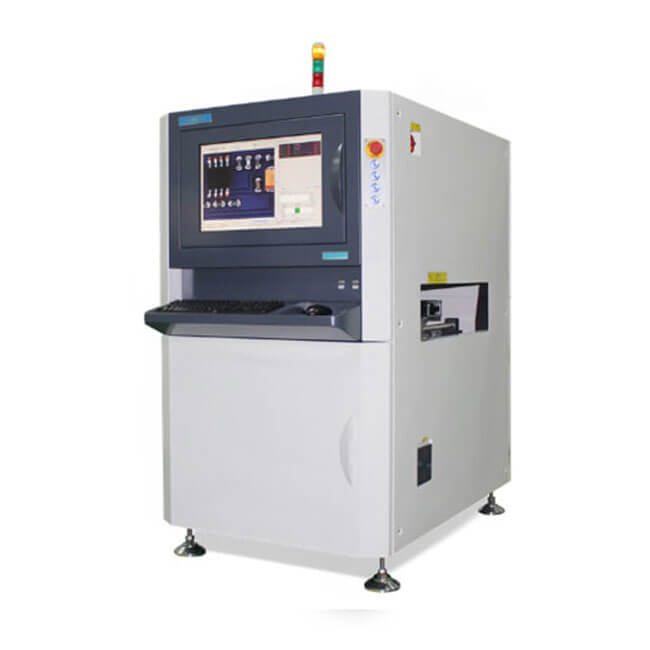

ALEADER ALD5820S AOI Machine

Minimum component size:01005, 0.3 mm pitch
Camera:4MP high-speed camera
Power supply:230V AC, 50/60 HZ, <1.5 KVA
Humidity:35 ~ 80% RH

BASIC INFO

ALEADER ALD5820S AOI Machine

ALeader ALD5820S is a high performance easy to operate AOI system designed to inspect PCB assembly before the reflow.

ALD5820S is accurately measures components position and supplies a feedback, which is vital to improve the performance of P&P machines. The system is detecting all placement defects, such as missing, missalignment, billboard, up-side-down, polarity, wrong component, lifted lead and more. In addition ALD5820S has a capability of 2D paste inspection on an assembled PCB.

Extremely low FA rate, high FPY and no escapes

Shadow free, warpage free solution, insensitive to board colour

Fast and accurate inspection and measurement

Ideal for inspection of 0201 and 01005 components, 0.3 mm pitch

Fast programming, intuitive user Effective quality verification

Process control for defect prevention

High MTBF, low maintenance cost

Specifications
Program creation	CAD file import, Gerber file import, central library, part number links, auto-programming
Camera	4MP high-speed camera
Operation system	Windows 7 Professional
PCB type	All colors and all pad finishes
Minimum component size	01005, 0.3 mm pitch
Special	Supports auto-change program, multi-boards (include bad mark) and multi-program inspection modes
features
Power supply	230V AC, 50/60 HZ, <1.5 KVA
Operation temperature	10° C ~ 35° C
Humidity	35 ~ 80% RH
