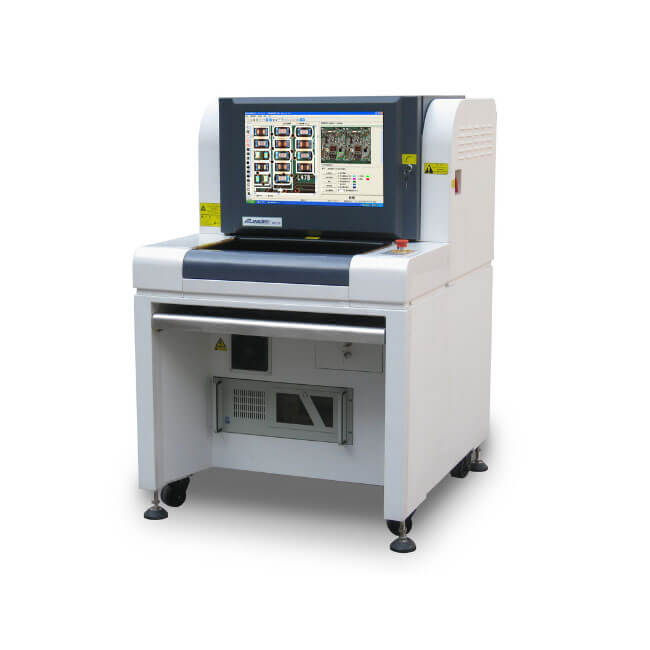

ALEADER ALD7120 i3D SMT Inspection Machine

PCB size range:Min 50mm x 50mm, Max 430mm x 330mm (ALD7120)
PCB warpage: <5 mm, warpage-free technology
PCB weight:Up to 3kg
Min component size:01005, 0.3 mm pitch

BASIC INFO

ALEADER ALD7120 i3D SMT Inspection Machine

The ALD7120 is the offline AOI system specifically designed for small and medium size SMT shops, as well as being able to provide prototype inspection in large factories. As all other members of ALD family, the ALD7120 AOI includes state of the art i3D technology, a high-speed camera and a multidirectional lighting module. The system has a small footprint, works very quietly, can be integrated easily and is suitable for use in production as well as in the lab. At the same time ALD7120 is the full-scale AOI machine and it delivers 100% coverage high-speed inspection with no escapes and a very low false alarm rate. The ALD7120 can be used in different kinds of applications, such as TH component inspection, glue pad contamination and more. Component marking and color inspection is part of the standard tests for all components on the board. The ALD7120 does not require any hardware modification in order to switch between the reflow, pre-reflow, wave or glue applications. Together with the ALeader FAI application ALD7120 gives a perfect solution for the first item inspection process. In the same manner as all the ALD models, the ALD7120 has a vast range of capabilities and is designed to overcome all PCB inspection challenges, including: shadows, various component colors, transparency, board warpage and many more. The system also offers support to offline programming and debugging. Features such as integrated barcode reading, various traceability options and software process controls are also available. The repair station delivers a clear image of the defect and a good sample, which allows fast verification and prevents operator errors

LEADING THE WAY FOR INSPECTION SOLUTIONS

i3D technology

Extremely low FA rate, high FPY, and no escapes

100% inspection coverage

Ideal for inspecting 0201 and 01005 components, 0.3 mm pitch

Fast and accurate inspection

Shadow-free, warpage-free solution, insensitive to board color

Fast programming, intuitive user interface Effective quality verification

Process control for defect prevention

High MTBF, low maintenance cost
