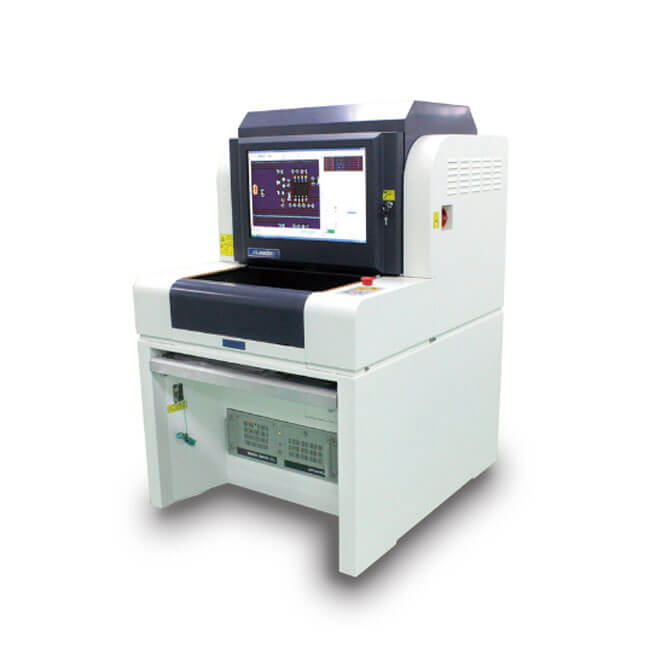

ALEADER ALD7220 i3D AOI Machine

PCB thickness range:0.3mm to 5mm
PCB weight:Up to 3kg
Underside/Topside:85mm/50mm
Min component size:01005, 0.3 mm pitch

BASIC INFO

ALEADER ALD7220 i3D AOI Machine

ALD7220 is the offline AOI designed to support high-mix, low-volume production. As all other members of ALD family, ALD7220 AOI includes state-of-art i3D technology, high-speed camera and the multidirectional lighting module. The high component top clearance makes it very suitable for after-wave soldering inspection, at the same time the system can be effectively used for the other applications after reflow, curing, pre-reflow (including paste 2D inspection) and more. ALD7220 has a small footprint, works very quietly – easily can be integrated and used in production as well as in the lab environment. From the other side, this is the full scale AOI system delivers 100% coverage high-speed inspection with no escapes and very low false alarm rate. In the same manner as all the ALD models, the ALD7220 has a vast range of capabilities and is designed to overcome all PCB inspection challenges, including: shadows, various component colors, transparency, board warpage and many more. The system also offers support to offline programming and debugging. Features such as integrated barcode reading, various traceability options and software process controls are also available. The repair station delivers a clear image of the defect and a good sample, which allows fast verification and prevention of operator errors.

LEADING THE WAY FOR
INSPECTION SOLUTIONS

i3D technology

Easy and straightforward installation and operation

Extremely low FA rate, high FPY, and no escapes

100% inspection coverage

Ideal for inspection of 0201 and 01005 components, 0.3 mm pitch

Fast and accurate inspection

Shadow-free, warpage-free solution, insensitive to board color

Fast programming, intuitive user interface

Effective quality verification

Process control for defect prevention

High MTBF, low maintenance cost
