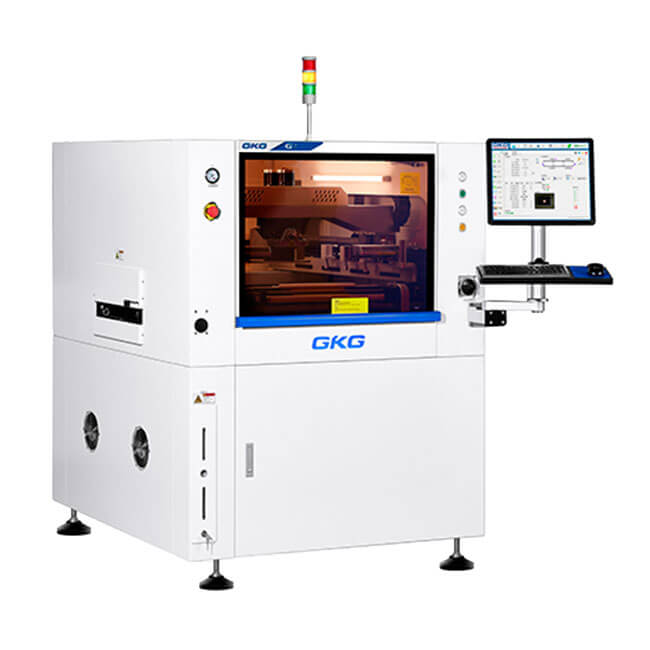

GKG G9+ Solder paste printer

size: 1530x1172x1385mm
PCB:450X340mm
PCB weight: 3KG
Weight:1000Kg

BASIC INFO

GKG G9+ Solder paste printer

GKG G9+ SMT Stencil Printer, Fully Automatic tin paste printing machine is a high-end model for SMT high-end application, which can satisfy the printing process requirements of 03015,0.25 pitch, high precision and high speed.

G9+ is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification ：
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~450mm x340mm;
PCB thickness: 0.4mm ~ 6mm
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode:03015,01005, 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.25mm; support BGA, CSP packaging,
min. ball 0.25um;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.
1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Substrate processin	G9+
Maximum board size	450*340mm
Minimum board size	50*50mm
Board thickness	0.4~6mm
Maximum board weight	3Kg
Board edge clearance	2.5mm
Board height	15mm
Transport height	900士40mm
Transport speed	1500mm/s(Max)Program Control
Transport direction	One stage
Board clamp	Plandover the top damping
	Side clamping
	Adsorption function
Support System	Magnetic Pin
	Support Block
	Manual up-down table
Printing Parameters	G9+
Snap- -off	0-20mm
Print Mode	One/Twice
queegee Type	bber/Steel Squeegee Blade(angle 45/55/60)
Print Speed	10~200mm/sec
Print Pressure	0.5~10Kg
The template frame size	470370mm~737737mm(20- -40)
Cleaning System	Drops of rain type cleaning system
	Reinforced Vacuum absorption
	Dry, Wet Vacuum three modes
	Back and forth cleaning
Vision	G9+
CCD FOV	10*8mm
Fiducial mark types	Standard shape datum, custom images
	Pad
	Hole
Camera System	Look up/down optics structure
	CCDdigital camera
	Geometry pattem match
Machine Performance	G9+
Repeat PostionAccuray	土12.5um@6σ，CPK≥2.0
Print Accuracy	土18um@6σ，CPK≥2.0
Based on the third party test system(CTQ)Verify the actual solder paste printingposition repeat precision
Cycle time	< <7.5sec
Machine paramter	G9+
Power Source	AC:220土10% ,50/60HZ,2.5KW
Air Pressure	4~6 Kgf/cm2
Air Consumption	About 5L/min
Operating Temperature	– -20C~+45C
Operating Humidity	30%~60%
Machine deisnihoutt Twelignf	1530(H)mm
Machine Length	1172(L)mm
Machine Width	1385(W)mm
