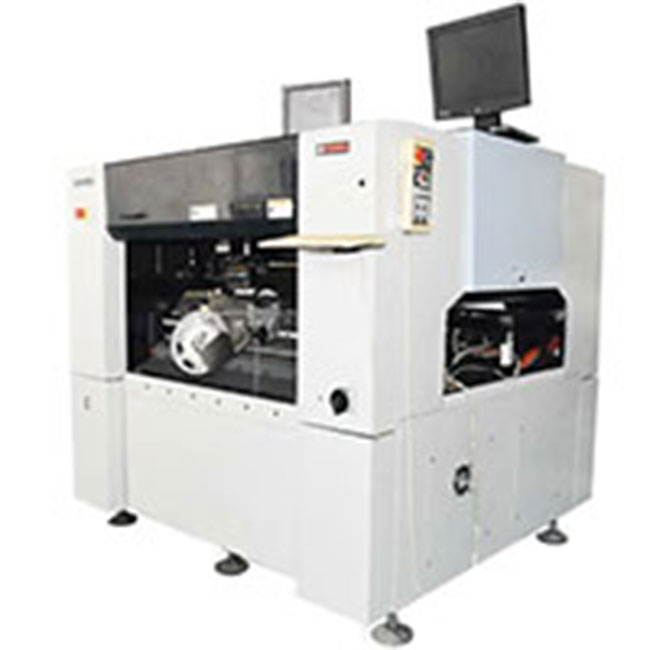

Yamaha YV100XE Pick and place machine
1. This model is a medium-speed multi-function placement machine, which can be used to paste larger chip components such as 0201.0402.0603.0805.1206.3528 and IC.QFP.SOT.SOP.SOJ.PLCC.BGA. Connectors and other heterogeneities Components.
2. The theoretical speed of this model is 0.18S per point, and the theoretical speed is 20,000 points per hour.
3. The largest PCB that can be pasted: max457x407mm. The smallest PCB that can be attached: min50x50mm
4. At present, it can be changed to a 1.2-meter-long LED board according to different customer needs.
5. The thickness of the substrate can be pasted 0.4mm-3.0mm PCB
6. The conveying direction of the substrate is generally from right to left, and the direction of the board can be changed as needed.
7. Generally, 90 types of components can be placed, referring to 8mm feeder.
8. Except the feeder can be installed and can be pasted, tray packaging; tubular; bulk packaging can be pasted (more flexible performance)
9. &Dongshun Technology, refers to 8mm feeder.
10. Except the feeder can be installed and can be pasted, tray packaging; tubular; bulk packaging can be pasted (more flexible performance)
11. The overall dimensions of the machine L1650xW1450x1450mm
12. The incoming power can be connected to three-phase AC200V; AC380V; (0.6 square incoming line is enough)
13. Weight: 1580KG
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
