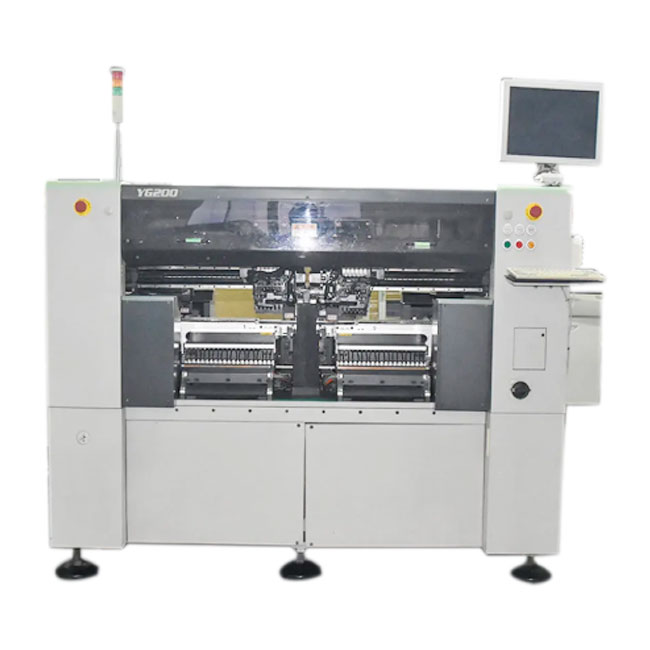

Yamaha YG200L Pick and place machine

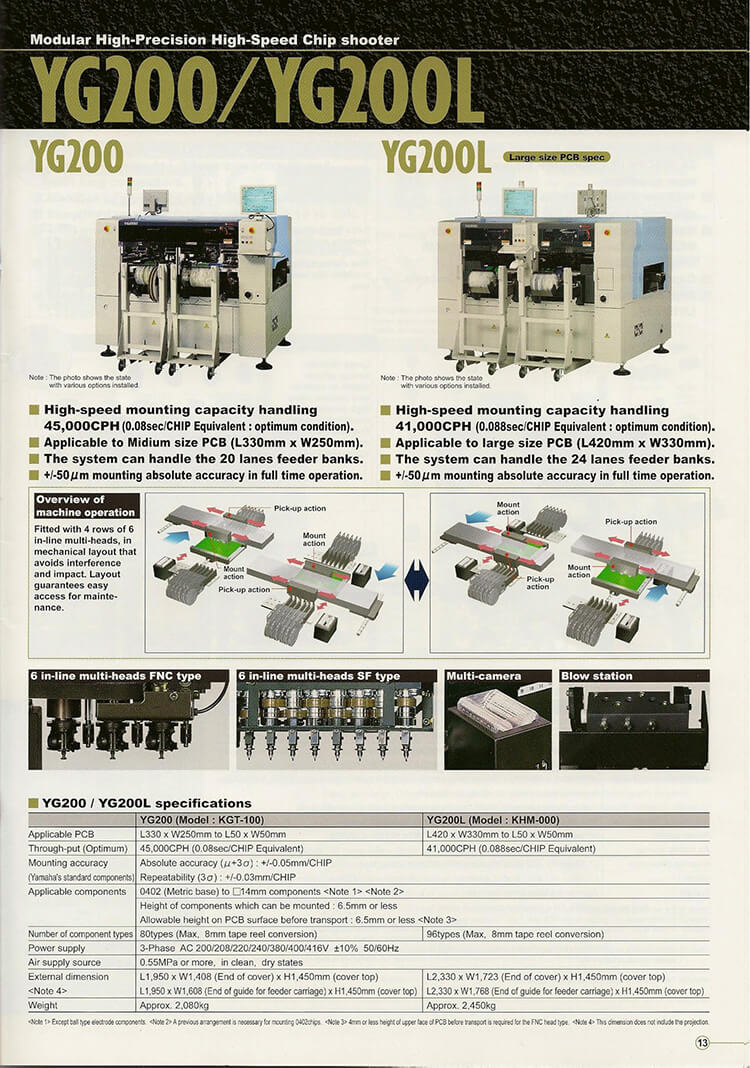

High speed chip shooter Yamaha YG200L (Model : KHM-000)
Applicable PCB: L420×W330mm to L50×W50mm
Through-put (Optimum): 41,000CPH(0.08sec/CHIP equivalent)
Mounting accuracy: (Yamaha's standard components)
Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, repeatability(3σ): +/-0.03mm/CHIP
Applicable components: 0402 (Metric base)to 14*mm components
Height of components which can be mounted: 6.5mm or less
Allowable height on PCB surface before transport 6.5mm or less
Number of component types: 96 types(Max, 8mm tape reel conversion)
Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%
50/60HzAir supply source 0.55MPa or more, in clean, dry states
External dimension:
L2,330×W1, 732(End of cover)×H1, 450mm (cover top)
L2,330×W1, 768(End of guide for feeder carriage)×H1, 450mm (cover top)
Weight approx. 2450kg
| MachineModel | YG200L |
| ApplicablePCB | L420x~W330mm to L50x~W50mm |
| Through-put(Optimum) | 0.08sec/CHIP |
| Mountingaccuracy(Yamaha’sstandardcomponents) | Absoluteaccuracy(μ+3σ):±0.05mm/CHIP |
| Repeatability(3σ):±0.03mm/CHIP | |
| Applicablecomponents | 0402mmto□14mmIC,CSPs,QFPs |
| Feederbase | Frontandrearfeederbase |
| Numberofcomponenttypes | 96types(Max,8mmtapereelconversion) |
| Powersupply | 3-PhaseAC380V,4.0Kw |
| Externaldimension*2 | L2,330~W1,723~H1,450mm |
| Weight | Approx.2,450kg |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
