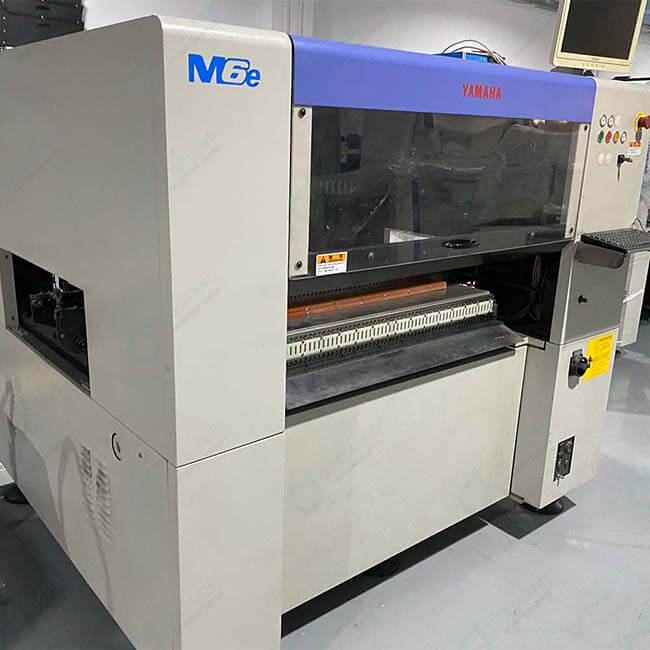

Yamaha I-pulse M6E Pick and place machine
1. High-Speed Mounting: The iPulse Yamaha M6E SMT Mounter offers impressive speed, enabling fast and efficient component placement, significantly reducing production cycle times, and increasing throughput.
2. Precision Placement: With advanced vision systems and high-accuracy placement heads, the iPulse Yamaha M6E ensures precise component placement, ensuring reliable solder connections and optimal PCB assembly quality.
3. Versatile Component Handling: This SMT mounter supports a wide range of components, including small chips, fine-pitch ICs, and odd-shaped parts, providing flexibility for diverse production needs and enhancing manufacturing capabilities.
4. User-Friendly Interface: The iPulse Yamaha M6E features an intuitive and user-friendly interface, simplifying programming, setup, and monitoring. Operators can easily optimize production processes and quickly adapt to changing requirements.
| Item | Specifications |
| Board size | L50 x W50mm to L460 (Max. L1200 OP) x W410mm |
| Board thickness | 0.5 to 2.0mm |
| Board flow direction | Left to Right |
| Board transfer speed | Max. 466 mm/sec, soft stop function |
| Placement speed A *1 | 6-head: 0.14 sec/CHIP, 0.38 sec/TSOP(32 pin) |
| 3-head: 0.22 sec/CHIP, 0.55 sec/TSOP(32 pin) | |
| Placement speed B *2 | 6-head: 0.65 sec/QFP (100 pin) |
| 3-head: 0.8 sec/QFP (100 pin) | |
| Placement accuracy (μ + 3σ) | CHIP ±0.050mm, QFP ±0.035mm |
| Placement angle | ±180°, resolution 0.0055° |
| 6-head Z-axis control | AC Servomotor, resolution 0.0015mm |
| Component height | 20mm (Preplaced components: Max. 10.5mm) |
| Applicable components | 01005 (option) to SOP, PLCC, QFP, BGA, CSP, connectors, odd-form components, etc. |
| Component package | 8 to 56mm tape, Stick, Tray |
| Multi language display | English, Chinese, Korean and Japanese |
| Board locating method | Board edge or tooling hole (option), front reference |
| Component types | 120 types (8mm tape conversion) |
| Board transfer height | 900 ± 20mm |
| Machine dimensions, weight | L 1,755 x D 1,480 x H 1,470mm, approx. 1,680kg |
| Power | 3-phase 200, 208, 220, 240, 380, 400, 415, 440V ±10%, 50/60Hz |
| Power consumption, capacity | 0.71kW (Max. power consumption), 3.1kVA (power capacity) |
| Air and consumption | 0.45Mpa or more, 81 (6-head) or 41 (3-head)Nl/min. A.N.R. |
| *1 Simultaneous pickup by 6/3 heads, inpidual placement, with scan camera, under optimum conditions | |
| *2 Consecutive pickup by 6/3 heads, inpidual placement, with fixed camera, under optimum conditions | |
| Specifications and appearance are subject to change without prior notice. | |
