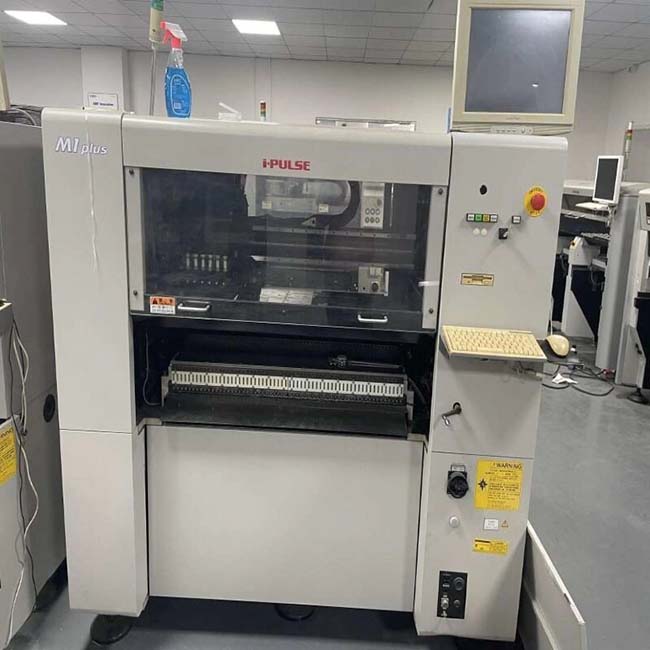

Yamaha I-pulse M1 Pick and place machine
Placement Speed : 0.16 sec/CHIP
Applicable PCB : 460*410mm
Applicable Part : 0603 ~ SOP,PLCC,QFP,BGA and CSP,connector
Accuracy: CHIP +/- 0.06mm
| Chip Mounter(I-Pulse) | ||
| Sector | Specification(M1+) | |
| Board Size(LxWxT)mm | Max.460 x 410 x 2.0㎜, Min.50 x 50 x 0.5㎜ | |
| Conveyorflow/speed | L → R 420㎜/sec(with soft-stop) | |
| TactTime |
0.16sec/chip,0.38sec/TSOP(32pin) Up ward Vision :0.75sec/QFP(100pin) |
|
| Repeatability | ±0.06㎜(chip), ±0.035㎜(IC) | |
| Mounting angle | ±180°, 0.02°increment | |
| Max.componentheight | 15mm | |
| Components applicable | 0603 ~ SOP,PLCC,QFP,BGA and CSP,connector | |
| Componentpackaging | 8 ~ 56㎜ tape,stick, bulk and tray | |
| No.of componenttypes | 120 type (8㎜ tape) | |
| Board transfer height | 900±20㎜ | |
| Dimensions(LxWxH)mm | 1750 x 1500 x 1846 | |
| Weight | 약1,800㎏ | |
| Power supply | 200V±10% 3Phase AC50/60Hz,4.0kVA | |
| Airsupply | 0.5MPa,69Nℓ/min | |
| Maker | I-Pulse | |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
