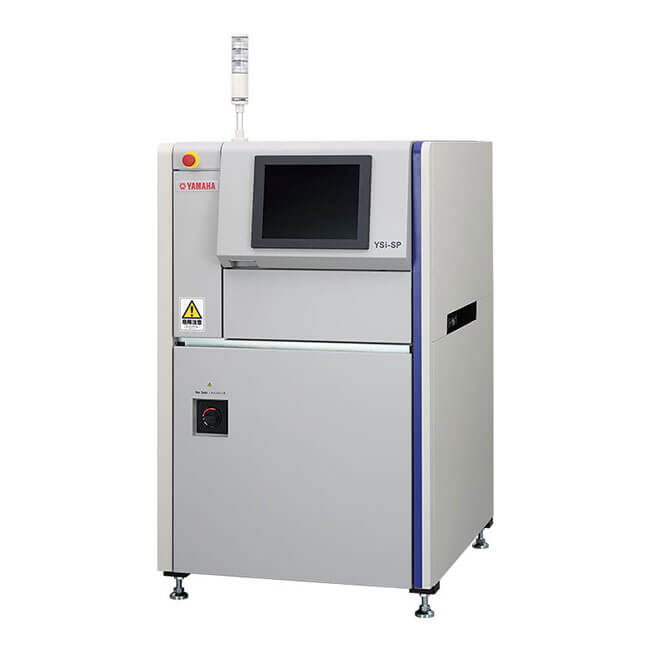

YAMAHA YSi-SP SPI Machine

Applicable PCB:L510×W460mm～L50×W50mm
Horizontal resolution: 25μm
Height resolution:1µm
Weight:Approx. 550 kg

BASIC INFO

YAMAHA YSi-SP SPI Machine

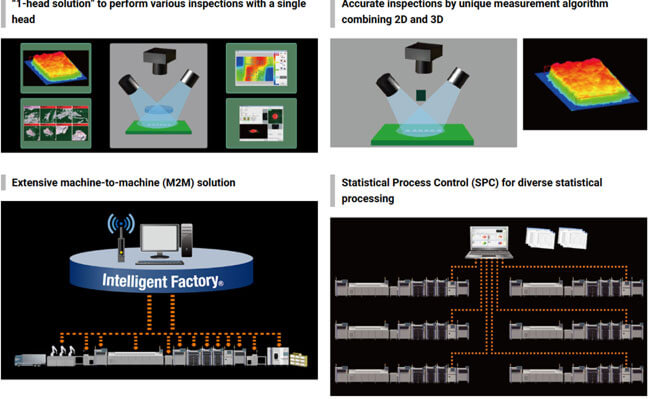

“1-head solution” to perform various inspections with a single head

Achieves high-accuracy high-speed inspections using 3D+2D inspection, image resolution switch-over and more

A thorough and extensive machine-to-machine (M2M) solution

Statistical Process Control (SPC) for diverse statistical processing

Optional features to enable handling various products

Function and Feature

Feature

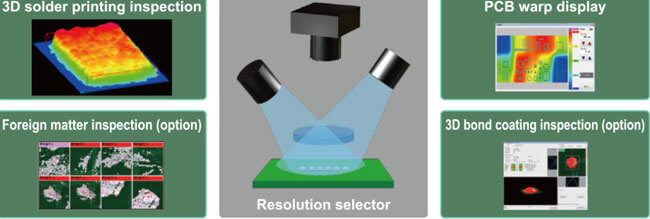

“1-head solution” to perform various inspections with a single head

One head type supports all types of inspections. Eliminate all types of losses such as time and cost to increase your actual productivity.

Achieves high-accuracy high-speed inspections using 3D+2D inspection, image resolution switch-over and more

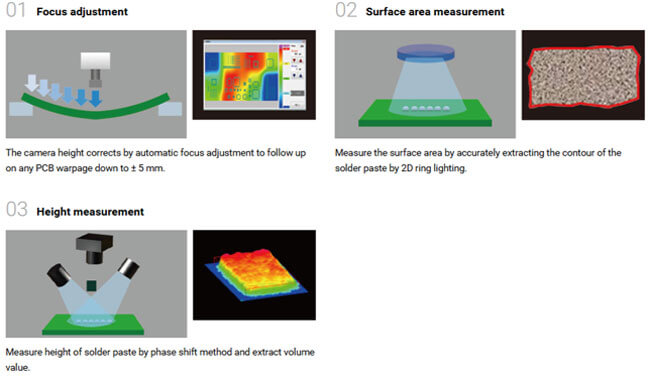

Highly accurate 3D inspections by applying unique 3-step algorithm

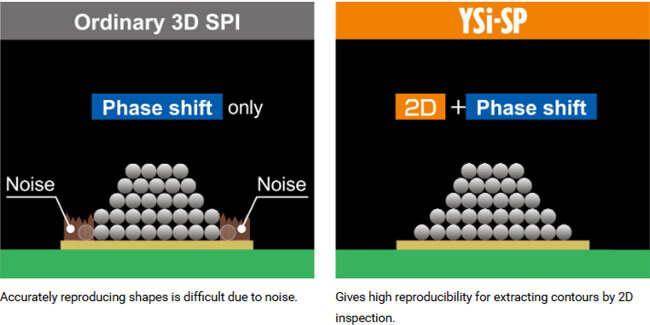

High precision 2D contour extraction

Reproduces accurate shapes by combining with phase shift method.

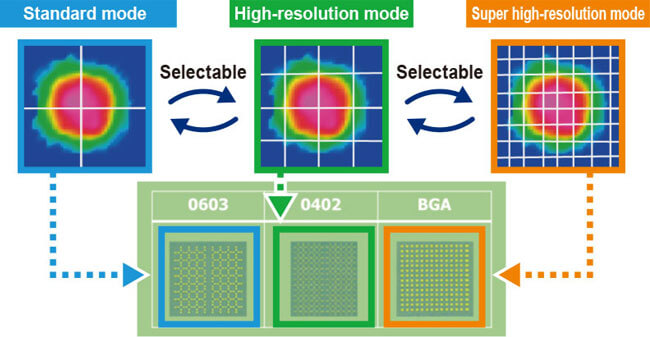

Select from a maximum 3 types of resolution

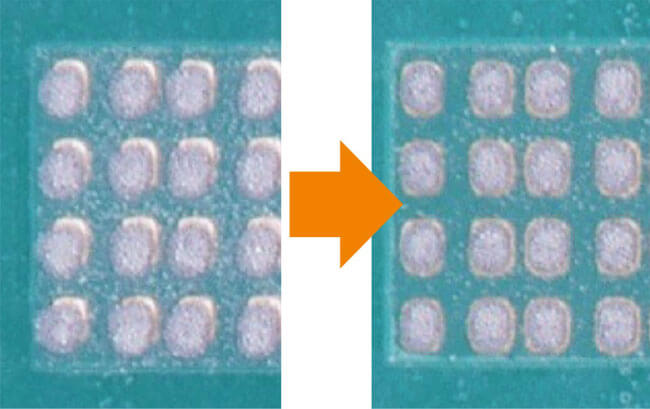

Super high-resolution technology makes automated inspections on the same type PCB while switching between a maximum of 3 resolution levels Unit flexibly handles components from super-tiny components to large-size components.

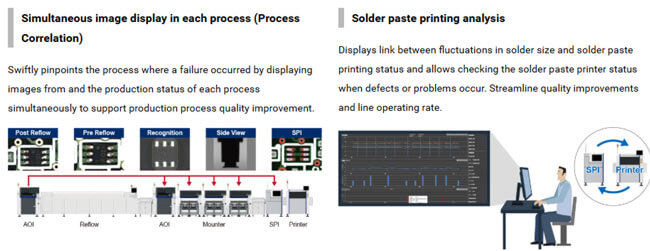

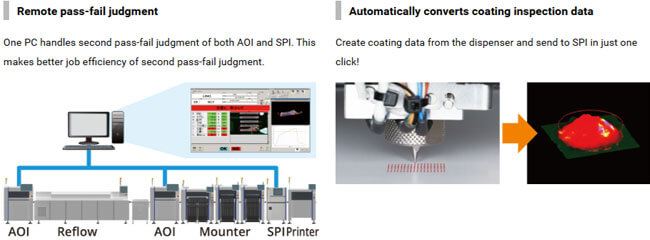

Extensive machine-to-machine (M2M)solution

The Yamaha brand can provide all main equipment needed for component mounting in one package and by linking SPI with each piece of equipment creates a production line having boosted quality and productivity.

Automatic setup changes

Settings such as production line PCB data and conveyor width are sequentially sent from upstream units by scanning ID such as for barcodes listed on PCB and instruction sheets to automatically to shorten the time needed to switch setups and make changeovers.
