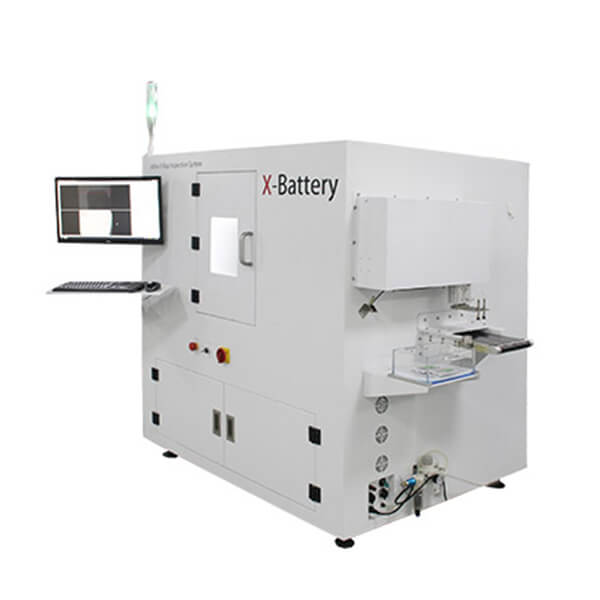

XB8200 Battery X-Ray Inspection Machine
XB8200 is mainly used for automatic online detection of positive and negative alignment during the production of square polymer soft pack batteries. The battery X-Ray inspection system is based on the fully automatic optical detection developed on the basis of an image detection technology system. Obtain image information, automatically measure the alignment deviation between the positive and negative electrodes of the battery, automatically select bad products, and automate the entire testing process.
Features of XB8200 Battery X-Ray Inspection Machine
1.Automatic measurement of battery positive and negative alignment.
2.Automatically discriminate good products and bad products, and sort bad products automatically.
3.High detection efficiency, built-in two sets of manipulators alternate movement, to achieve high-speed online detection.
4.The doors related to the product optics are equipped with an interlock function, and the industrial X-Ray machine cannot work without closing any door.
5.The inlet and outlet can be connected to the production line.
6.By storing bad battery picture information in real time, historical records can be traced.
7.Save the inspection image and the original image at same time, and save the inspection data in a table for easy viewing and analysis.
8.It is easy to change the product model, and the different models can be changed and debugged quickly, usually in 10-20 minutes.
Specification
|
XB8200 battery x-ray inspection machine |
|
|
X-Ray Tube Source Specification |
|
|
Tube Type |
Reflective Sealed Micro-Focus X-Ray Source |
|
Voltage |
90 KV |
|
Operating Voltage Range |
40-90KV |
|
Operating Current Range |
10-200 μA |
|
Max Output Power |
8 W |
|
Micro Focus Spot Size |
5-15μm |
|
Flat Panel Detector Specification |
|
|
Flat-panel Type |
CMOS flat panel detector |
|
Pixel Matrix |
1172×1100 |
|
Field of View |
58mm×54mm |
|
Resolution |
10.1Lp/mm |
|
Frame（1×1) |
30fps |
|
A/D Conversion Bit |
14bits |
|
Dimensions |
L2390mm×W1250mm×H1700mm |
|
Input Power |
220V 10A 50-60HZ |
|
Net Weight |
Approx 1550KG |
|
Radiation |
＜1μSv/h |
