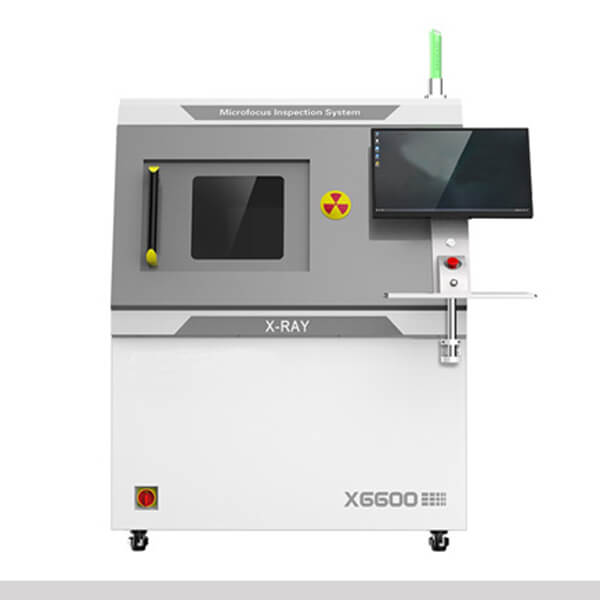

X6600 Offline X-Ray Inspection Machine
X6600 is a cost-effective general-purpose offline precision microfocus X-Ray inspection equipment. It is suitable for the inspection of various factory offline products. This AXI inspection machine has the characteristics of high magnification, multi-angle inspection, and a large-area inspection platform.
Features of X6600 Offline X-ray Inspection Machine
1.Meet the needs of the general industrial X-ray machine and have a wide range of applications.
2.A high-resolution design can obtain the best image in a very short time.
3.Infrared automatic navigation and positioning, quickly select the shooting location.
4.CNC detection mode, fast automatic detection for multi-point array.
5.Oblique multi-angle inspection makes it easier to detect sample defects.
6.Software operation developed is simple and easy to use, low operating cost.
7.The X-ray tube and FDP can be rotated at the same time (0-60°), making the detection image more clear and intuitive.
Specification
|
X-Ray Tube Source Specification |
|
|
Type |
Sealed Micro-Focus X-Ray Tube |
|
Voltage |
90 KV/130KV |
|
Operating Voltage Range |
40-90KV/130KV |
|
Operating Current Range |
10-200 μA/300μA |
|
Max Output Power |
8 W/39W |
|
Micro Focus Spot Size |
5-15μm |
|
Flat Panel Detector Specification |
|
|
Type |
TFT Industrial Dynamic FPD |
|
Pixel Matrix |
1536×1536 |
|
Field of View |
130mm×130mm |
|
Resolution |
5.8Lp/mm |
|
Frame（1×1) |
20fps |
|
A/D Conversion Bit |
16bits |
|
Dimensions |
L1360mm×W1240mm×H1700mm |
|
Input Power |
220V 10A/110V 15A 50-60HZ |
|
Max Sample Size |
540 mm×440mm |
|
Control System |
Industrial PC WIN7/ WIN10 64bits |
|
Net Weight |
Approx 1170KG |
|
Radiation |
＜1μSv/h |
|
Max Tilt Angle |
65 degree |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
