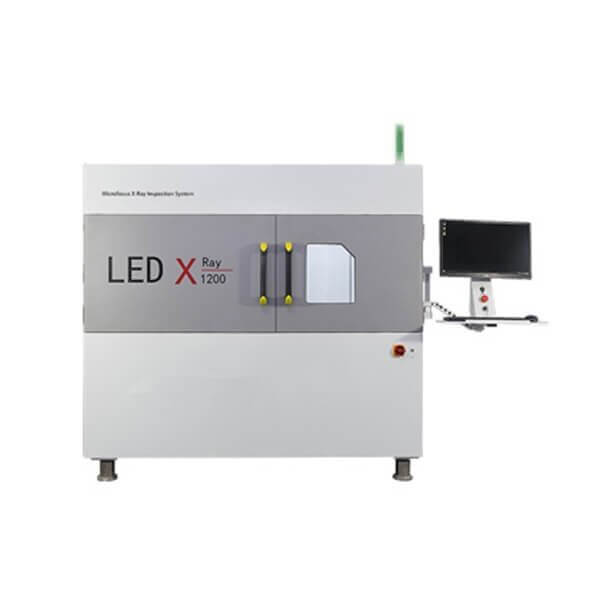

X1200 Offline X-Ray Inspection Machine
X1200 is a precise microfocus X-Ray inspection equipment for large-scale PCB board, 5G communication motherboard, LED light bar and other large area inspections. Its effective inspection area can reach 1200mm×600mm, which can realize large-scale automatic inspection.
Features of X1200 Offline Xray Inspection Machine
1.Large detection area 1200mmX600mm
2.BGA X-ray source and FPD X/Y motion cover inspection area.
3.CNC can edit the inspection program to realize automatic inspection and judgment.
4.Accept customized services according to different product sizes (optional).
5.Automatic test plan customization (optional).
6.Software operation is simple and easy to use, low operating cost.
Specification
|
X-Ray Tube Source Specification |
|
|
Type |
Sealed Micro-Focus X-Ray Tube |
|
Voltage |
90 KV (130KV optional) |
|
Operating Voltage Range |
40-90KV/130KV |
|
Operating Current Range |
10-200 μA/300μA |
|
Max Output Power |
8 W/39W |
|
Micro Focus Spot Size |
5-15μm |
|
Flat Panel Detector Specification |
|
|
Type |
TFT Industrial Dynamic FPD |
|
Pixel Matrix |
1536×1536 |
|
Field of View |
130mm×130mm |
|
Resolution |
5.8Lp/mm |
|
Frame（1×1) |
20fps |
|
A/D Conversion Bit |
16bits |
|
Dimensions |
L2040mm×W1280mm×H1870mm |
|
Input Power |
220V 10A/110V 15A 50-60HZ |
|
Max Sample Size |
1200mm×600mm |
|
Control System |
Industrial PC WIN7/ WIN10 64bits |
|
Net Weight |
Approx 2350KG |
|
Radiation |
＜1μSv/h |
