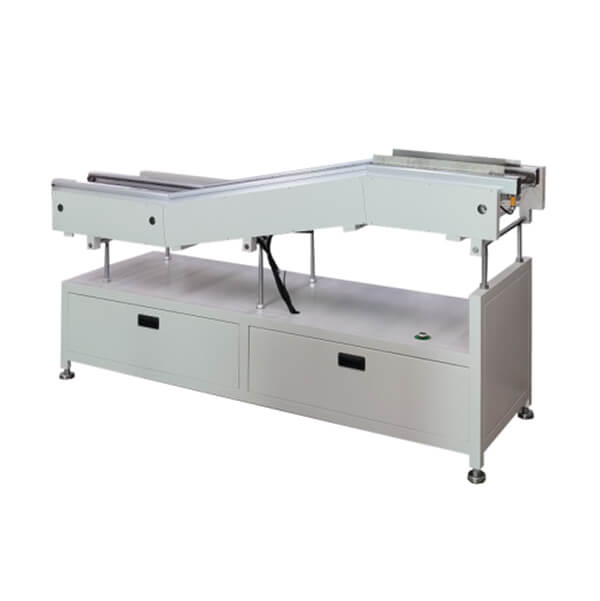

Wave Soldering outfeed conveyor

Adjustment width: 80-400mm
Transport Height ( Board In): 900-1200±50mm
Transport Height ( Board Out): 750-900±50mm
Power Supply: 220V 50/60Hz

BASIC INFO

Wave Soldering outfeed conveyor

1、Sheet metal + 40 * 40 iron square welding powder coating processing structure, stable, strong, durable.

2、Three sets of 15W speed control motors are used, which are stable and reliable.

3、Divided into three sections of transmission, the first section for parallel transmission, the second section for slope transmission, the third section for parallel transmission.

4、Using anti-slip belt and silicone chain to transmit three groups of motors to control the transmission independently.

5、Using special aluminum machined parts to make guide rail and adjust the width at the same time.

6、Using metal conveyor wheels and imported STK bearings.

7、Width adjustment over the board size 80-400mm.

8、Machine body size 1500*600mm

9、Board In Height: 900-1200mm adjustable

10、Board Out Height: 900-1200mm adjustable

11、Adjustment of lifting height adopts 20mm standard screw + nut.

12、Can stop 3 pieces of boards

13、Standard with SMEMA communication signal line

Adjustment width	80-400mm
Transport Height ( Board In)	900-1200±50mm
Transport Height ( Board Out)	750-900±50mm
Transport Direction	L-R (R-L option)
Transport Speed	0-1500mm(adjustable)
Power Supply	220V 50/60Hz
Total Power	200W
Power Consumption	100W
Control Section	Three step control
Motor transmission	Three 15W speed regulating motors control the speed of three sections
Sensor	Hong Kong Ruilin Sensor
Control System	PCB Control
Cooling Fan	6 PCS
Foot Cup	M16*120mm 4pcs
