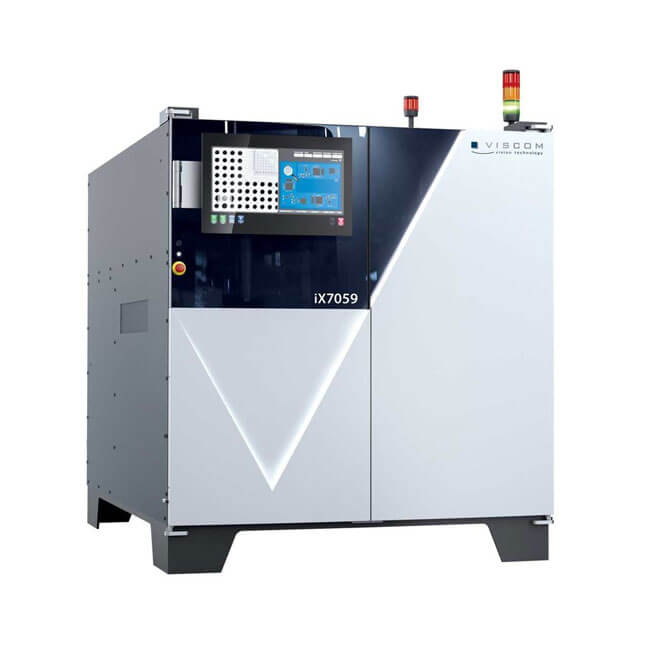

VISCOM iX7059 Device 3D X-ray Inspection Machine
iX7059 Device Inspection – Innovative X-ray inspection for maximum product quality and process efficiency
The iX7059 Device Inspection X-ray system offers a cost-effective solution for fast and reliable final inspection across a wide range of devices and applications that demand flawless, day-to-day functionality. Its versatility supports inspection of products including smartphones, tablets, notebooks and desktop PCs to smart watches, earphones, Smartglasses, ring scanners, cartridges, braizings, RFID wristbands and hearing aids.
Whether in the production line or as a stand-alone unit, the system identifies hidden faults such as foreign objects that can lead to short circuits or missing components that may later impair functionality. The robust and maintenance-friendly design of the iX7059 Device Inspection allows 24-hour operation, ensuring short cycle times and a large inspection depth guarantee compliance with high quality standards with maximum productivity.
Seamless networking with other Viscom systems enhances process control. Viscom offers powerful tools for statistical monitoring and documentation of the production steps, enabling insightful analysis of inspection results. The inspection programs can be quickly created and optimized with ease, an advantage for adapting to frequent product changes.
Advantages at a glance
Options for targeted oblique radiation (2.5D)
3D X-ray system
Networking with other Viscom systems
24-hour opertion
Inspection Scope

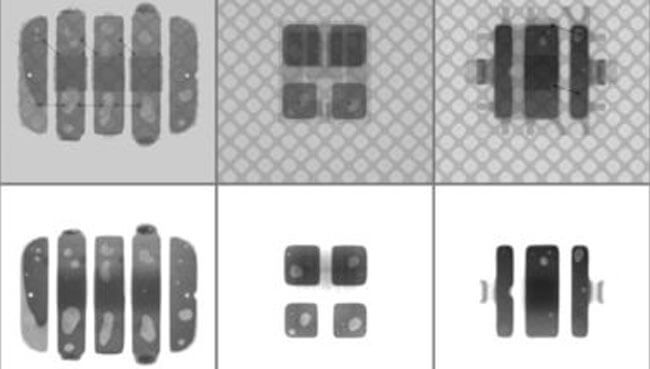

Comparison of 2D AXI and 3D AXI slice images of different LEDs

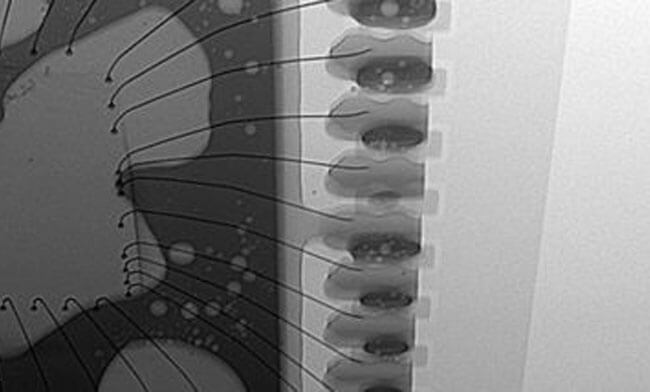

Poor QFN, insufficient solder volume

HIGHLIGHTS
Seamless, perfect handling of PCB assemblies – even for very large PCBs measuring up to 1,600 mm
Powerful X-rays with 130 kV or optionally 180 kV
High-precision inspection in 2D, 2.5D and 3D
High-quality 3D AXI volume calculation with planar CT
Additional vertical slices for optimum analyses and dependable verification
CONNECTIVITY
Global libraries, global calibration: transferability to all systems
Automated grayscale value calibration for consistent inspection results
Traceability, statistical process control, offline programming, multiline verification
Viscom Quality Uplink: effective networking and process optimization
Interfaces: SMEMA, IPC Hermes Standard (optional)
INSPECTION
Scope of inspection:
Air inclusions/blow holes (voids) in surface soldering, presence, offset, excessive/insufficient solder, solder bridge, solder balls, solder sputter, soldering defects, THT fill level and pin height, nonwetting, contamination, damaged component, missing or incorrect component, imperfect shape, tombstoning, lifted lead, billboarding, supine, twist, wick-up effect (optional)
