UJI NXT M3 III Pick and place machine

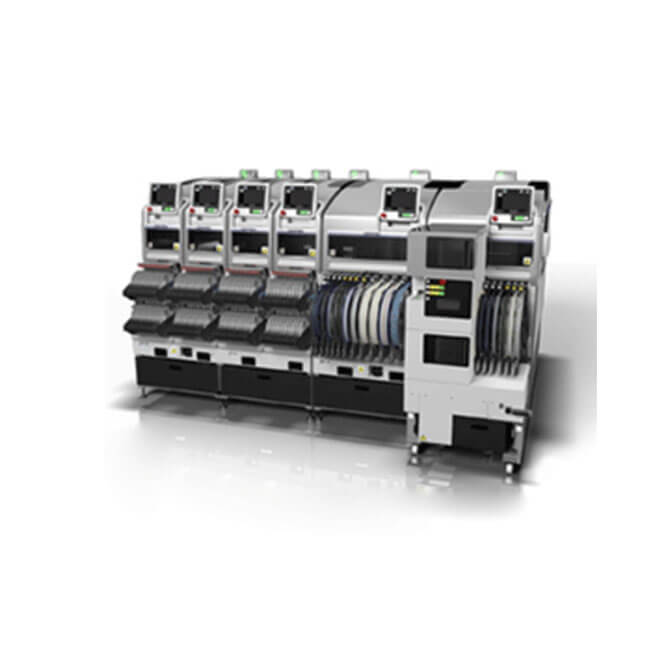

The FUJI NXT III SMT pick and place machine is a highly productive, multi-functional modular placing machine. Built for speed, it features a faster XY robot and tape feeders, as well as a newly developed "flying vision" parts camera, mean increased placing ability for all part sizes and types. It configures an H24G high-speed head that achieves 37,500 cph (chips per hour) (Productivity priority mode) per module, a 44% improvement from the fastest speed of the NXT II. The NXT III SMT placement machine supports the smallest parts extended to 0201 mm Part, +/- 0.025 mm placing accuracy used in mass production with extreme placing accuracy. Many of the main units from the FUJI NXT II such as placing heads, nozzle stations, feeders, tray units, and feeder pallet exchange units can be used on the NXT III without any modifications.
Specification
Applicable PCB size (LxW) 48 x 48 mm to 250 x 510 mm (double conveyor)* 48 x 48 mm to 534 x 510 mm (double conveyor)*
48 x 48 mm to 250 x 610 mm (single conveyor) 48 x 48 mm to 534 x 610 mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.
Part types Up to 20 types of parts (calculated using 8 mm tape) Up to 45 types of parts (calculated using 8 mm tape)
PCB loading time For double conveyor: 0 sec (continuous operation) For double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules) For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules)
Placement accuracy H24G +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00 H24G +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
(Fiducial mark standard) V12/H12HS +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 V12/H12HS +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00
Placement Head Accuracy H04S/H04SF +/-0.040 mm (3sigma) cpk≥1.00 H08M/H04S/H04SF +/-0.040 mm (3sigma) cpk≥1.00
H08/H04 +/-0.050 mm (3sigma) cpk≥1.00 H08/H04/OF +/-0.050 mm (3sigma) cpk≥1.00
H02/H01/G04 +/-0.030 mm (3sigma) cpk≥1.00 H02/H01/G04 +/-0.030 mm (3sigma) cpk≥1.00
H02F/G04F +/-0.025 mm (3sigma) cpk≥1.00 H02F/G04F +/-0.025 mm (3sigma) cpk≥1.00
GL +/-0.100 mm (3sigma) cpk≥1.00 GL +/-0.100 mm (3sigma) cpk≥1.00
* The placing accuracy is obtained from tests conducted by Fuji.
Productivity H24G 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode) H24G 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode)
V12 26,000 cph V12 26,000 cph
H12HS 24,500 cph H12HS 24,500 cph
H08 11,500 cph H08M 13,000 cph
H04 6,500 cph H08 11,500 cph
H04S 9,500 cph H04 6,500 cph
H04SF 10,500 cph H
