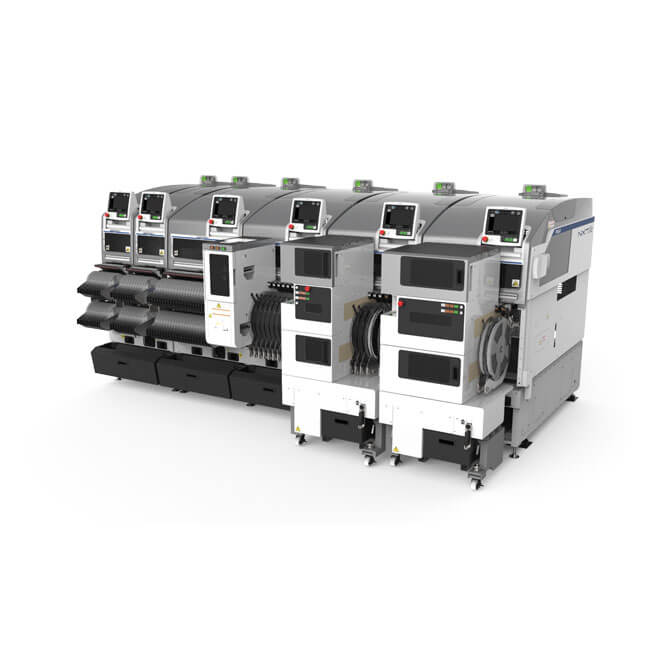

FUJI NXT IIIC Pick and place machine

Panel size (L x W)：48 x 48 to 305 x 380 mm
accuracy：±0.025 mm Cpk ≥ 1.00
Throughput：H24S / H24A 35,000 cph
Throughput::Standard mode 35,000 cph

BASIC INFO

FUJI NXT IIIC Pick and place machine

This machine has the same features of the NXT III but in a smaller footprint. This allows you to maximize production in a restricted floorspace environment.
Fuji Scalable Placement Platform

The NEW NXT III is a highly productive, multi-functional modular placing machine. Built for speed, it features a faster XY robot and tape feeders, as well as a new H24 head that achieves 35,000 chips per hour. The NXT III supports the smallest parts being used in mass production with extreme placing accuracy.

NXT IIIc Specifications
Machine			M3 IIIc	M6 IIIc
Feeder slot quantity			20	45
Panel size (L x W)	Single conveyor		48 x 48 to 305 x 380 mm	48 x 48 to 610 x 380 mm
	Double conveyor	Single conveyance	48 x 48 to 305 x 290 mm	48 x 48 to 610 x 290 mm
		Dual conveyance	48 x 48 to 305 x 170 mm	48 x 48 to 610 x 170 mm
Heads			H24S, H24A, DX 1, V12, H12HS(Q), H08M(Q) 1, H08(Q), H04SF, H04, H02F, H01, OF *1, G04F(Q), GL
Throughput	H24S / H24A	Standard mode	35,000 cph
		Productivity priority mode	42,000 cph
	H08M	Standard mode	13,000 cph
		Productivity priority mode	14,000 cph
	H02F	Standard mode	6,700 cph
		Productivity priority	7,400 cph
		mode
Placing accuracy	H24S / H24A	Standard mode	±0.025 mm Cpk ≥ 1.00
		Heightened accuracy mode *2	±0.015 mm Cpk ≥ 1.00
	H08M		±0.040 mm Cpk ≥ 1.00
	H02F		±0.025 mm Cpk ≥ 1.00
Part supply units			Tape feeders, stick feeders, tray units, others
Power source			3-phase 200 to 230 V ± 10 % (50/60 Hz)
Air			0.5 MPa (ANR)
*1 Available on M6 IIIc.
*2 Based on optimal conditions at Fuji placing rectangular chips (high-accuracy tuning).
