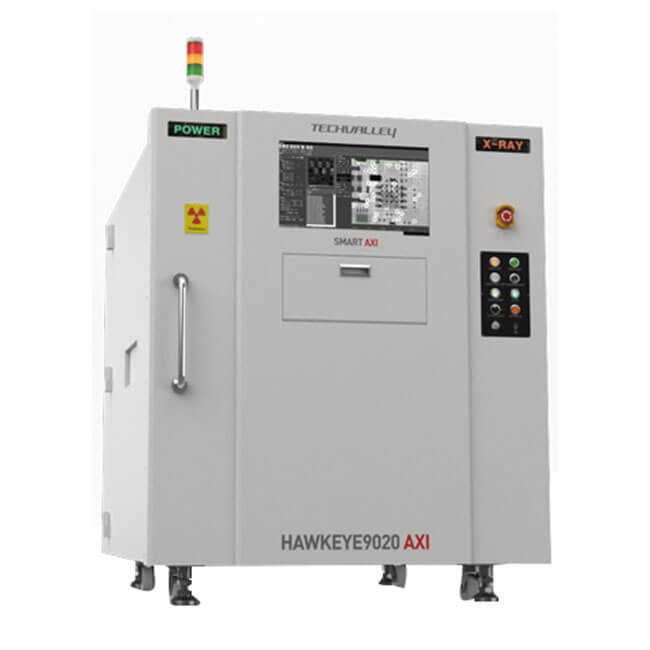

Techvalley HAWKEYE9020 2.5D X-ray Inspection Machine
2.5D In-Line X-ray Inspection Equipment
It is a revolutionary automated X-ray inspection system that has built-in image analysis software and automatically determines the goodness and badness of the inspection sample using the image acquired by the inspection equipment itself. It is optimized for industry and precision parts inspection of mass production system structure requiring full inspection. The 2.5D system is a principle that examines acquired images after shooting at various angles and orientations. The AXI 2.5D system is an automated in-line inspection system designed for high-speed inspection in SMT. It is best solution for the in-line inspection of double-sided PCB parts.
Automated inspection equipment with overlap resolution techniques such as Laminography Slice CT, i-TOP, and PTH
Realization of high-speed inspection of 0.4 to 0.8 seconds per point (depending on type of inspection)
Use Gerber Data to set up fast, easy Macro (Teaching)
Customer data management such as MES, SPC, and Review Function can be applied
Inspection Item

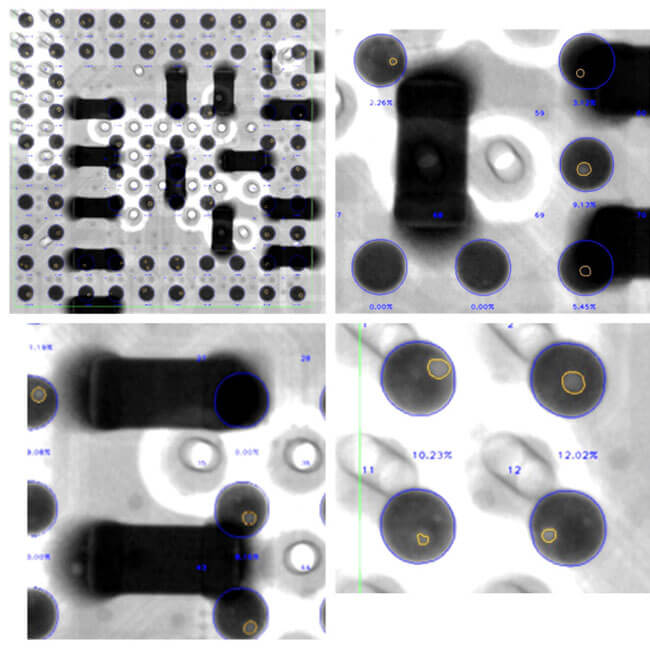

Inspection Image
Specification
| X-ray Source | 110kV / 25W / 5㎛ Focal Spot Size |
| Image Detection System | 6.9M Pixels / 49㎛ Pixel size |
| Inspection Area | Max.400㎜x400㎜/ Min.150㎜x100㎜ |
| Utility | Power : 220VAC / Air : 5kgf/cm² |
| Dimension & Weight | (W)1,392㎜ X (D)2,105㎜ X (H)1,529㎜ / 2,500kg |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
