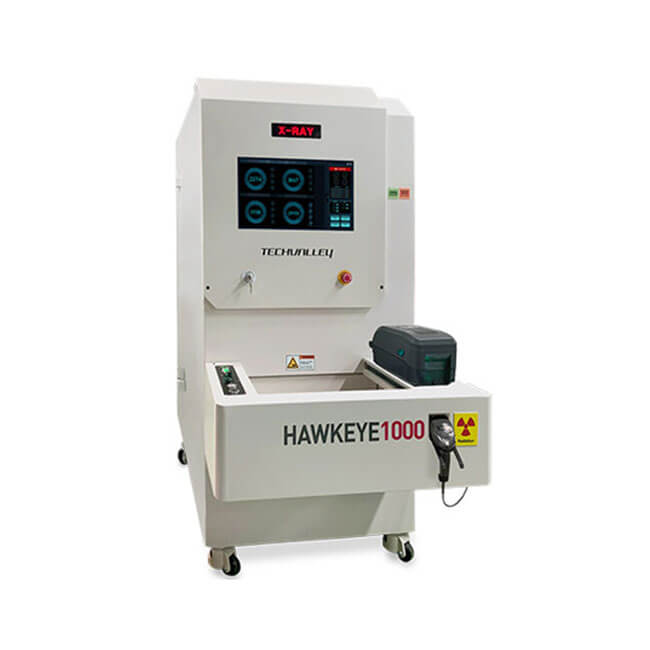

Techvalley HAWKEYE1000 X-ray Inspection Machine
The HAWKEYE1000 only needs one button to count various components automatically in a few seconds. The HAWKEYE1000 can also count up to four reels (180 mm) simultaneously. Various chips and components are counted, with the results sent directly to the SMD material management server (ERP system). Also during this process, a new barcode label is printed for the purpose of updating off-line records. Techvalley has been improving their X-ray Chip Counter series since 2013, to the current fifth generation Chip Counter. We are evolving the ‘Automated X-ray Chip Counter’ to ensure advanced, automatic counting for a wider range of components, faster and efficiently with more flexibility.
Counting up to 4 reels(180mm) simultaneously
Dramatically reduces labor costs and kitting times
Connect integration ERP/MES system
Automated, accurate and fast counting (180mm~380mm)
User-oriented UI configuration & Touch monitor

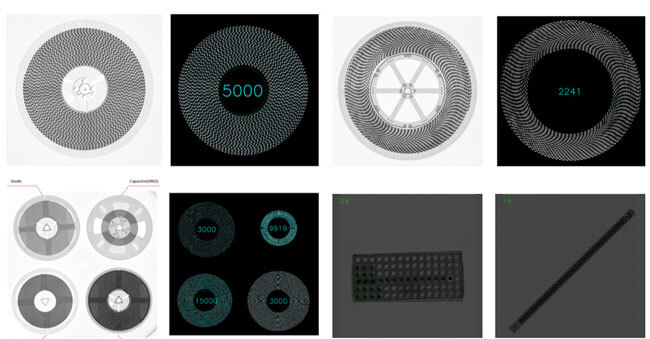

Inspection Image
Specification
| X-ray Source | 65kV / 260W / 400㎛ Focal Spot Size |
| Image Detection System | 17inch FPXD / 140㎛ Pixel size |
| Inspection Area | Max. 180㎜ Reel / Min. 0402 Chip |
| Utility | Power : 220VAC / Air : 5kgf/cm² |
| Dimension & Weight | (W)900㎜ X (D)1,640㎜ X (H)1,923㎜ / 1,000kg |
| ETC. | 2D barcode reader & Label printer |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
