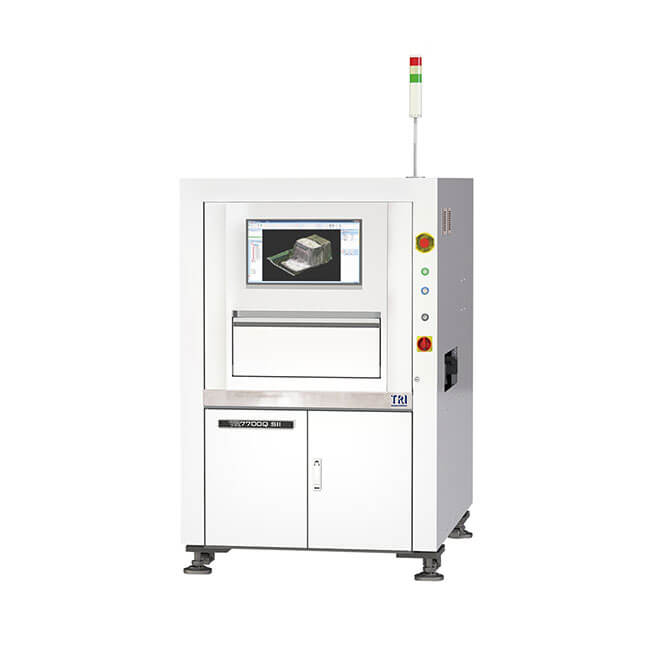

TRI TR7700Q SII AOI Machine
The TR7700Q SII is powered by TRI's Smart Programming with auto-learning functionalities, flexible inspection algorithms, and metrology capabilities for exact measurements and data exchange for Smart Factory applications. The advanced mechanical stability The TR7700Q SII has a Higher Accuracy, and improved Gauge R&R with Stop-and-Go Imaging Technology.
Features
• Industry-Leading Inspection Speed, up to 57 cm2/sec
• Multiple 3D Technologies: Zero-escapes Inspection
• High Accuracy Inspection with Improved GR&R
Specification
|
Imaging Method |
Stop-and-Go |
|
Top Camera |
12 MP/21 MP High Speed Camera |
|
Angle Camera |
N/A |
|
Imaging Resolution |
9.8 µm, 10 µm, 12 µm, 15 µm (factory setting) |
|
Lighting |
Multi-phase True Color LED |
|
3D Technology |
Quad Digital Fringe Projectors |
|
Max. 3D Range |
@ 9.8 μm: 20 mm |
|
@ 10 μm: 40 mm |
|
|
@ 12 μm: 40 mm |
|
|
@ 15 μm: 40 mm |
|
|
Inspection Performance |
|
|
Imaging Speed |
@ 9.8 μm: 40 cm²/sec |
|
@ 10 μm: 25 cm²/sec |
|
|
@ 12 μm: 37 cm²/sec |
|
|
@ 15 μm: 57 cm²/sec |
|
|
Motion Table & Control |
|
|
X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
|
X-Y Axis Resolution |
1 μm |
|
Board Handling |
|
|
Max PCB Size |
TR7700Q SII: 510 x 460 mm |
|
TR7700LQ SII: 765 x 610 mm |
|
|
TR7700Q SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane |
|
|
PCB Thickness |
0.6-5 mm |
|
Max PCB Weight |
TR7700Q SII: 3 kg. Optional: 5kg |
|
TR7700LQ SII: 3 kg (6.61 lb). Optional: 5 kg (11.02 lb) / 12 kg (26.46 lb) |
|
|
TR7700Q SII DL: 3 kg. Optional: 5kg |
|
|
Top Clearance |
@ 9.8 μm: 50 mm |
|
@ 10 μm: 50 mm |
|
|
@ 12 μm: 50 mm |
|
|
@ 15 μm: 50 mm |
|
|
Bottom Clearance |
40 mm |
|
Edge Clearance |
3 mm. Optional: 4 mm / 5 mm |
|
Conveyor |
Inline Height: 880 – 920 mm |
|
|
|
|
* Optional: 940-965 mm (SMEMA compatible) |
|
|
Inspection Functions |
|
|
Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component |
|
Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
|
Dimensions |
|
|
WxDxH |
TR7700Q SII: 1100 x 1720 x 1710 mm |
|
TR7700LQ SII: 1365 x 1720 x 1710 mm |
|
|
TR7700Q SII DL: 1100 x 1820 x 1710 mm |
|
|
|
|
|
Note: not including signal tower, signal tower height 515 mm |
|
|
Weight |
TR7700Q SII: 910 kg |
|
TR7700LQ SII: 1025 kg |
|
|
TR7700Q SII DL: 960 kg |
