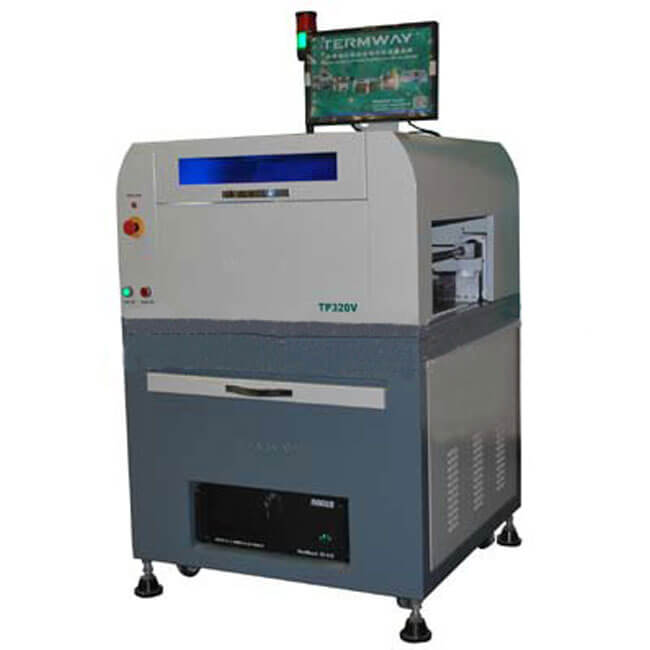

TERMWAY TP320V Pick and Place Machine

PCB board size:350×210mm
Max moving range:410×320mm
speed:4000-4500cph
accuracy:±0.06mm

BASIC INFO

TERMWAY TP320V Pick and Place Machine

Product Description:

TP series is a fully automatic desktop SMT placement machine, it can be mounted various of component through a vacuum nozzle, it is currently on the market cost-effective automatic placement equipment. The machine is suitable for most of the SMD chip components 0402, SOIC, PLCC and QFP IC; visional system meets high precision of 0.65mm pitch BGA or QFP IC chips such as the placement, in additional to the standard round reference point, no screen printing solder paste and square PCB and ring type through-hole pad also can be as a reference point.

Technique parameter:
TP320V Summary
1. automatic mounter with precision spare parts
2. High precision machine after annealing treatment, high frequency oscillation and natural aging
3. Scraping movement planer makes the accuracy reach 0.01mm
4. Precision level P guide rail ( repeatability of 0.02mm and good abrasion resistance
5. Patented mount model
6. Electric intelligent feeder
7. Chemical cromalin hardening process on PCB seat and feeder seat. (SMC spare part)
8. The only one desktop mounter that can place 50 types of component
9. Patented out-look design
10. Powerful data import function, any formats of PCB file can be imported. a new program can be finished in 10 minutes
11. Software control system for placement, can match famous brand Siemens
12. The desktop visional mounter with off- line program function
13. The one can realizes remotely maintain and analysis and inspection function
14. Equips good quality industrial control computer
15. Equips Tunable optical generator to satisfy different colors for the identification of component
16. Silence, noise never go up to 50 db
17. Actual speed: 5000cph
18. Software reminds of maintainance period

Features:

1. cast structure, the bottom platform and Y-axis gantry structure uses casting process in SMT line, which effectively guarantee a reliability and stability for long-term use.
2. it uses high precision guides to improve placement accuracy.
3. high-resolution industrial camera to complete the visual position mount of high-precision components.
4. vision system can automatically identify MARK point to improve production efficiency and chip placement accuracy.
5. Automatically visual programming without input device coordinates by hand. Programming is simple, easy for beginners to learn.
6. A small IC tray as standard configuration
7. 5 nozzle as standard configuration, the software will remind you to replace the nozzle.
8. cost-effective automatic placement machine, it is most suitable for small scale production, research and personal use.

Optional:

1.GF electric feeder (CF type as alternative models suitable for low-cost production and R&D use)

2. Nozzle

Technical Parameter

Model	TP320V
PCB board size	350×210mm
Max moving range	410×320mm
Max moving range of Z axis	10mm
Typical Mounting speed	4000-4500cph
Max mounting speed	5000 cph
Repeating accuracy	±0.06mm
Position	Visional Position
Component available	SMD capacitor and resistor 0603 and IC (below 20mm)
Programme	Video study/ Keyboard input
Driving method	Use industrial synchronously driving belt
Belt feeder	Feeder 8mm,12mm,16mm,24mm optional
Feeder number	1、24 pcs of 8MM GFTA-08S at left side
Feeder number	2、22 pcs of 8MM GFTA-08S at right side（when no IC tray）
IC tray num	1 at most，in the situation, TP300V just can place 24 pcs of 8MM GFTA-08S feeder
Operation system	WINDOWS XP
Compressed air	80psi（0.5Mpa），air flow 80L/M
Power supply	220v，50Hz，2kw
Weight	350kg
Dimension	780×850×1200mm
