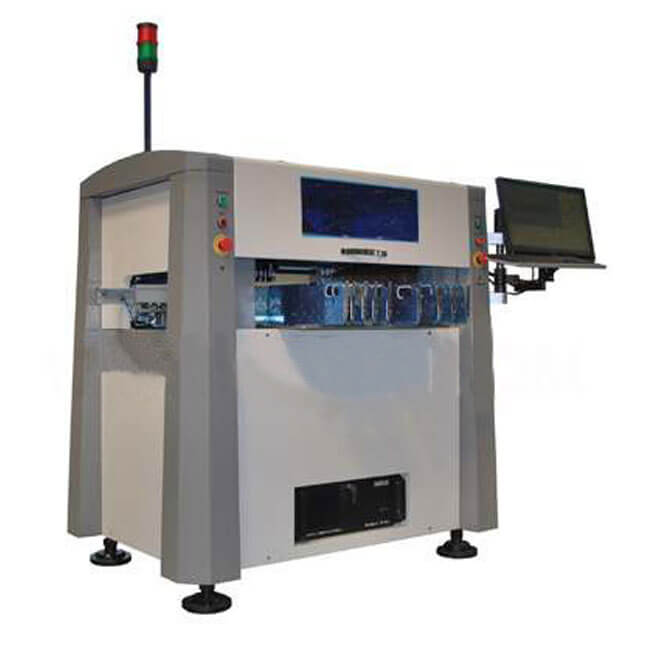

TERMWAY T4 Pick and Place Machine
Product Description:
1、The only one high precision pick and place machine that standard configuration can mount 0201 components
2、The max size of QFP:48*48mm
3、It can mount above 0.4mm pitch QFP, also can mount BGA.
4、Configure the world famous grating ruler，achieving high precision motion control.
5、The Used SMT's killer，seckill all kinds of used SMT within RMB200000.
Technique parameter:
T4 unique feature
1.The only one high precision pick and place machine that standard configuration can mount 0201 components
2.The max size of QFP:48*48mm
3. It can mount above 0.4mm pitch QFP, also can mount BGA.
4. Configure the world famous grating ruler，achieving high precision motion control.
T4 general characteristics
1、The whole machine adopts casting structure，the bottom of the platform and X Y axis gantry structure adopt casting technique，effectively improve SMT production reliability and stability of long-term use
2、Using imported precision square rail, effectively improve the placement accuracy.
3、Using a unique high-definition optical prism industrial cameras to complete mount high-precision components.
4、With the vision position system, can automatically identify the MARK point, effectively improve SMT production efficiency and placement accuracy.
5、automatic visional programming, it is no need to input the coordinates of components by manual, programming is simple, easy to learn for beginners and it is convenient and practical.It can universally import the PCB data, it is most suitable for mass production in middle scale.
6、Standard configure a set of minitype IC tray.
7、The placement configure 8 nozzles.
8、Cost-effective automatic placement machine, it is most suitable for mass production in middle scale and scientific research 、military industrial enterprises high quality usage.
9、The placement configure a set of PCB board transport system, it can seamless connection with stencil printer 、handplace desk and reflow oven.
10、Standard configuration of automatic nozzle replacement system, it can freely change 22 different nozzles.
Optional part
1、8mm，12mm，16mm and 24mm automatic feeder of GF type
2、nozzle(6 nozzles, you can customize different nozzles)
3、QS48 component（mount 48*48mm IC）
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
