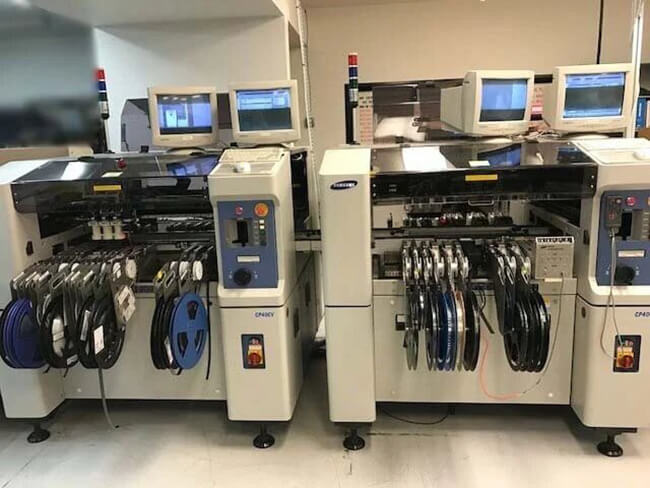

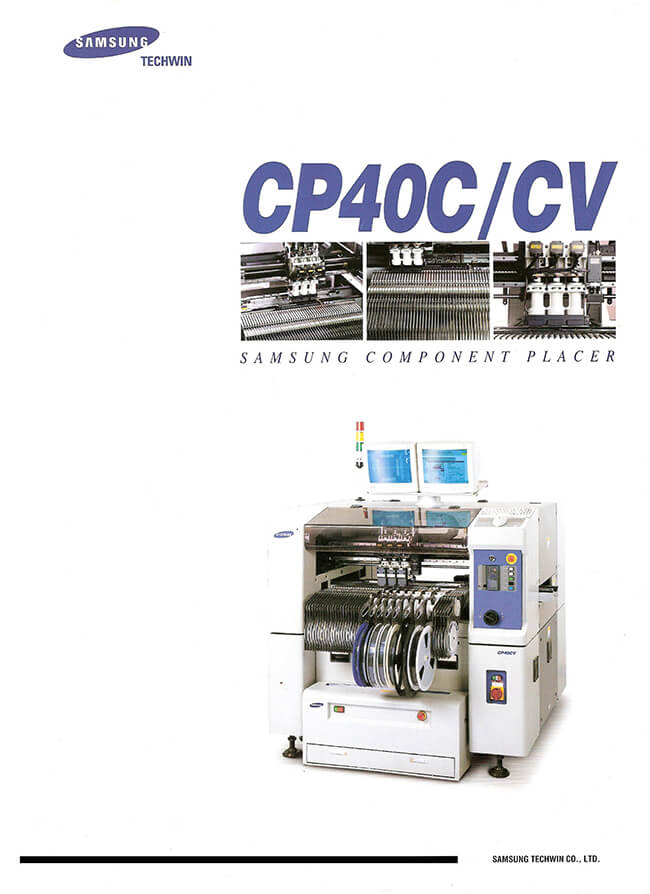

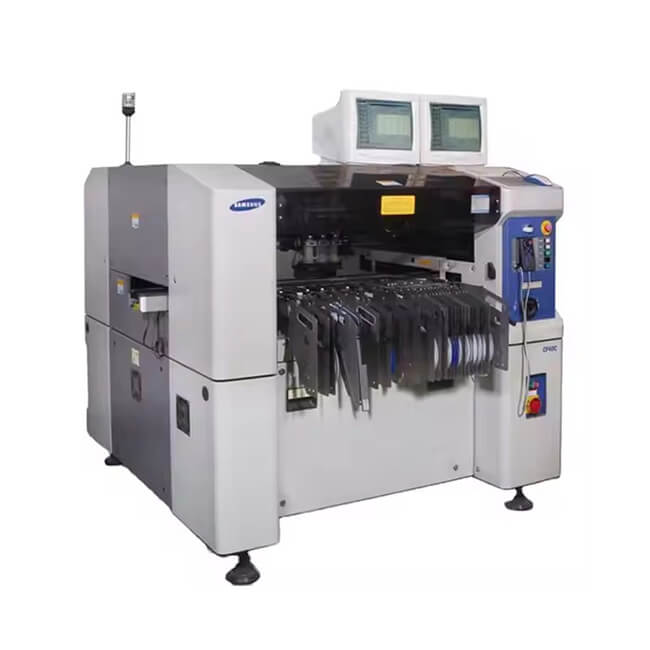

Samsung CP40CV Pick and Place Machine
Popular Samsung CP40CV, great workhorse and reliable machine. With 3 laser alignment heads centering devices up to 24mm square and an upward vision camera for larger and fine pitch devices and BGA's making the CP40CV and excellent flexible placer.
Features:
- Fully Serviced
- Repainted and looking almost NEW
- Fitted with 15" LCD Samsung Monitors and NEW Teach Box Assy

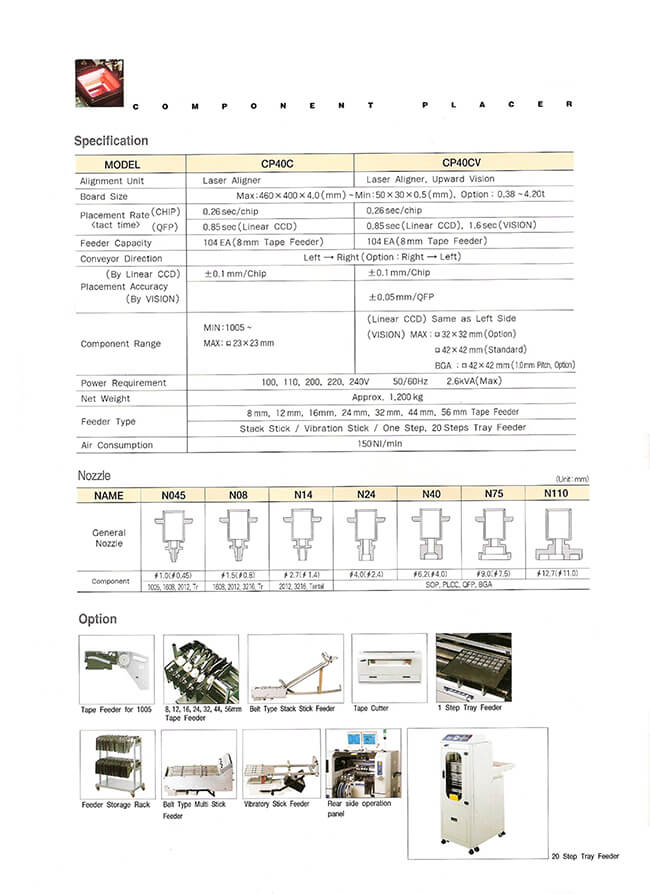

- 0.26 sec/comp 13'800cph (Optimum)

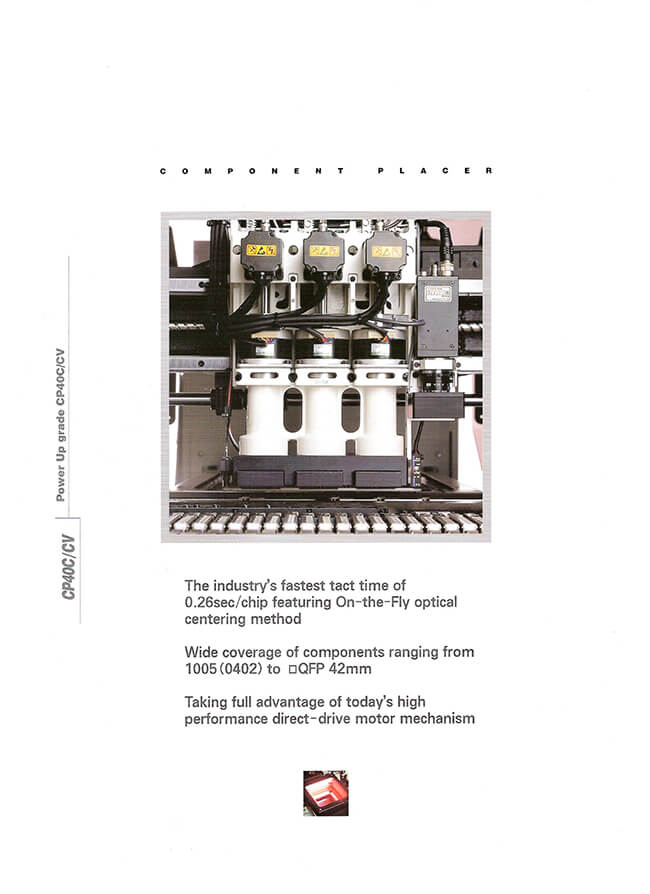

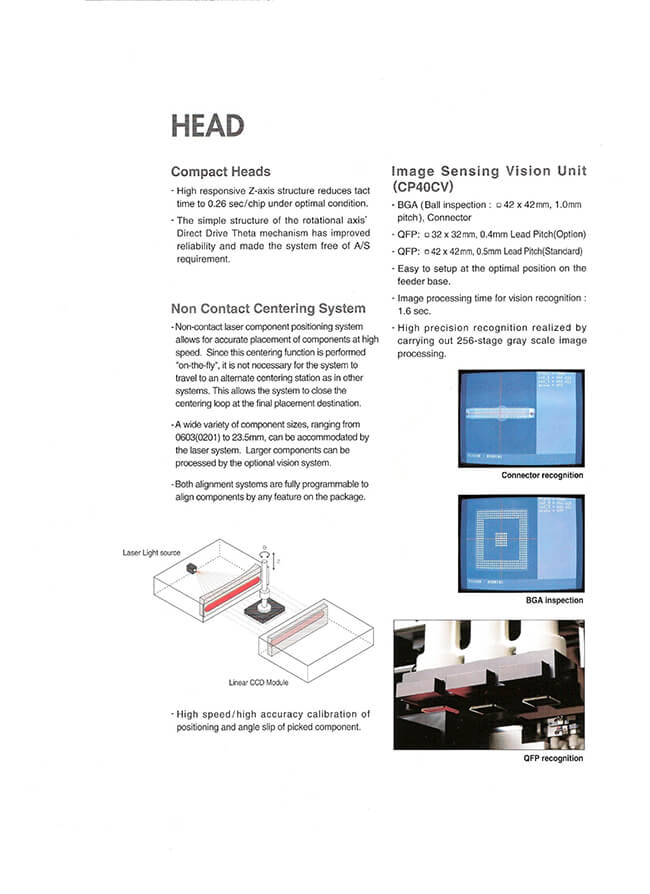

- Non contact on the fly optical centering system
- Accurately places devices up to 24mm square (Cyber Optic Laser Aligner)
- 0.5mm lead pitch QPF's up to 42mm square as standard using 45mm FOV Camera, additional camera's available upon request from stock. (optional cameras: 0.4mm Lead pitch and 0.3mm lead pitch)

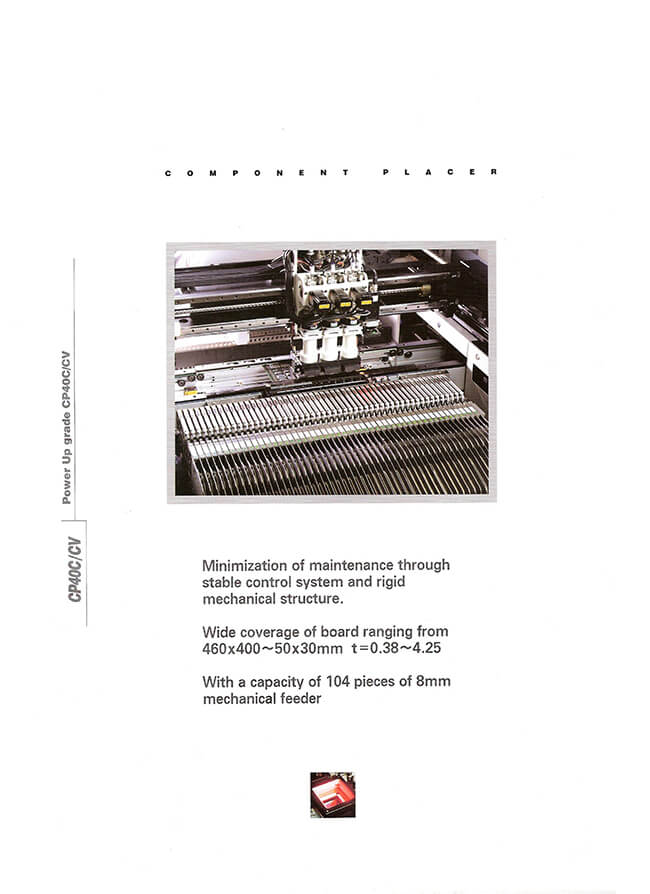

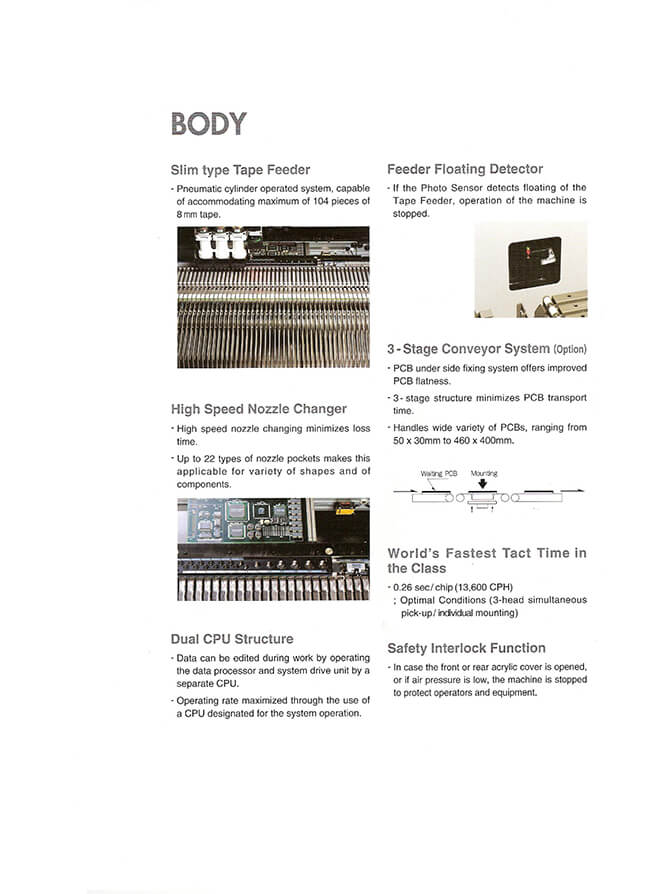

- Up to 104 x 8mm feeder Capacity (Less 5 if vision camera used)
- Large PCB size 460mm x 400mm
- 3 Stage Buffer Conveyor
- SMEMA, Standard 4 wire

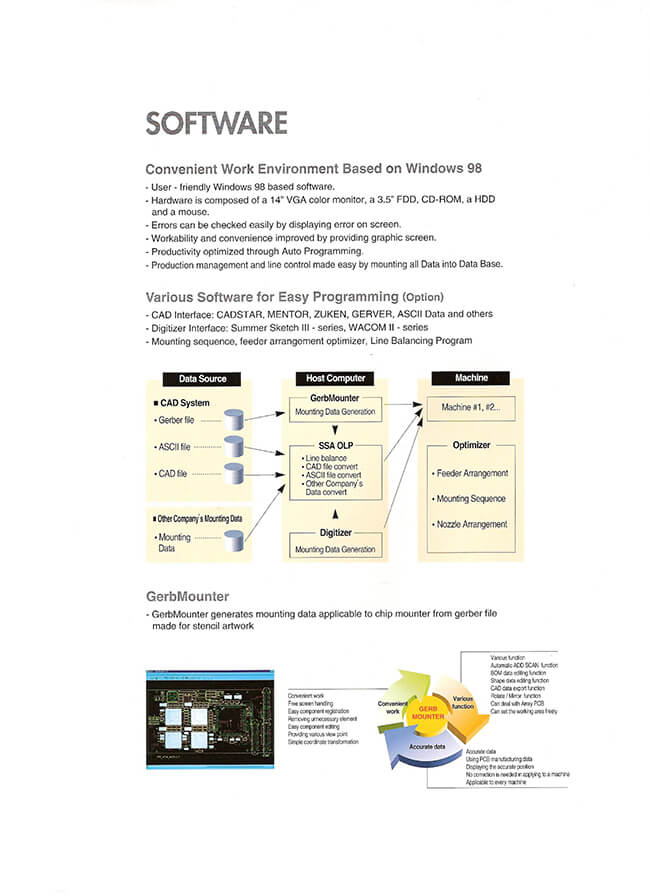

- CAD interface as standard
- Compact footprint, only 1540mm(W) x 1660mm(L)

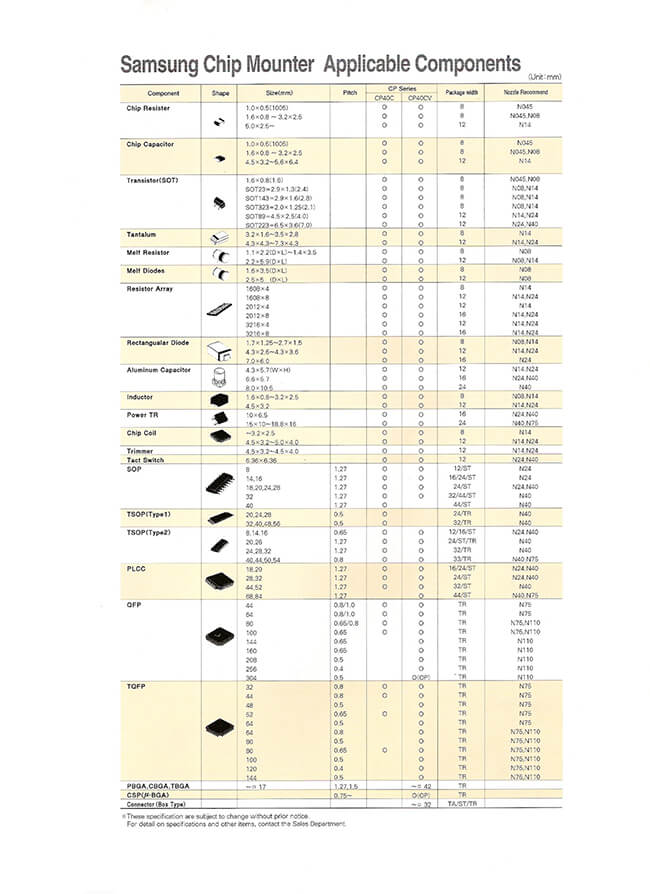

- Large selection of nozzles to cover full range of components
Additional Features:
- Takes Standard CP Feeders, all types: NA/NB/SB/PB/PA
- Great addition to any Existing line to add capacity or fine pitch
- Machine will be fully overhauled by our Experts
- Warranty offered and fully supported by Elite 7 Installations Ltd.

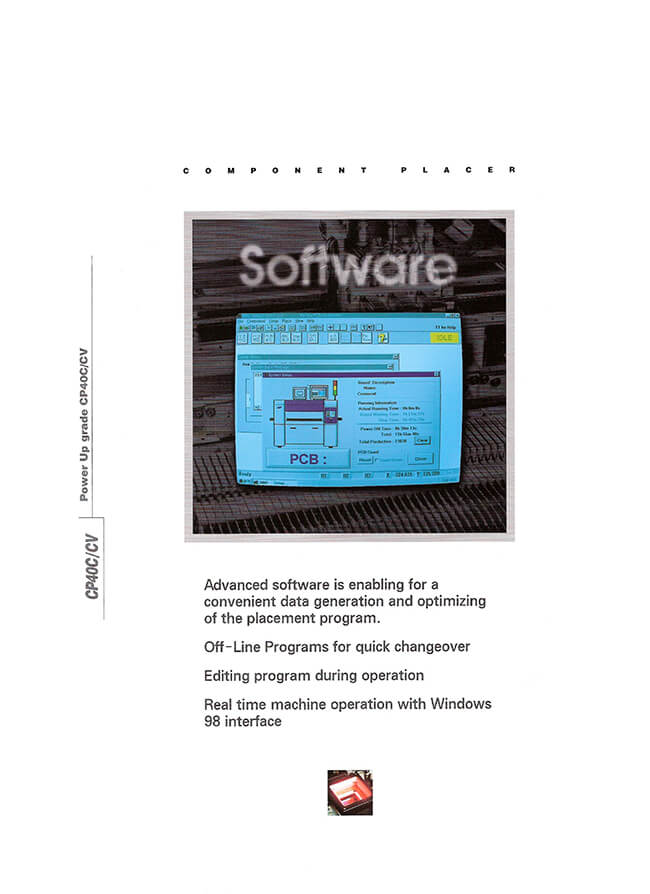

- Latest Software will be loaded
- Fully tested & rebuilt
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
