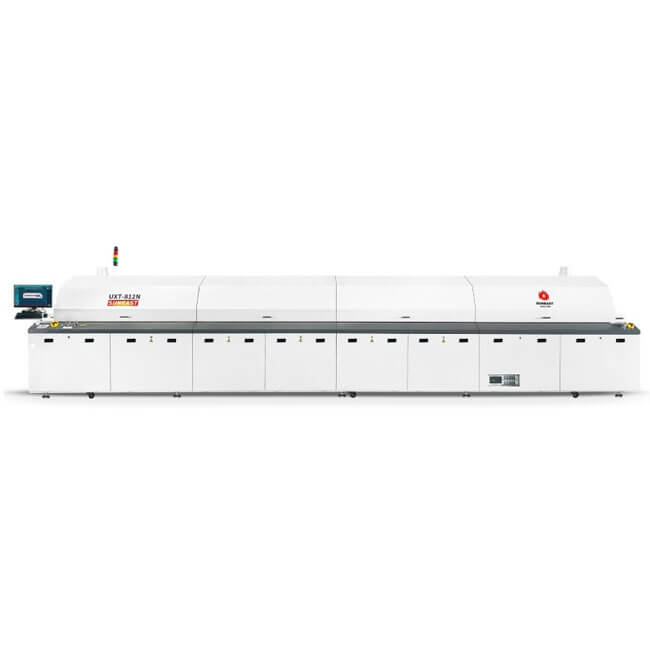

SUNEAST UXT-812/812N SMT Dual tracks N2 Reflow Oven

Heating zone structure:12 heating zones,
Cooling type:3 cooling zones:forced water cooling
Heating zone length: 4390mm
PCB Width: min50mm-max250mm (Dual tracks)

BASIC INFO

SUNEAST UXT-812/812N SMT Dual tracks N2 Reflow Oven

High heat energy, heat balance, lowest energy consumption;

Patented hotair system, hotair convection conduction more efficient, faster heat compensation;

Adopt imported PLC, with high precision of temperature control and profile repetition;

Built-in real-time monitoring system of oven temperature, which can automatically generate furnace temperature curve(option) ;

The data can be tracing and loading toMES system.

Product Details

◆High heat energy, low energy consumption, high power motor matching wind wheel，theoretical and practical verification; under the same conditions set, can ensure the small and large components to achieve the minimum heat absorption difference, and achieve the best thermal balance；

◆The latest thermal insulation technology and the new furnace structure design can effectively reduce the furnace surface temperature and reduce the heat loss；

◆Imported PLC program controller, stable and reliable performance, high precision of temperature control and curve repetition；

◆Double-sided guiderail with special hardening treatment, strong and durable, repeatable use, cost saving up to 50%；

◆Online maintenance of rosin recycling system, modular design, convenient maintenance, reduce maintenance time；

◆Patented hotair system, hotair convection conduction more efficient, faster heat compensation；

◆Built-in real-time monitoring system of furnace temperature，which can automatically generate furnace temperature curve(option) ;

◆Intelligent data can be traced and uploaded toMES system.

Model No	UXT-810/UXT-810N
Model No	Dual tracks
Heating system
Heating zone structure	12 heating zones,
Heating zone structure	24 heating modules
Heating zone length	4390mm
Heating up time	25min
Outlet Exhaust Diameter,valume	2-Φ145,Exhaust demand 10m³/min x2
Cooling system
Cooling type	Three cooling zones:forced water cooling
Cooling zone length	1250mm
Chiller power	5P Water chiller
Conveyor system
Conveyor Type	Chain + mesh belt synchronous transmission
Conveyer Direction	L→R,R→L
Converyer Height	900±20mm
Cmponent Height	Clearance above 30mm,Clearance below 25mm
Conveyor Speed	300mm-2000mm/min
Guide rail structure	Dust free special hardened guide rail
PCB Width	min50mm-max250mm
	(Dual tracks)
	min50mm-max450mm
	(Single track)
Fixed Rail Mode	The front and rear guide rails are fixed,
Fixed Rail Mode	and the middle two guide rails are movable
Control system
Power	AC3Ø 5W380V 50/60HZ
Total Power	117KW
Startup Power	42KW
Normal consumption	13KW
Temp Control Range	Room temperature to 320℃
Control type	PC+PLC Control system
Temp Control accuracy	±1℃
PCB Temp Deviation	±2℃
Data Storage	Process Data and status stotage
Power Outage Protection	Equipped with UPS
Operation Interface	Windows Chinese simplified, English online free switching
N2 area	Full nitrogen filling(The model with "N" refers to the nitrogen model)
MES	Standard
Computer	Commercial computer
General
Dimension(LxWxH)	712017101650mm
Weight	3500-3700kg
Flux recovery system	Standard
Color	Bright wrinkled white
