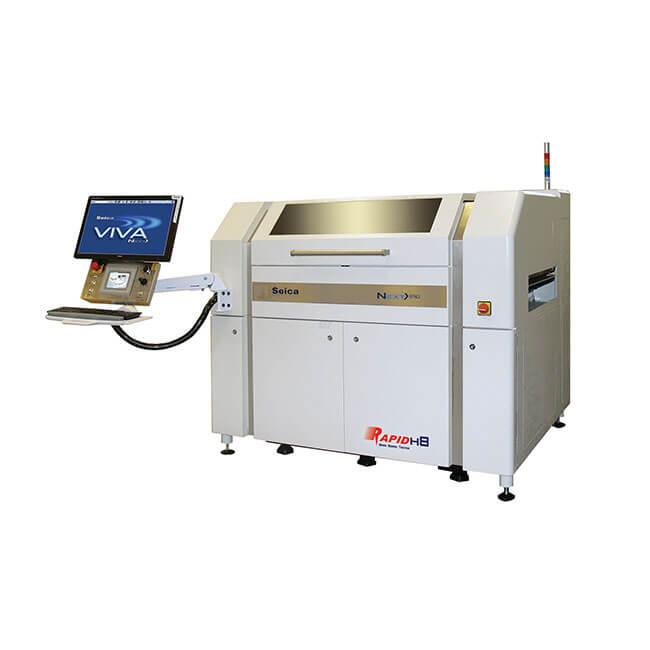

Rapid H8A flying needle plate measurement horizontal double-sided 8-pin
The Rapid H8 Next series light board tester offers high performance in terms of throughput and electrical measurements. It is equipped with 8 completely independent test probes with a speed of up to 9000 cycles per minute. There are 4 probes on each side, which can accurately measure both sides of the PCB. The system allows various types of testing to be performed, such as continuity, isolation, Kelvin testing, resistance and capacitance measurements, and active and passive embedded component testing. The high throughput of this innovative test system helps to integrate it into the production line, using an automated integrated conveyor belt, which is an unparalleled tool that can be used to test many different batches of circuit boards, achieve full automation, and bring speed, accuracy and versatility to the prototype and production environment.
Product Description
The Rapid H8 Next series light board tester offers high performance in terms of throughput and electrical measurements. It is equipped with 8 completely independent test probes with a speed of up to 9000 cycles per minute. There are 4 probes on each side, which can accurately measure both sides of the PCB. The system allows various types of testing to be performed, such as continuity, isolation, Kelvin testing, resistance and capacitance measurements, and active and passive embedded component testing. The high throughput of this innovative test system helps to integrate it into the production line, using an automated integrated conveyor belt, which is an unparalleled tool that can be used to test many different batches of circuit boards, achieve full automation, and bring speed, accuracy and versatility to the prototype and production environment.
Features:
It tests: inner layer, ceramic substrate, flexible circuit board and printed circuit board
8 independent flying needles
2 CCD cameras for top/bottom fiducial markers
540mm x 610mm (21 ″ x 24 ″) test area
High Voltage, High Impedance Isolation Test
Vacuum table as option
Precise probing on small pads and fine pitch
Ultra high speed test
Service Station Embedded Software
Soft contact function
Online testing of embedded components
Powerful brushless motor
Manual and automatic plate loading
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
