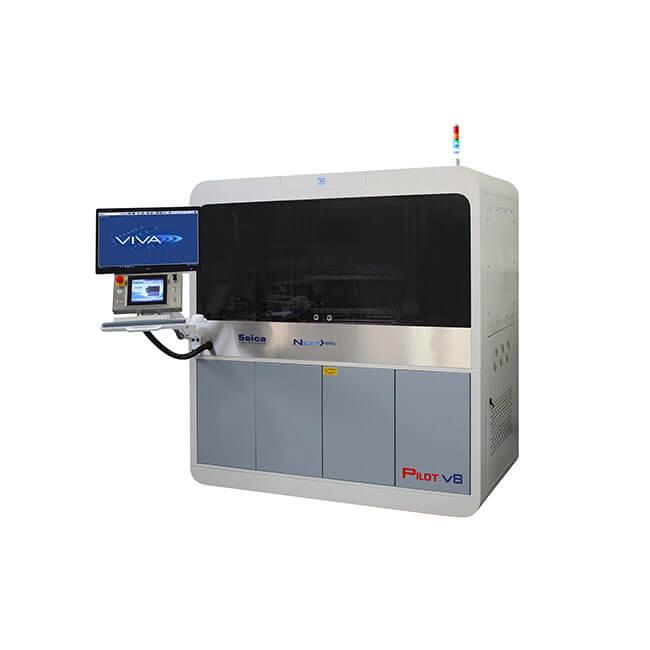

Pilot V8 Flying Probe Tester Vertical Dual-Side with 8 Flying Test Heads

Temperature Range：25°C ± 10°C
Board Size： Board Size (610 x 540) mm (24" x 21.25") Manual
Minimum Board Thickness ：5 mm (0.19") Manual /3mm (0.18”) Automatic
Minimum Pad Size ：50 μm (2 mil)

BASIC INFO

Pilot V8 Flying Probe Tester Vertical Dual-Side with 8 Flying Test Heads

Pilot V8 Next series represents the latest frontier in flying probe test technology, it is the complete solution for those who want maximum performance: the highest test speed, low tomedium volume, test coverageand flexibility, for prototyping, manufacturing,or repairing any type of board. lts vertical architecture is the optimum solution for probing both sides of theUUT simultaneously.

Product Description

The Pilot V8 Next series represents an important technological innovation in two-sided flight probe testing, overcoming the inherent limitations of horizontal systems.

Its vertical architecture is a solution that probes both sides of the UUT simultaneously. This increases test throughput and flexibility, while ensuring fast, accurate, reliable and repeatable sounding, and full availability of all mobile resources for testing UUTs.

Test performance:

-Online testing

-Functional test

-Power-on function test

-OTPN (One Touch Per Net) with Fnode to detect short circuit open circuit and node impedance

– OPENFIX

-On board programming

-Boundary Scan

-Infrared thermal scanning

-LED test

-FLYSTRAIN (real-time)

-Laser Warp Compensation
