Panasonic VM102 Pick and place machine

speed: 32,100 cph
accuracy：30um
range:01005 ~ 150 x 25 x 28
PCB Dimensions (mm) - L 50 × W 50 ~ L 330 × W 250 (Single-lane)

BASIC INFO

Panasonic VM102 Pick and place machine

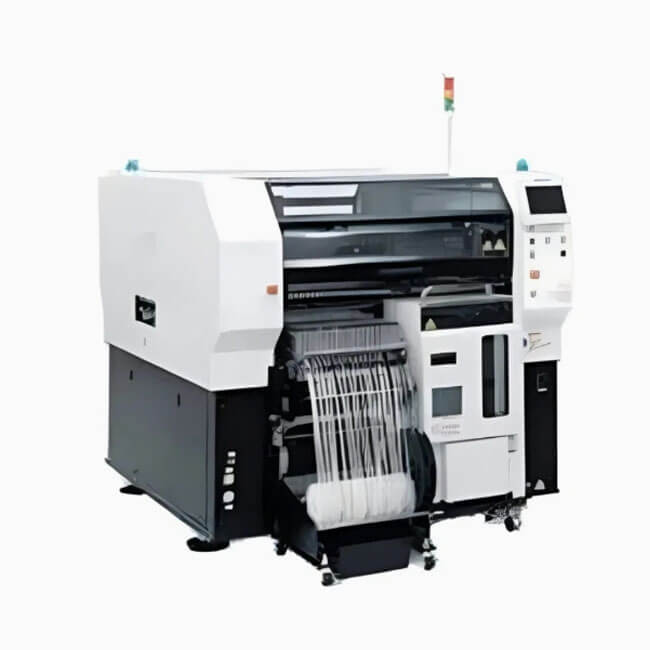

The VM102 is based on the AM100 platform, but in a more compact form, leveraging the vaunted 14NH & up to four 20 slot feeder carts/160 8mm inputs, with an output of 32,100 CPH, accuracy of 30um in a 1.52m long / 3.14m footprint.

VM series models share common multi-recognition cameras, feeder carts, feeders, tray towers, and nozzles.
These series can make up lines with common models or blended to offer maximum scalability and affordability.
This series of platform is focused on Mid-sized board market suited to produce device, white-goods, medical and automotive products.
The VM series is geared toward applications that require advanced capabilities at an affordable price.
The VM102 is based on the AM100 platform, but in a more compact form, leveraging the vaunted 14NH & up to four 20 slot feeder carts/160 8mm inputs, with an output of 32,100 CPH, accuracy of 30um in a 1.52m long / 3.14m footprint
High output of up to 32.1k CPH, as well as odd-form capability with stackable stick feed support, 100N placement force and Pin-in-Paste lighting •
All-in-one placement head with range from 01005 ~ 150 x 25 x 28 •
Can support feeders on front only, or front and rear locations •
Compatible with Panasonic intelligent feeders & nozzles

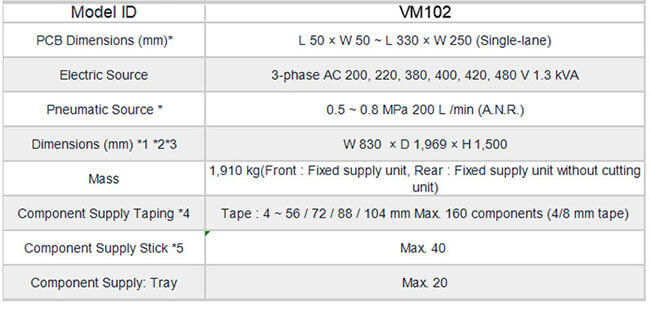

PCB Dimensions (mm) - L 50 × W 50 ~ L 330 × W 250 (Single-lane)
Electric Source - 3-phase AC 200, 220, 380, 400, 420, 480 V 1.3 kVA
Pneumatic Source - 0.5 ~ 0.8 MPa 200 L /min (A.N.R.)
Dimensions (mm) * - W 830 [*2] × D 1,969 [*3] × H 1,500 [*1] Mass - 1,910 kg (Front : Fixed supply unit plus tray, Rear : Fixed supply unit without cutting unit)
